Written by Steven on . Posted in Products.

CORAL HANDSAW

CORAL HANDSAW

Professional Coral Tools

Scroll Down to discover

CORAL HANDSAW

Saw blade treated with Anti-corrosion coating.

Handle made with 316L surgical Grade stainess steel.

  • Hits: 13196

Written by Steven on . Posted in Professional Series.

Floodlights and Gyre Pro

Credit: George Mavrakis and Georgia Aquarium

Maxspect commercial products, providing solutions to your needs

F150W / F300W / F500W

F200W / F400W / F600W

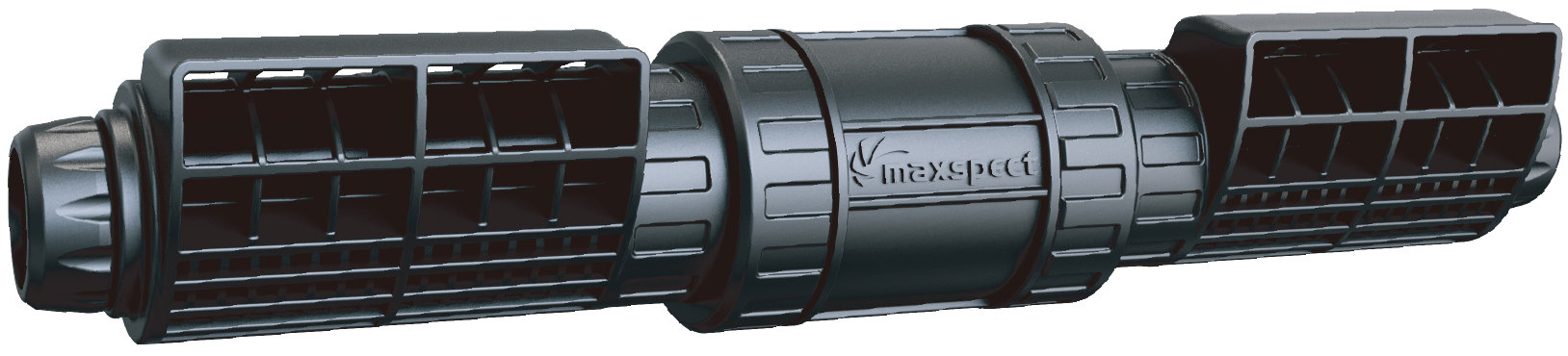

Gyre Pro XFP1400

Engineering Cases

Click on the photo for details

Enhanced coral growth and coloration under Maxspect LED light

Maxspect LED is designed to provide all ranges of color spectrum required by corals and plants to enhance their growth rate, improve their coloration and at the same time giving your aquarium the most aesthetically pleasing combination of colors.

  • 2010/6/20
  • 2010/7/4
  • 2010/9/13
  • 2011/1/16
  • 2011/1/25
  • 2011/1/29
  • 2011/3/13
  • 2011/4/10
  • 2011/6/12
  • 2011/7/31
  • 2011/12/6
  • 2012/1/29

Maxspect commercial products, providing solutions to your needs

The Maxspect commercial floodlights come with six different models: F150W, F300W, F500W, F200W, F400W & F600W.

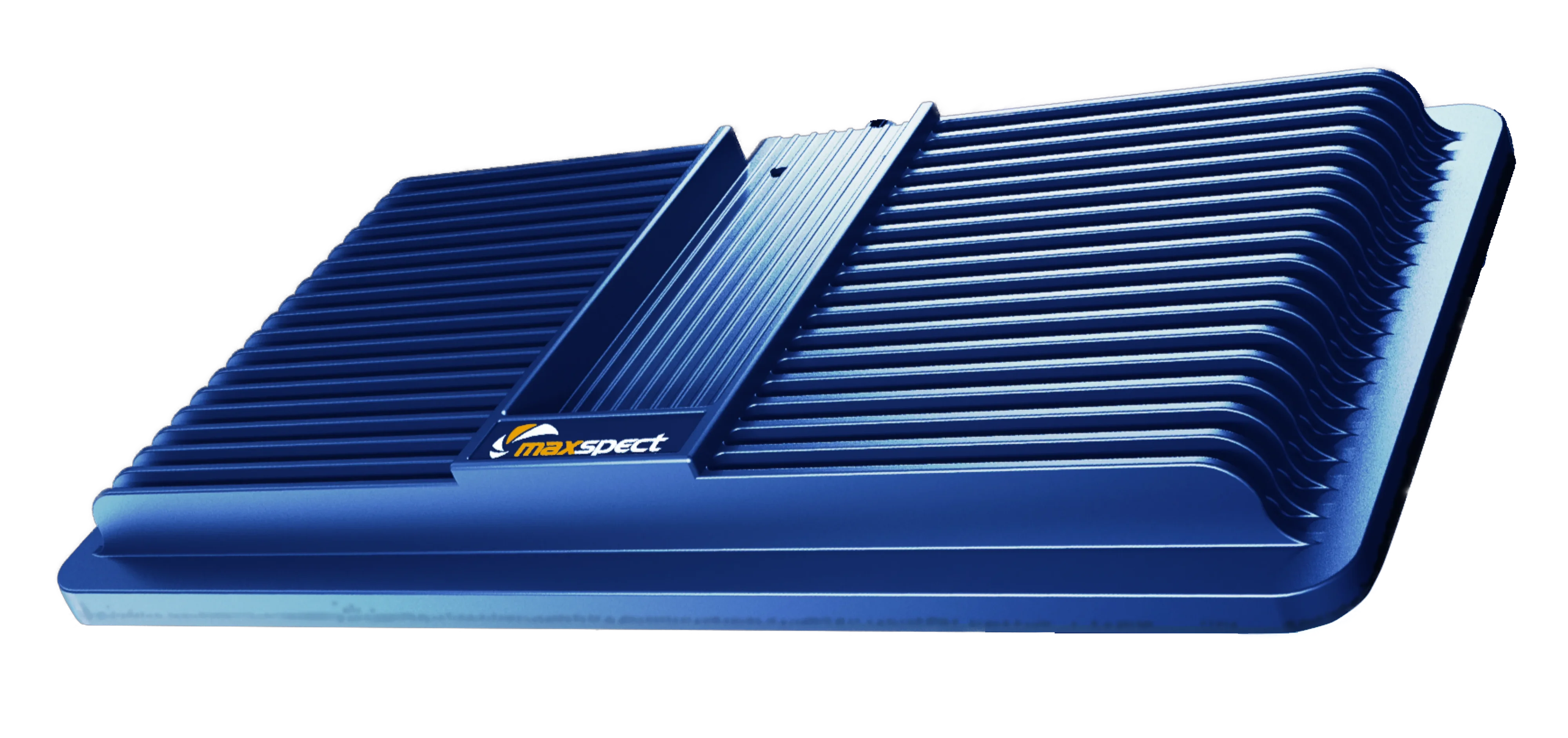

Design Highlights of the F150W / F300W / F500W Commercial Floodlight

  • Overclocking triple pure copper heat dissipation technology: larger heat dissipation area for faster cooling, effectively extending the lifespan of the lighting fixture.
  • Adjustable bracket for multi-angle support, allowing freedom to change the illumination angle.

  • F 150 W Wave 1

  • F 150 W Wave 2

  • F 150 W Wave 3

  • F 150 W Wave 4

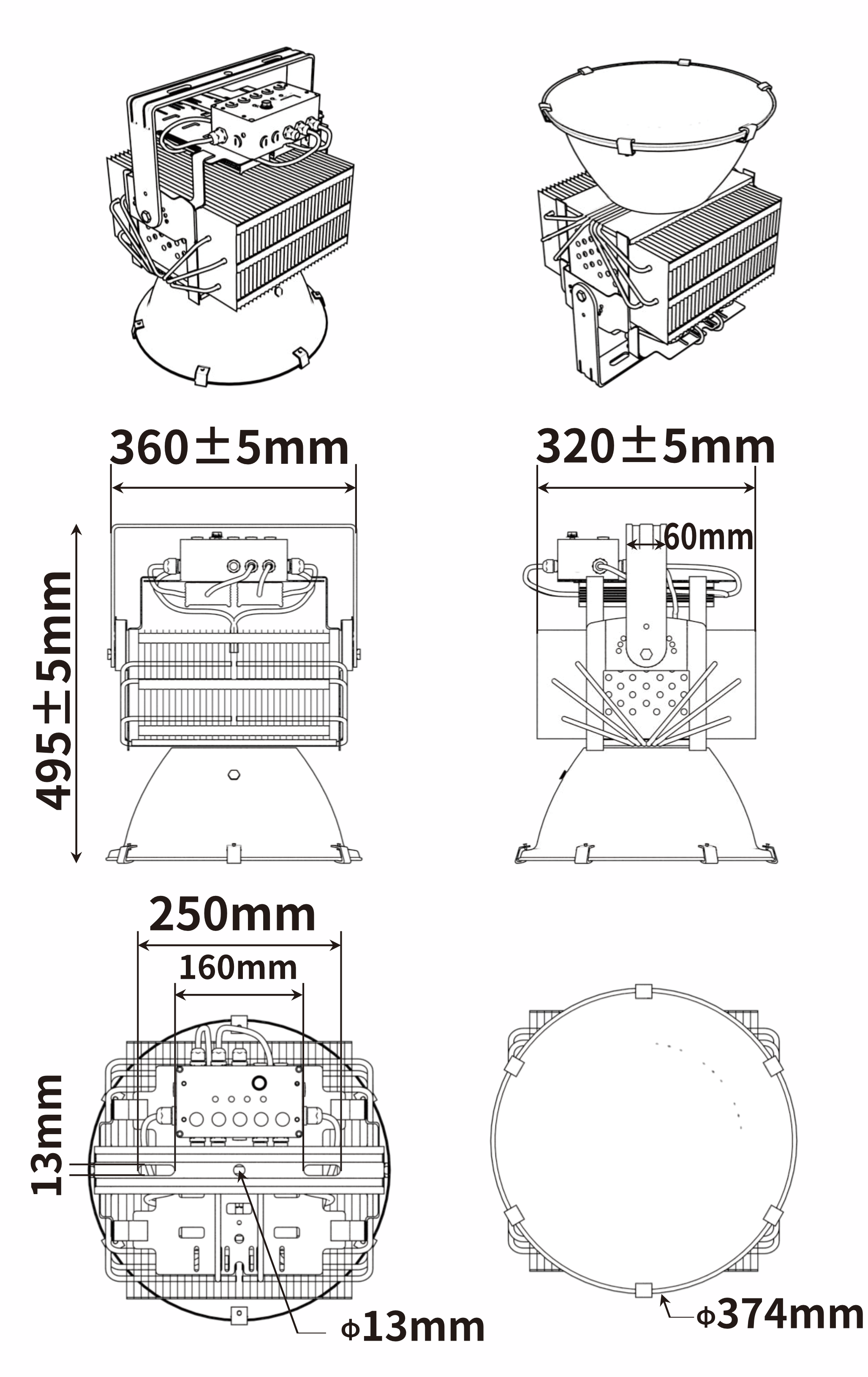

Actual data presentation for F500W

F500W-14000k AAI Figure

  • F500W 25DEG

    Note: The Curves indicate the illuminated area and the average illumination when the luminaire is at a different distance

  • F500W 60DEG

    Note: The Curves indicate the illuminated area and the average illumination when the luminaire is at a different distance

  • F500W 100DEG

    Note: The Curves indicate the illuminated area and the average illumination when the luminaire is at a different distance

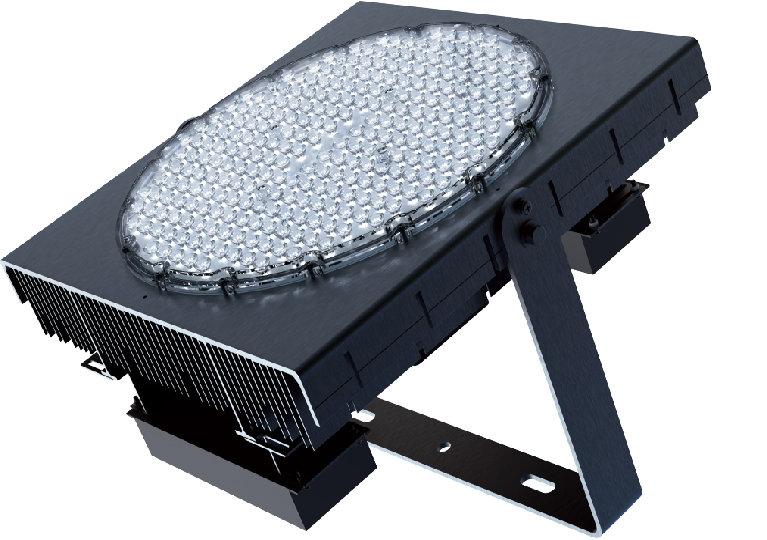

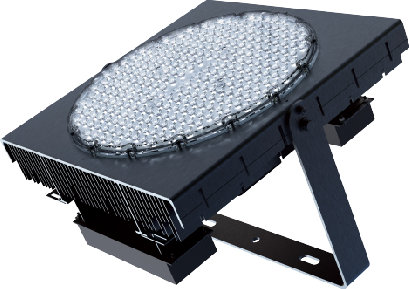

Design Highlights of the F200W / F400W / F00W Commercial Floodlight

  • Slim body design, suitable for installations with limited head space.
  • Adjustable bracket for multi-angle support, allowing freedom to change the illumination angle.

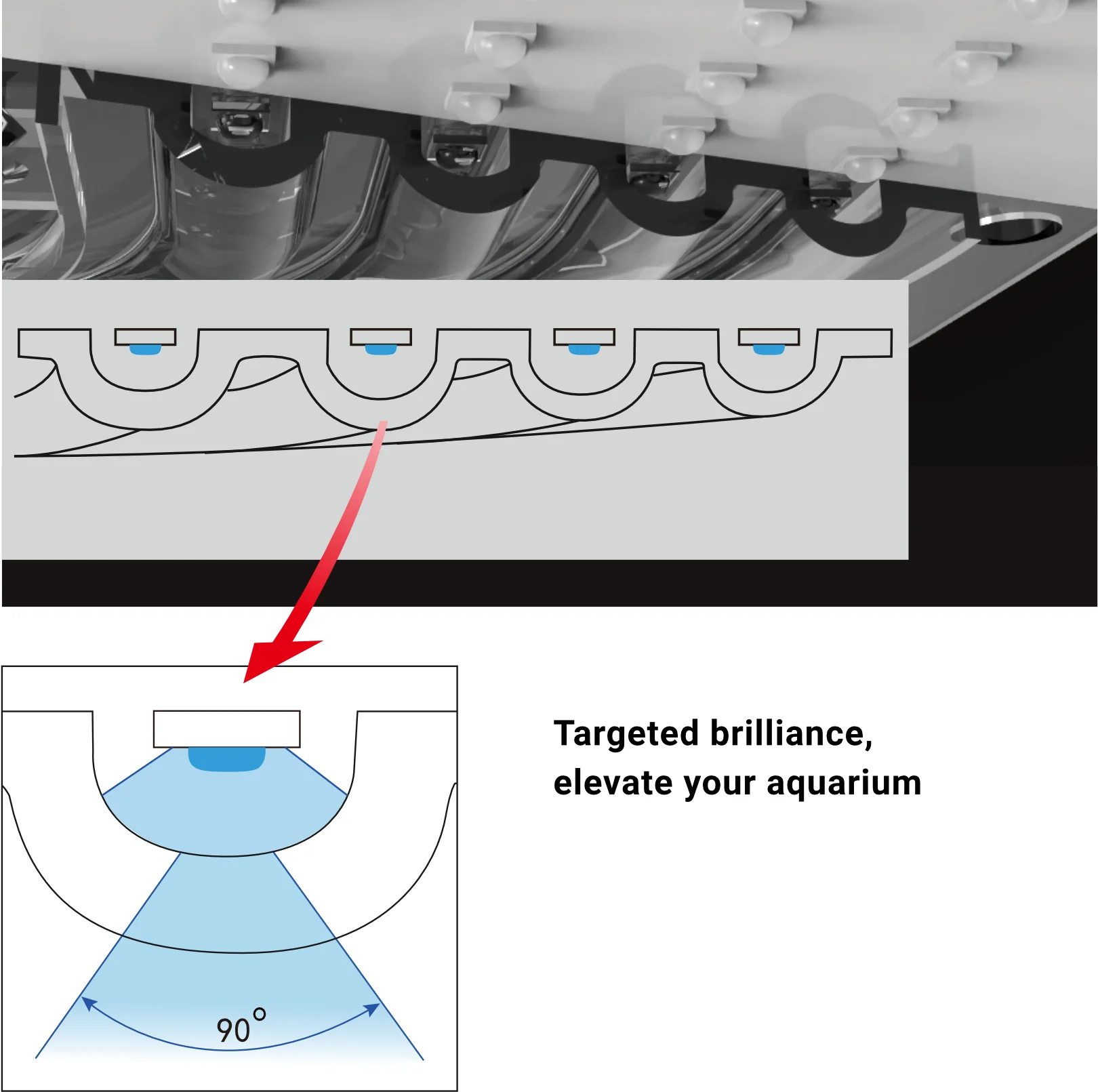

  • Equipped with integrated custom lens for precise targeted illumination.

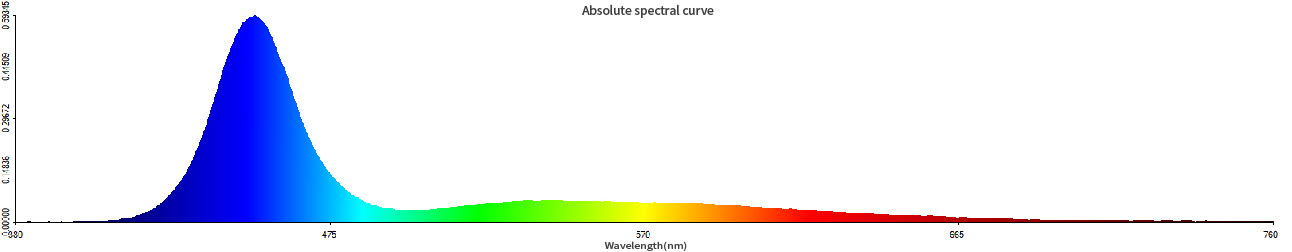

F600W-20000K

F200W PAR Distribution

  • F 200 W 15 D

  • F 200 W 30 D

  • F 200 W 60 D

  • F 200 W 90 D

F400W PAR Distribution

  • F 400 W 15 D

  • F 400 W 30 D

  • F 400 W 60 D

  • F 400 W 90 D

F600W PAR Distribution

  • F 600 W 15 D

  • F 600 W 30 D

  • F 600 W 60 D

  • F 600 W 90 D

Actual data presentation for F400W

  • F 400 W Cone 15

    Note: The Curves indicate the illuminated area and the average illumination when the luminaire is at a different distance

  • F 400 W Cone 30

    Note: The Curves indicate the illuminated area and the average illumination when the luminaire is at a different distance

  • F 400 W Cone 60

    Note: The Curves indicate the illuminated area and the average illumination when the luminaire is at a different distance

  • F 400 W Cone 90

    Note: The Curves indicate the illuminated area and the average illumination when the luminaire is at a different distance

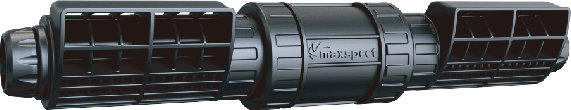

Design for ultra large aquarium

Max Flow rate up to 100 Tons per hour

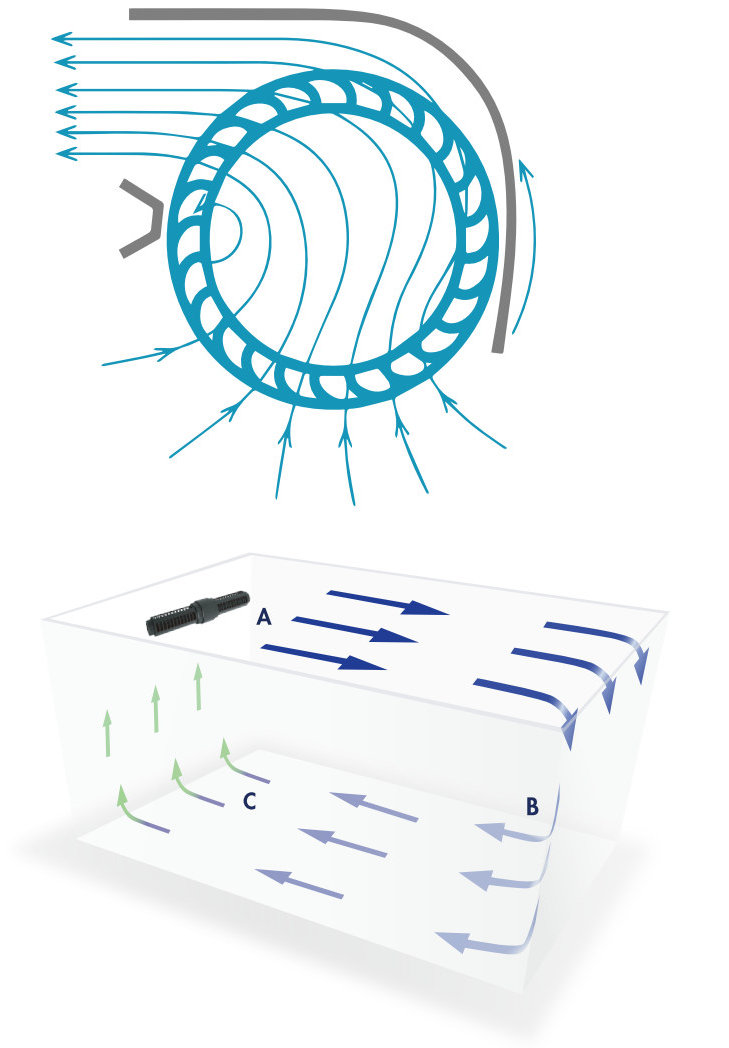

Superior crossflow technology explained

Comparing to traditional powerheads and wavemakers, based on propeller nozzle technology, our latest gyre generator is based on crossflow technology.

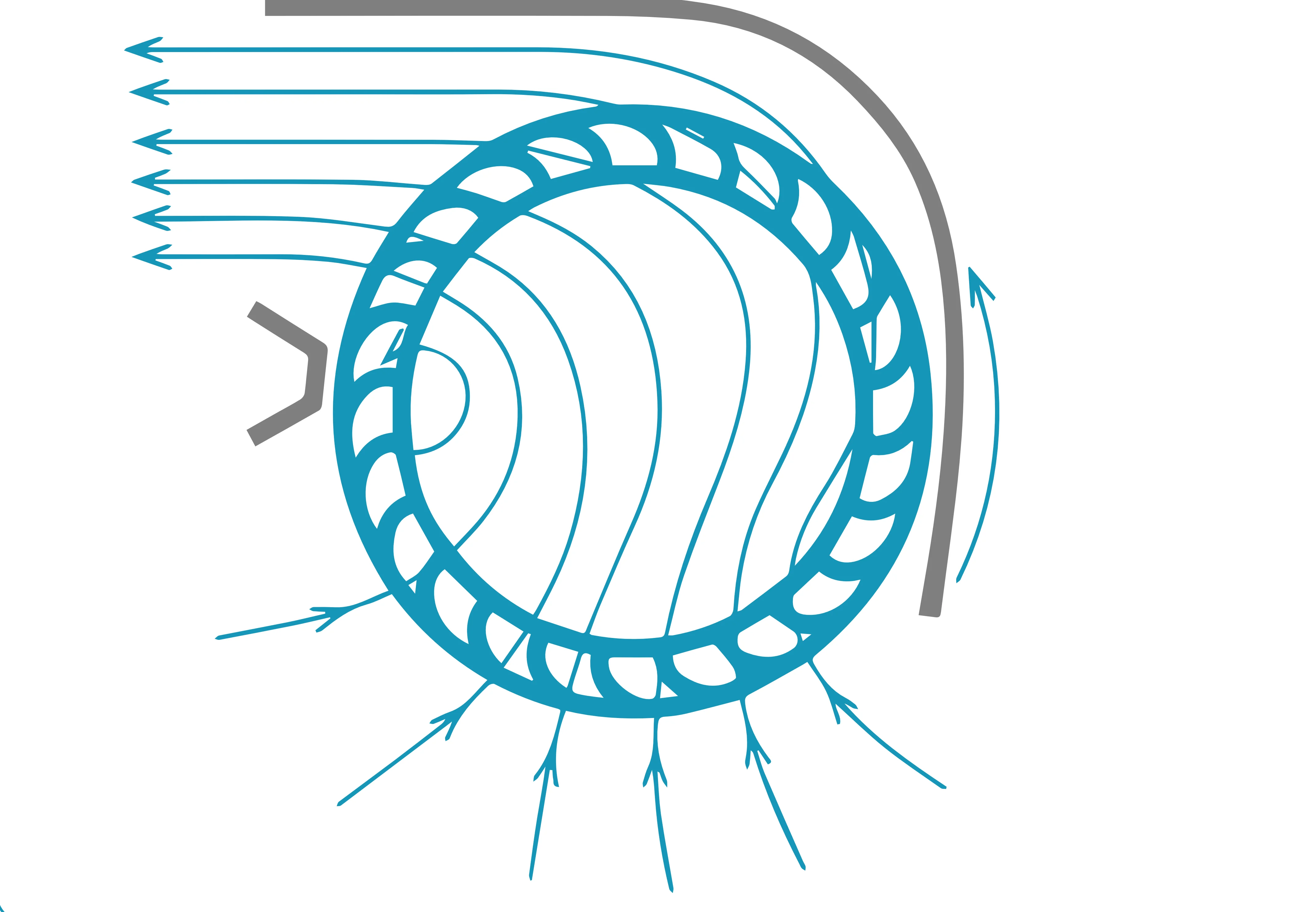

Crossflow technology

A. Virtually no dead spots.
B. Evenly distributed flow rate throughout the entire aquarium.
C. Water bounces back from the other side to create a full circulation, ie. generating "gyre flows".

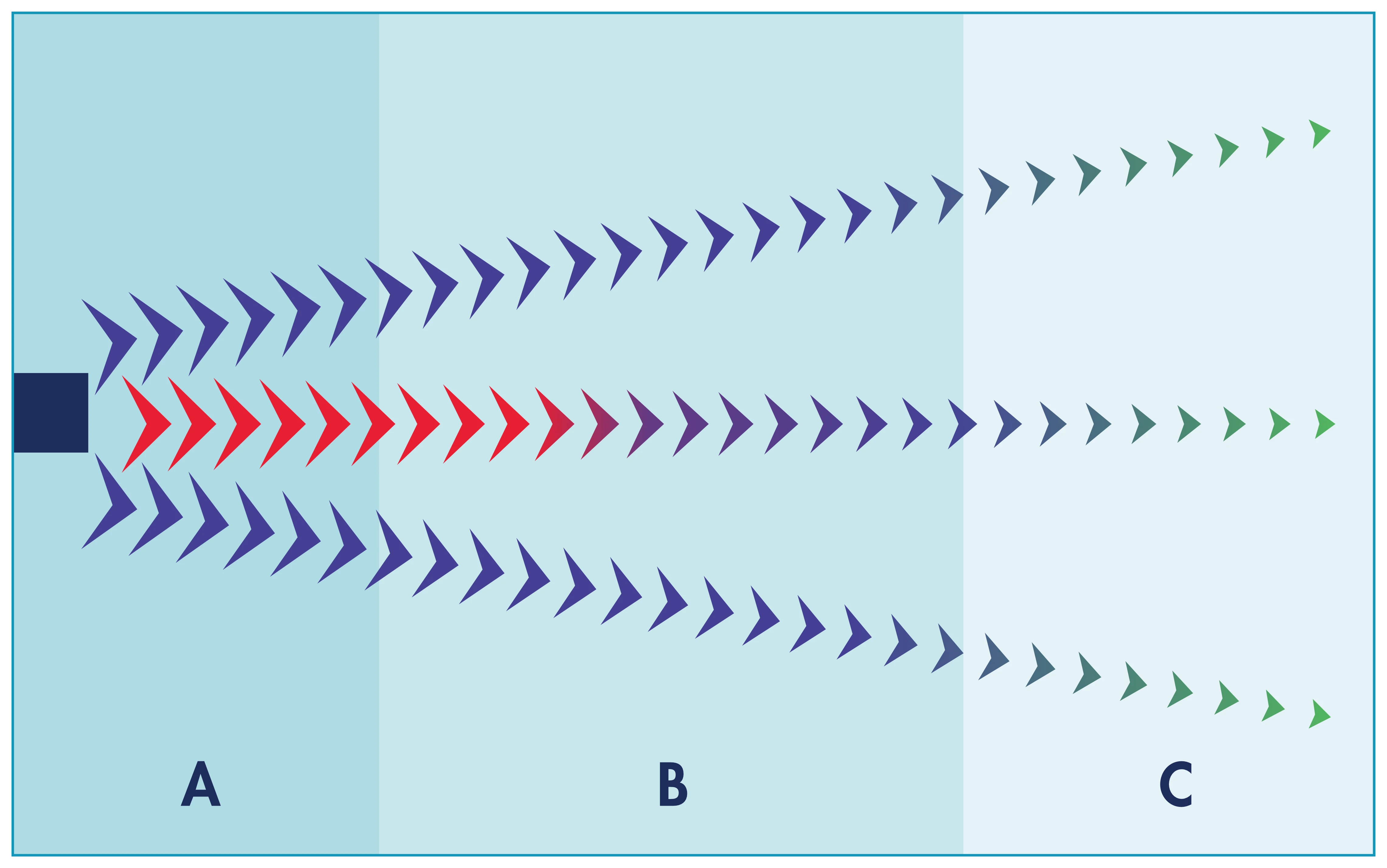

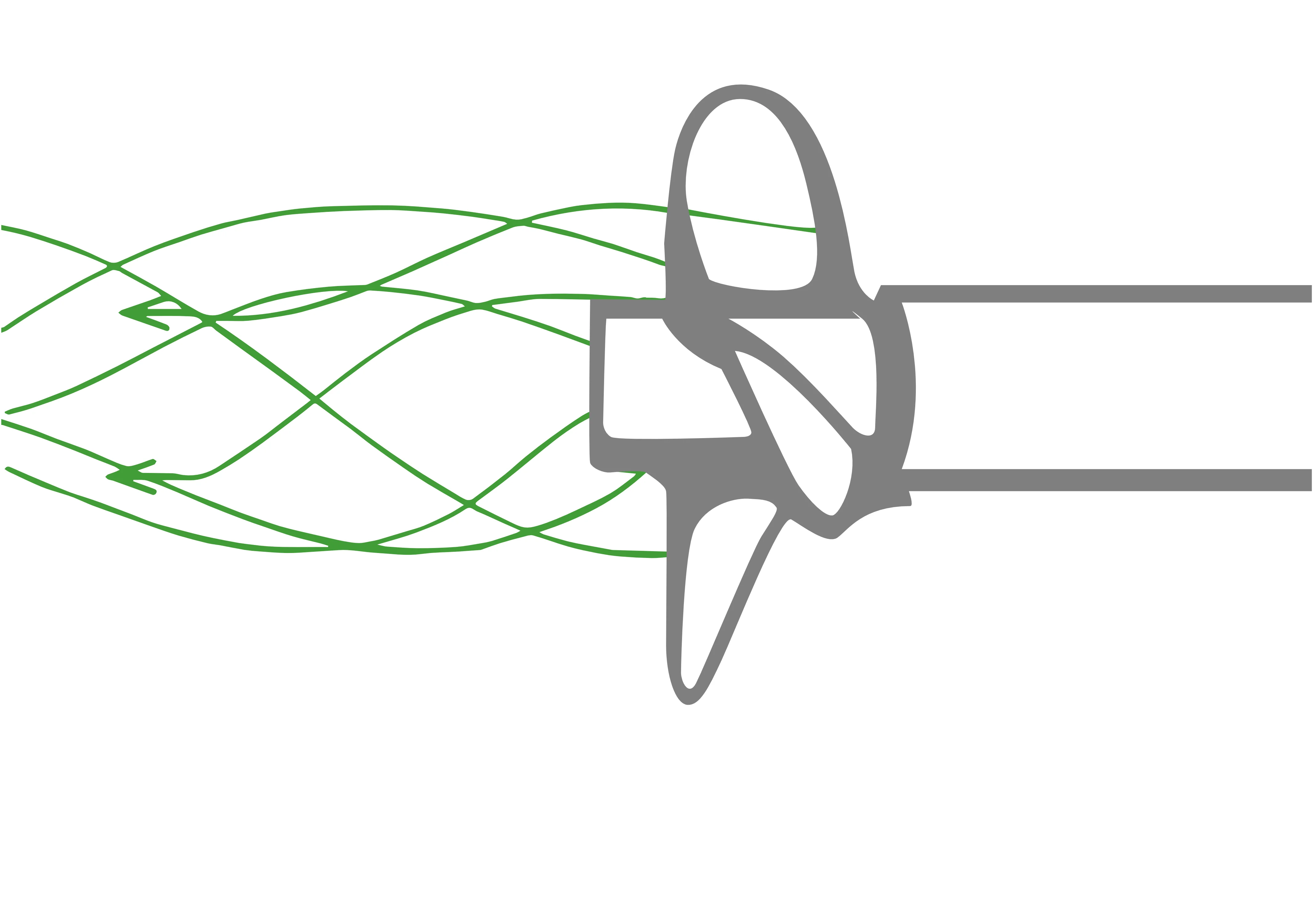

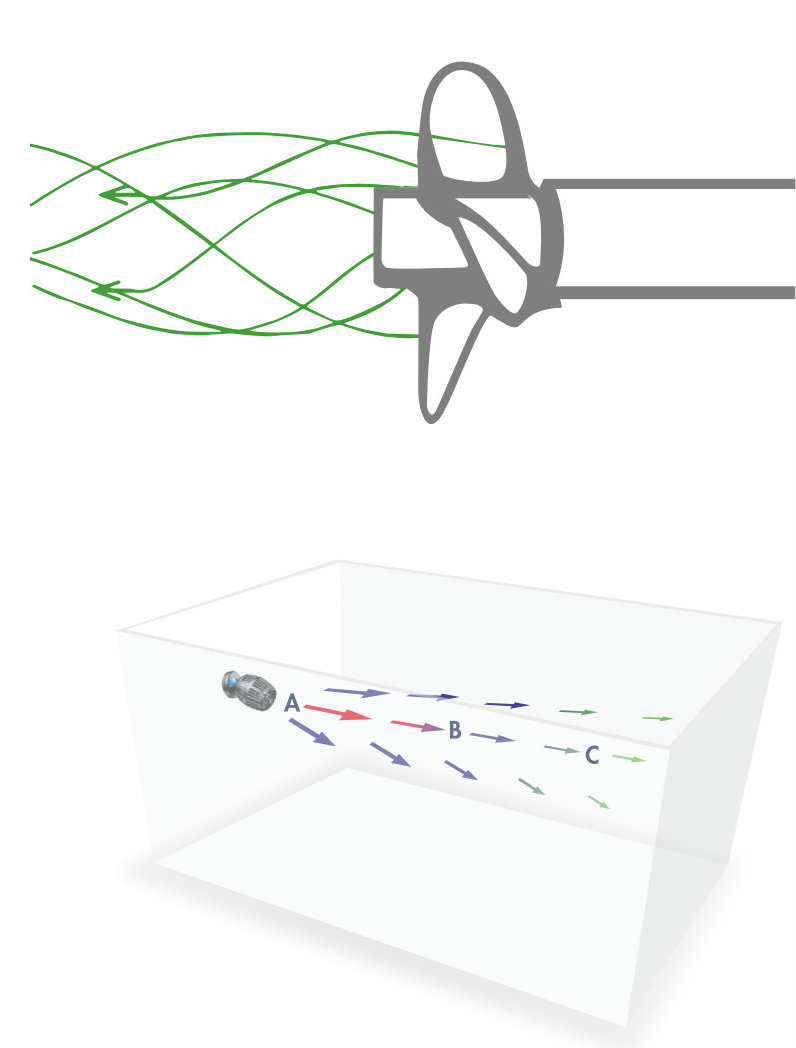

Propeller nozzle technology

A. Dead spots with relatively poor water movement.
B. Very strong flow in the center, making coral placement very difficult.
C. Very weak flow near the other end of the aquarium.

Near-silent operation with sine wave technology

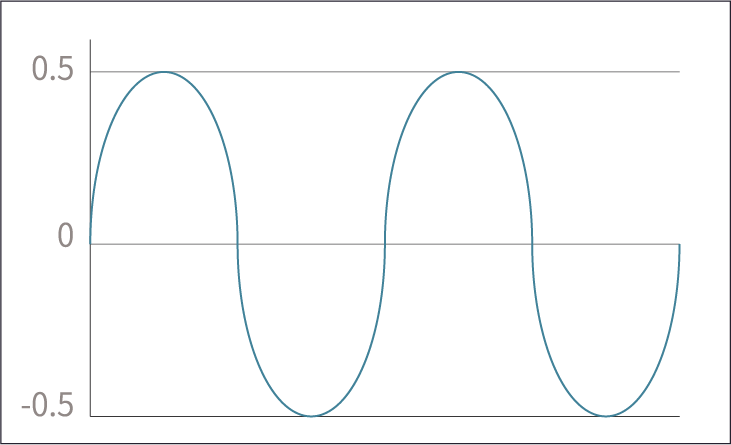

Sine Wave Pattern

Electricity current alternates in a much smoother pendulum while using Sine Wave Technology

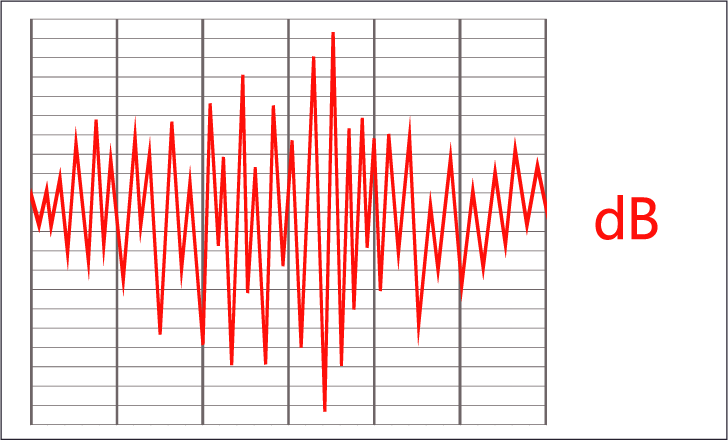

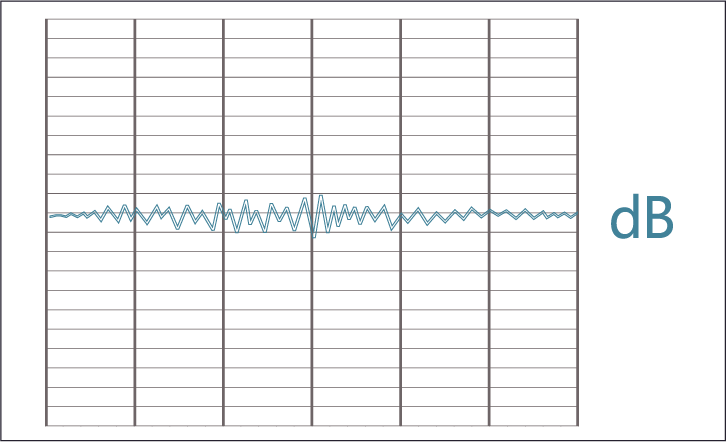

Sin Wave Technology Decibel Level.

Traditional Pattern

Electricity current alternates in a very sharp pattern while using traditional technology

Traditional technology Decibel Level

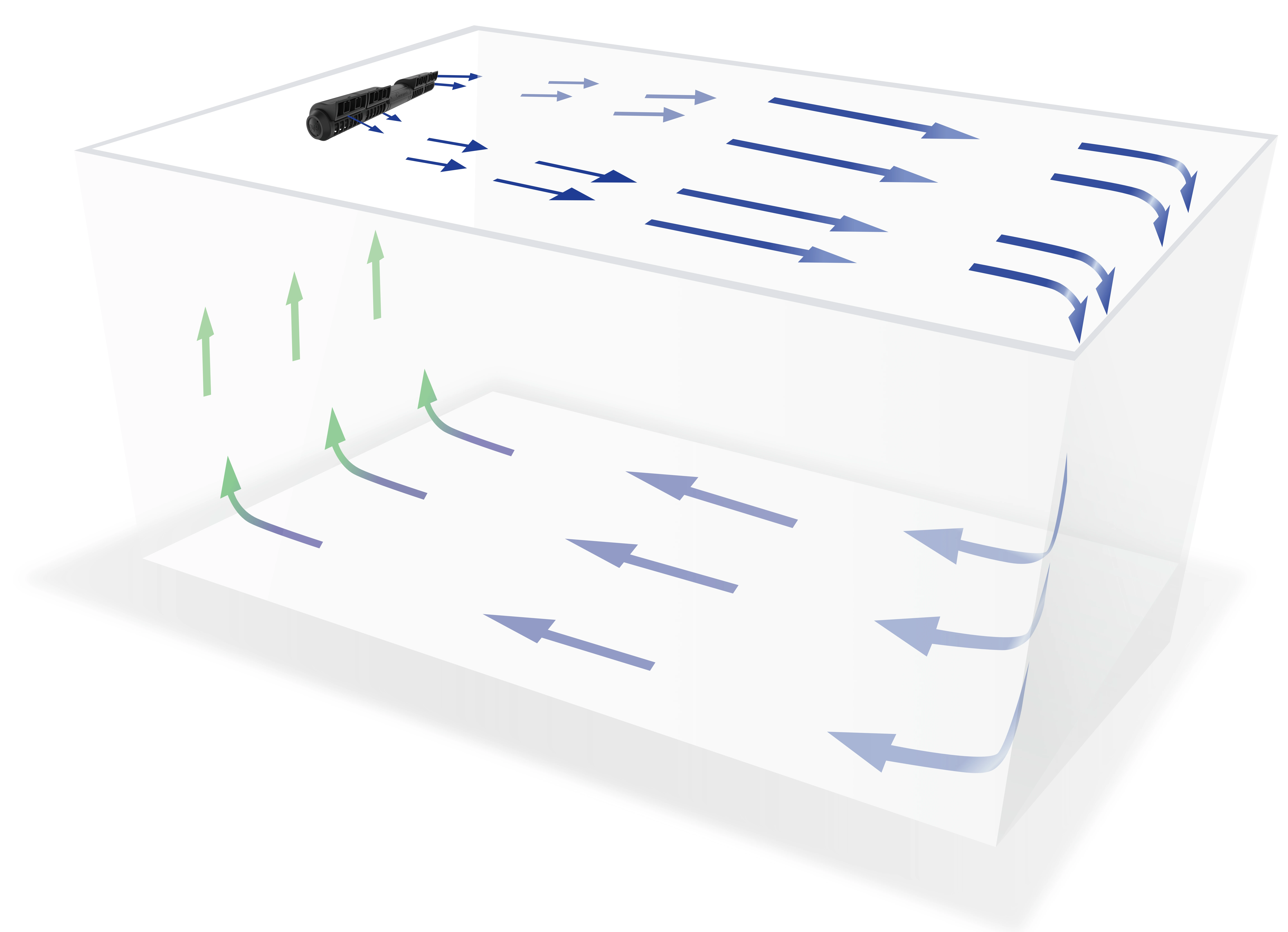

Achieve full circulation within the aquarium with ease

  • Flow 1

  • Flow 2

Circulation technology broadens the wave-making area, maximizing water flow coverage to minimize blind spots within the aquarium. This ensures the actual whole-tank circulation, allowing the aquarium's living lives to experience a simulated natural water flow.

Dimension: 7 x 4 x 1.5m (23' x 13' x 5')

Crossflow technology

  • Only four (4) units of Gyre Pro XFP1400 are needed to circulate this large tank.

Propeller nozzle technology

  • If this tank were powered by traditional pumps, it would require at least twelve (12) units if not more.

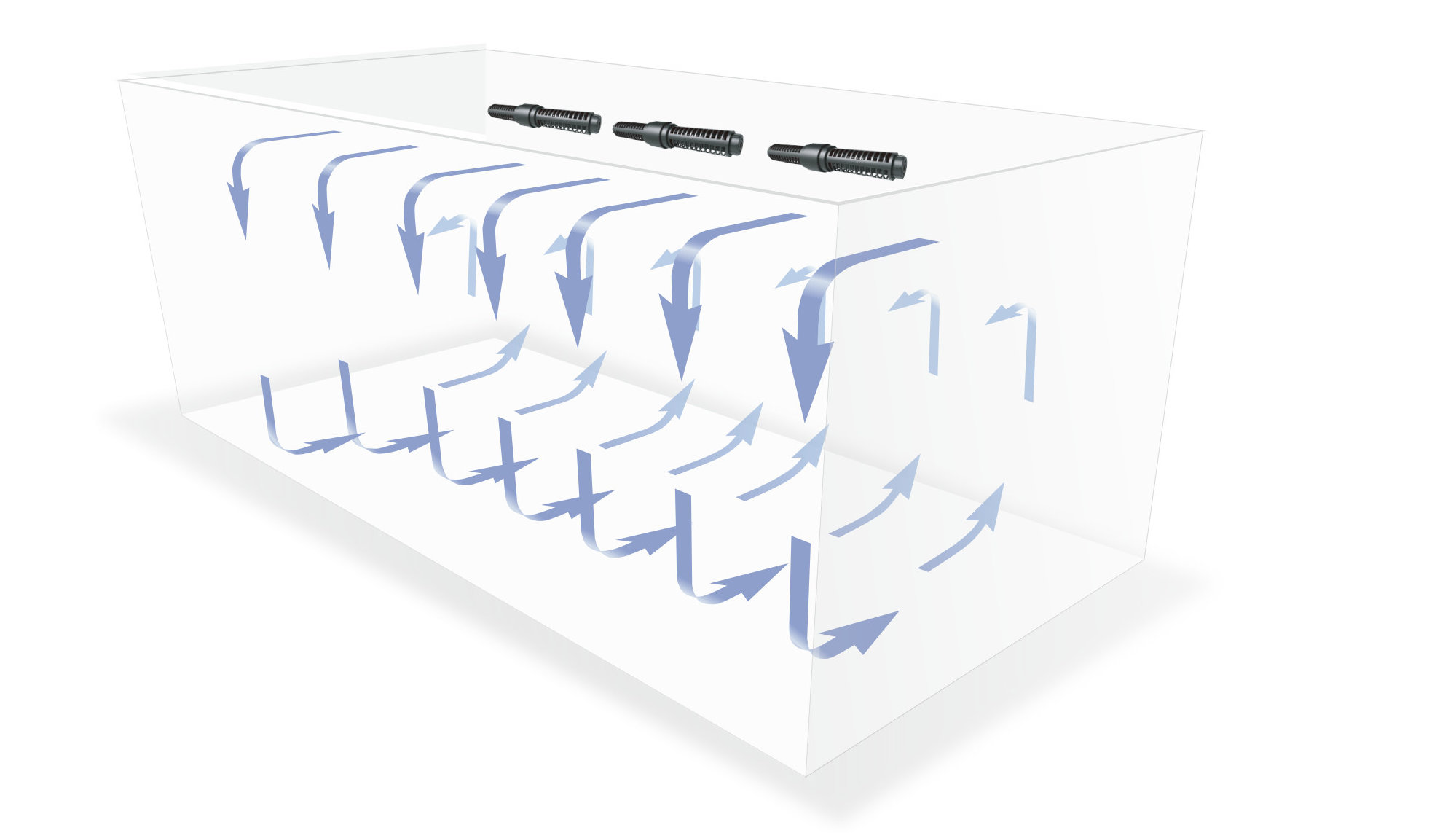

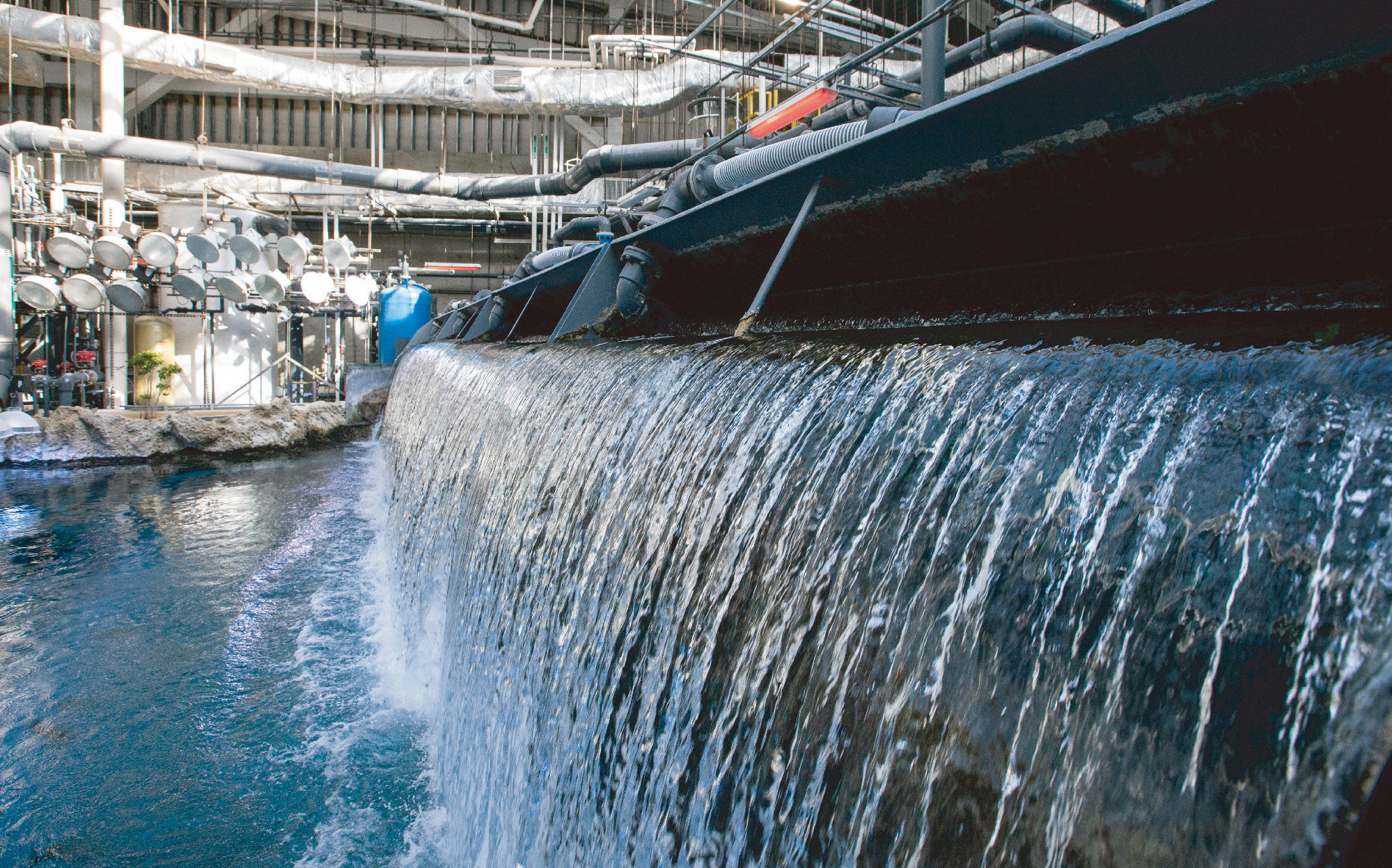

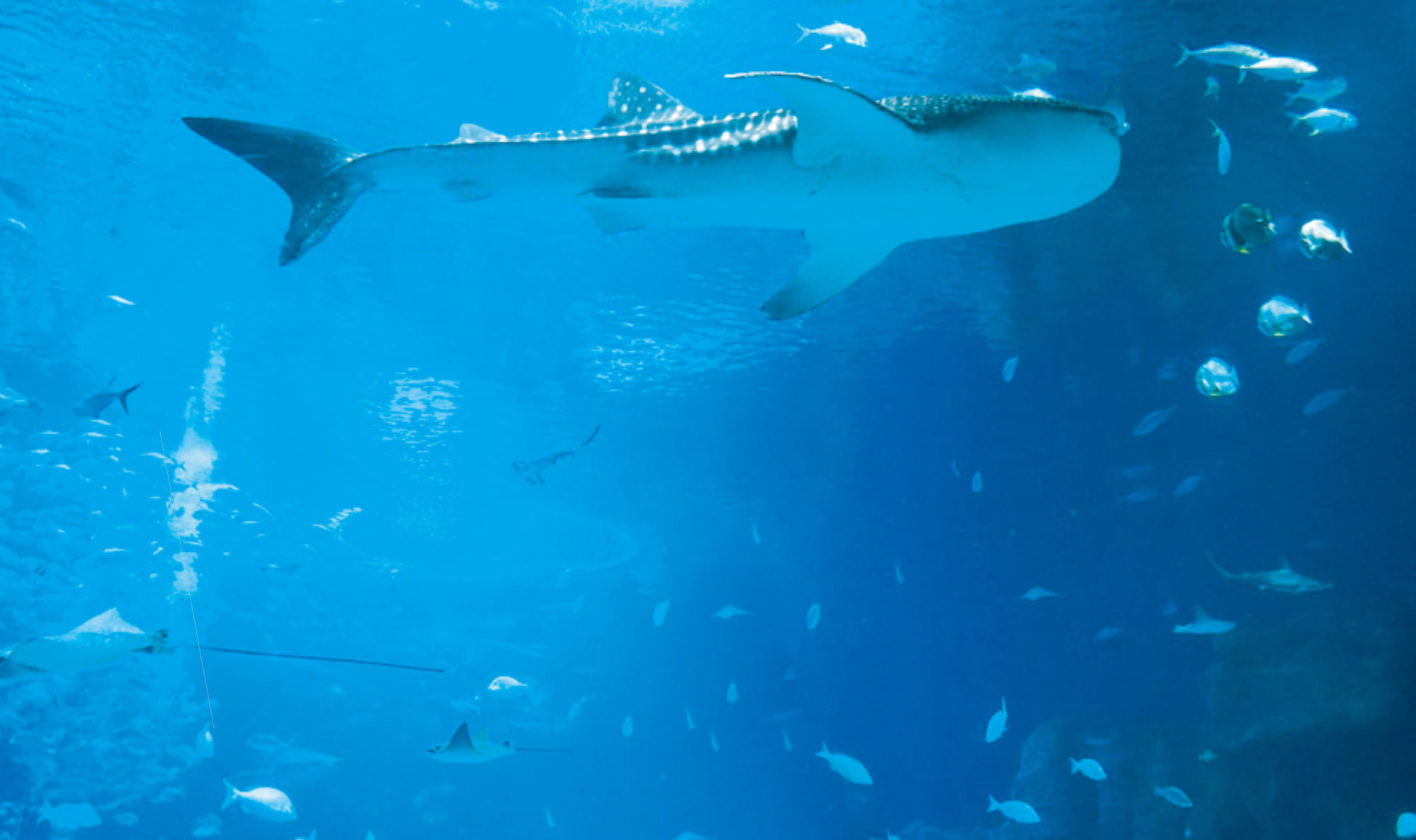

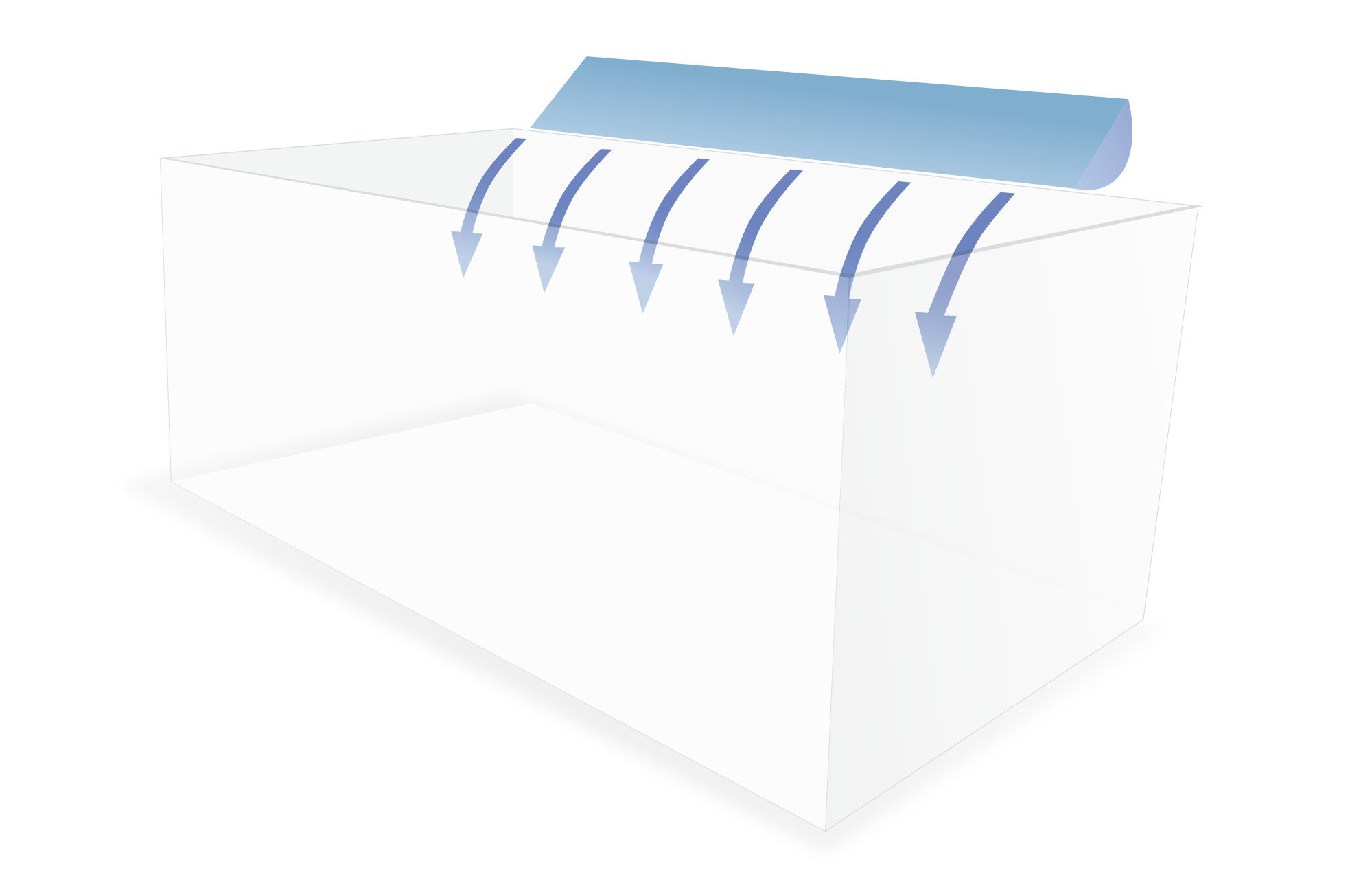

You can now replace your "DUMP BUCKET" systems with gyre pro

Dump Buckets were used for public aquariums to aerate surface water and create a "wave-like" water flow. However it also is a nightmare to maintain, salt creep will form all around the equipment.

Now you can replace your Dump Bucket system with Gyre Pro XFP1400, which can also aerate surface water and create natural wave like water flow, without the hassle of using Dump Buckets.

Adequate water flow is crucial to growth and healthiness of corals and fishes

Water current brings in oxygen-rich water along with nutrients and planktons to corals and fishes, as well as removing waste and organic matter produced by them.

Specifications

For lens and reflector cup selection:

  • Narrower angles result in higher central beam intensity, a smaller focal point, and better light efficiency. Conversely, wider angles correspond to reduced light energy efficiency, though they result in a larger illuminated area.
  • For longer and more distant illumination, a narrower angle is preferable. In other words, as the installation distance above the water surface increases, opting for a narrower angle is recommended.
  • At the same installation height, choosing a narrower angle will result in a correspondingly reduced illumination range.

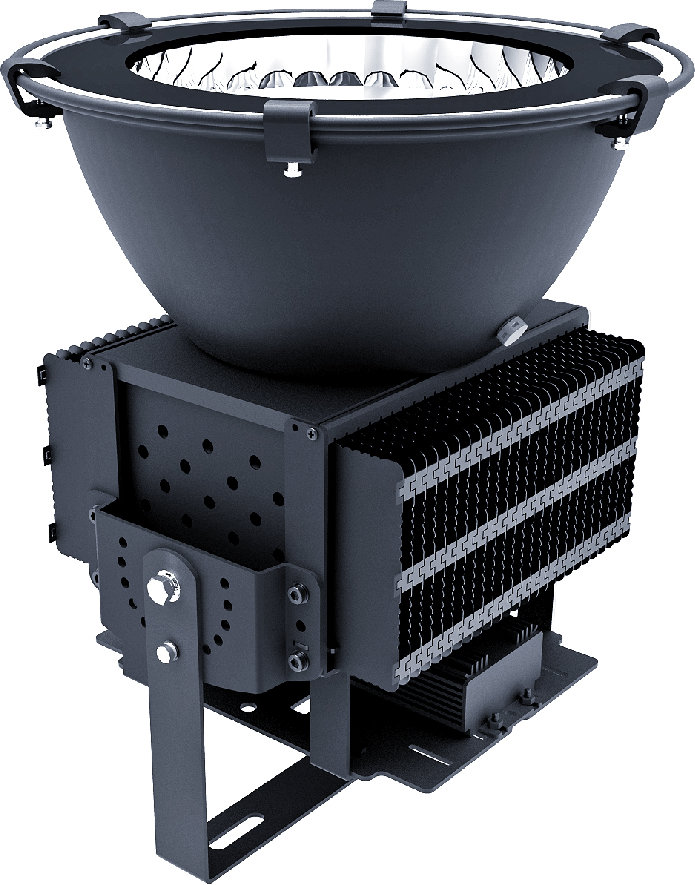

  • F150W

    Reflector cup angle 90° / 60° / 45° / 25°
    Color temperature 7000k / 10000k / 14000k / RGB / Full spectrum
    1 LED channel, individually adjustable
    Wi-Fi controls / DMX controls / 0-10v controls

  • F300W

    Reflector cup angle 90° / 60° / 45° / 25°
    Color temperature 7000k / 10000k / 14000k / RGB / Full spectrum
    2-4 LED channels, individually adjustable
    Wi-Fi controls / DMX controls / 0-10v controls

  • F500W

    Reflector cup angle 90° / 60° / 45° / 25°
    Color temperature 7000k / 10000k / 14000k / RGB / Full spectrum
    2-4 LED channels, individually adjustable
    Wi-Fi controls / DMX controls / 0-10v controls

  • F200W

    Lens angle 15° / 30° / 60° / 90°
    Color temperature 8000k / 11000k / 15000k / 20000k / Full spectrum
    1 LED channel, individually adjustable
    Wi-Fi controls / DMX controls / 0-10v controls

  • F400W

    Lens angle 15° / 30° / 60° / 90°
    Color temperature 8000k / 11000k / 15000k / 20000k / Full spectrum
    2 channels, individually adjustable
    Wi-Fi controls / DMX controls / 0-10v controls

  • F600W

    Lens angle 15° / 30° / 60° / 90°
    Color temperature 8000k / 11000k / 15000k / 20000k / Full spectrum
    2 channels, individually adjustable
    Wi-Fi controls / DMX controls / 0-10v controls

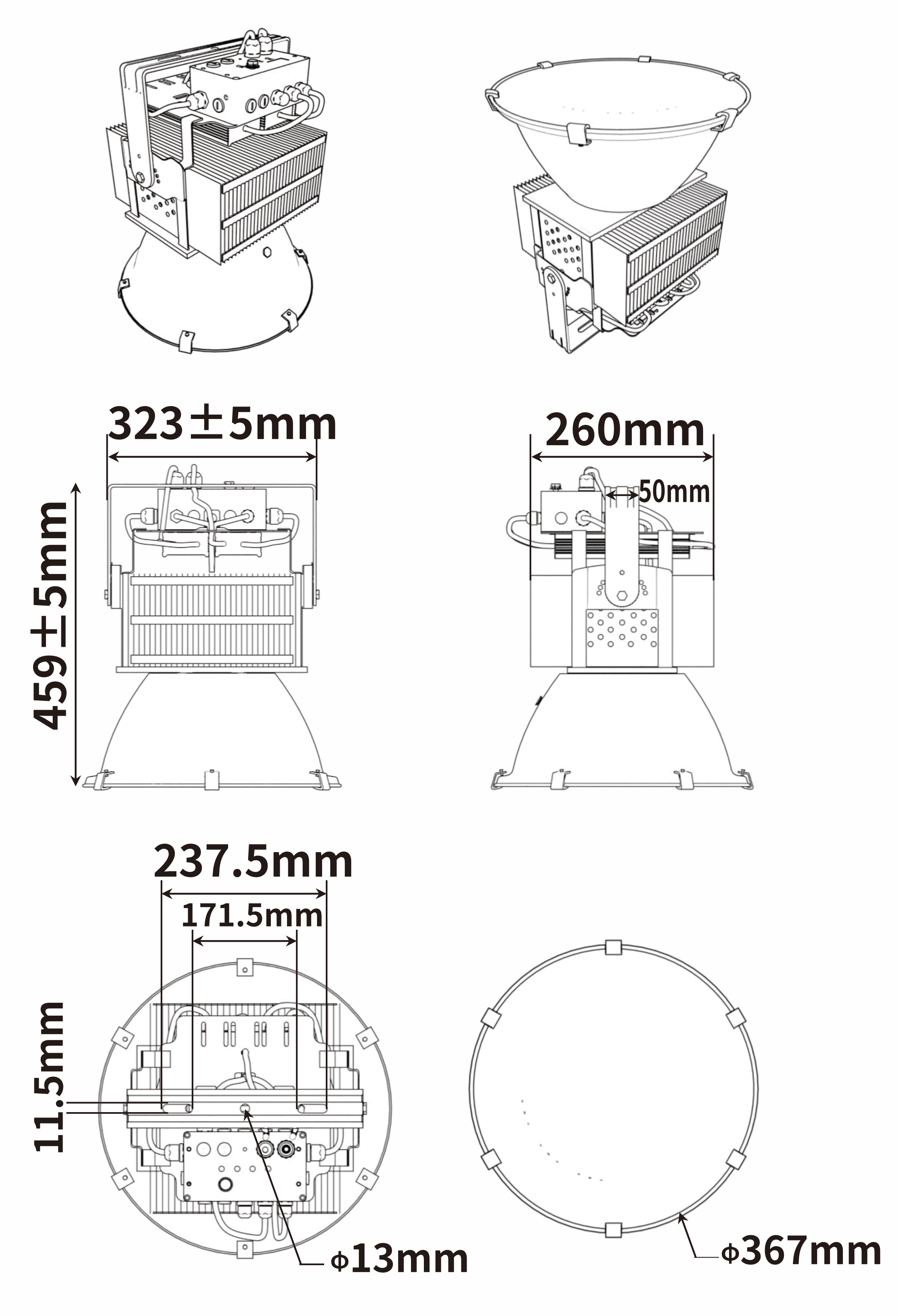

F150W

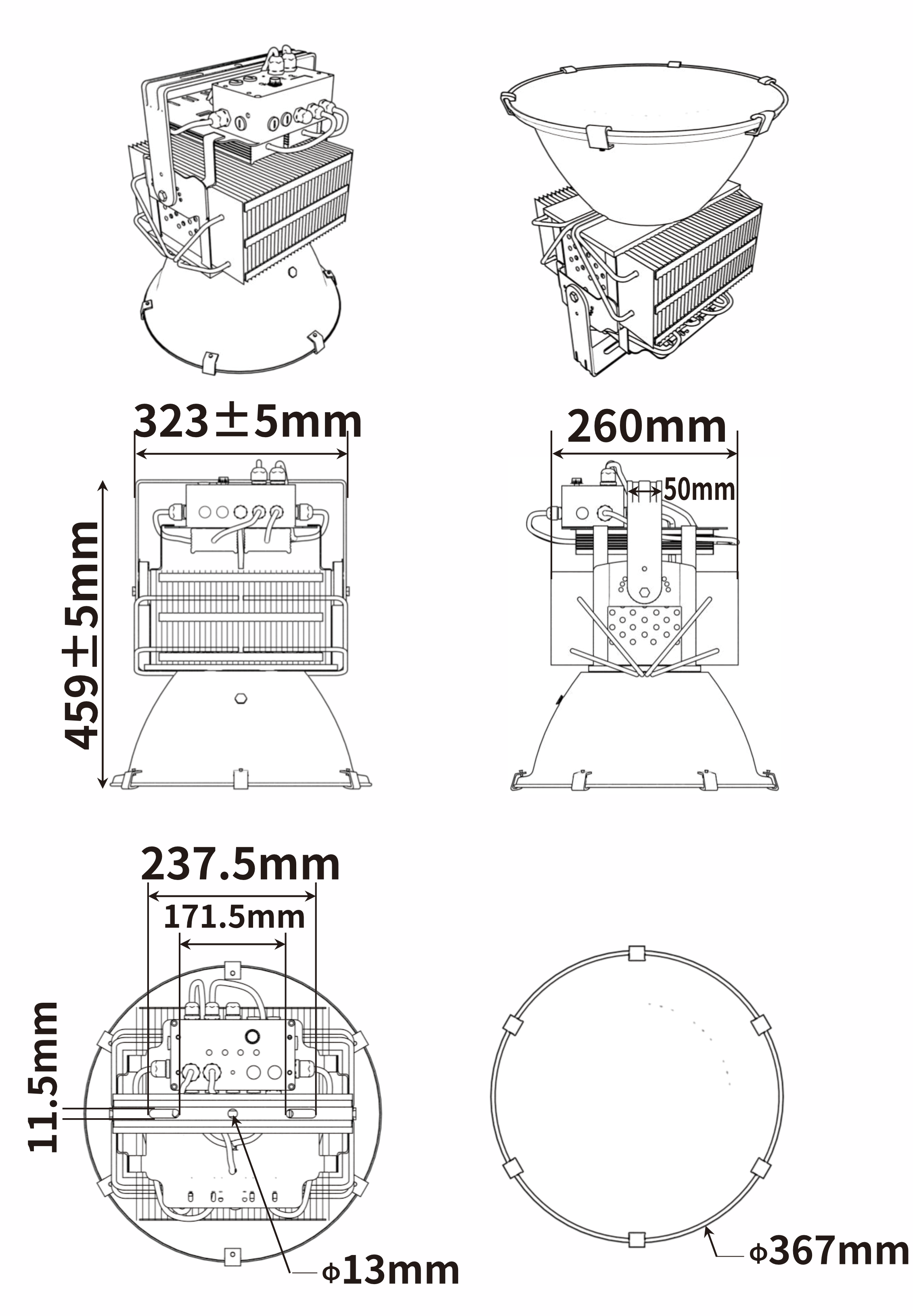

F300W

F500W

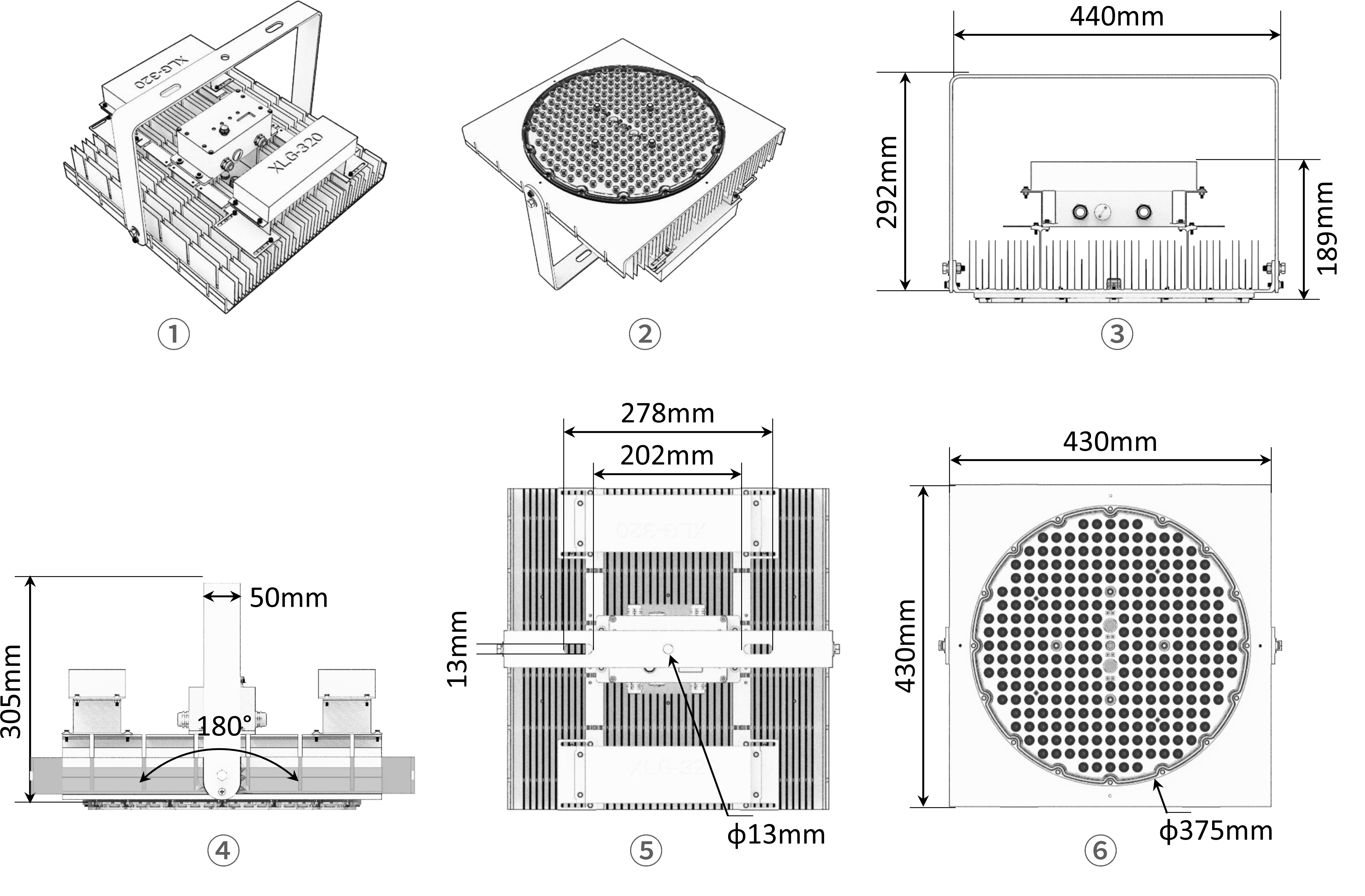

F200W, F400W, F600W

Installation

  • Installation 1

  • Installation 2

  • Installation 3

Light shield and Anti-glare mesh

Suitable for open-top aquariums, effectively controlling the light spot illumination range and enhancing the viewing experience for visitors (additional purchase is required)

  • Only lamp body is included

    You can choose to install the anti-glare mesh or the light shield separately. Alternatively, you have the option to install both the anti-glare and the light shield simultaneously.

XFP1400 Specifications

Water movement mode sample diagram

  • Constant Mode

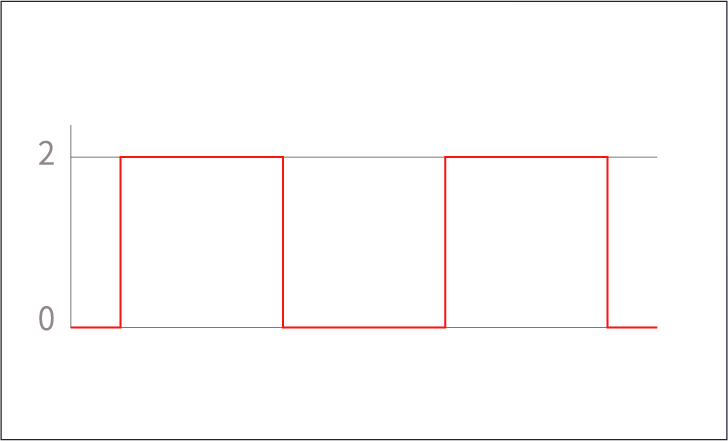

  • Pulsing Mode

Fully programmable 24 hours gyre flow cycle

Input

100-240v 50/60Hz
Output

DC 36V
Power Range

120-450w
Flow Rate

30,000 -100,000l/h
8,000 -26,400 G/h
Velocity

0.5-2.4 m/s
1.6-7.9 ft/s
Weight

7kg / 15.4lbs
Cable

10m / 20m / 30m
33ft / 66ft / 98ft
Depth

10m / 20m / 30m
33ft / 66ft / 98ft

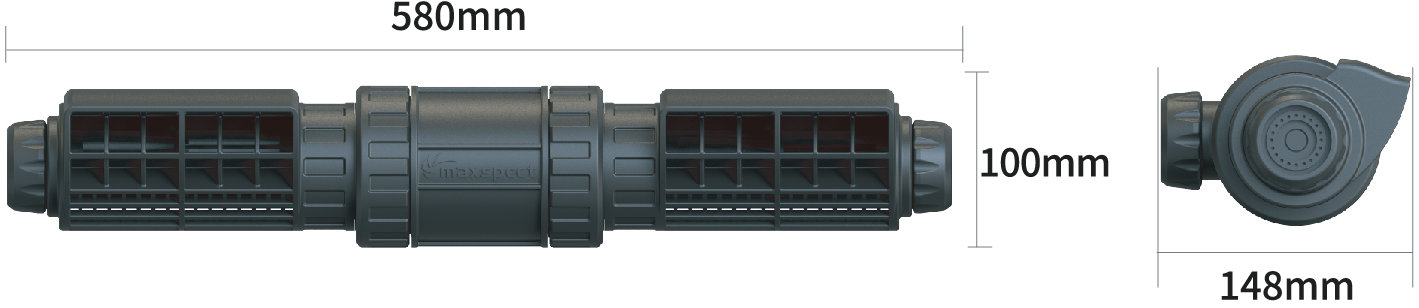

Dimension

580x148x100mm
22.8"x5.8"x3.9"
Input 100 -240v 50/60Hz Weight 7kg/15.4 lbs
Output DC 36v Cable 10m / 20m / 30m
Power Range 120 - 450w 33ft / 66ft / 98ft
Flow Rate 30,000 - 100,000L/H Depth 10m / 20m /30m
8,000 - 26,400 G/H 33ft / 66ft / 98ft
Velocity 0.5 - 2.4 m/s Dimension 580 x 148 x 100mm
1.6 - 7.9 ft/s 22.8" x 5.8" x 3.9"

  • Acrylic bracket solution

  • PVC bracket solution

  • Piping Installation

The Illustration shown above are examples for your reference only and it is not limited to these installation solutions.

The required components are not included in the package, if necessary it needs to be ordered separately and custom made according to the specific case.

Engineering Cases

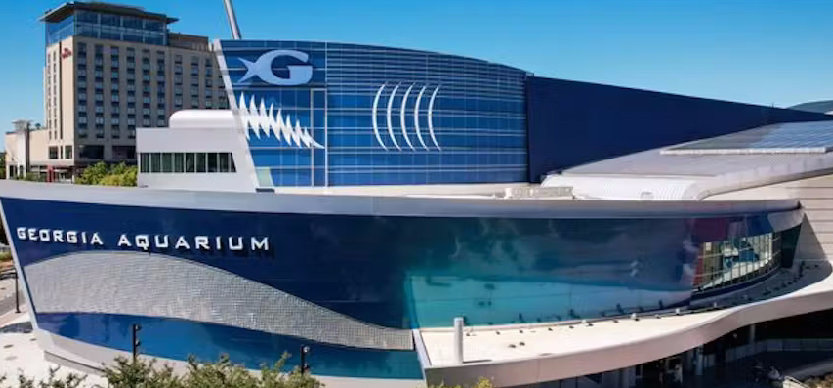

Georgia Aquarium, Atlanta USA

Product Model: F500W-14000K

  • Georgia 1

  • Georgia 2

  • Georgia 3

  • Georgia 4

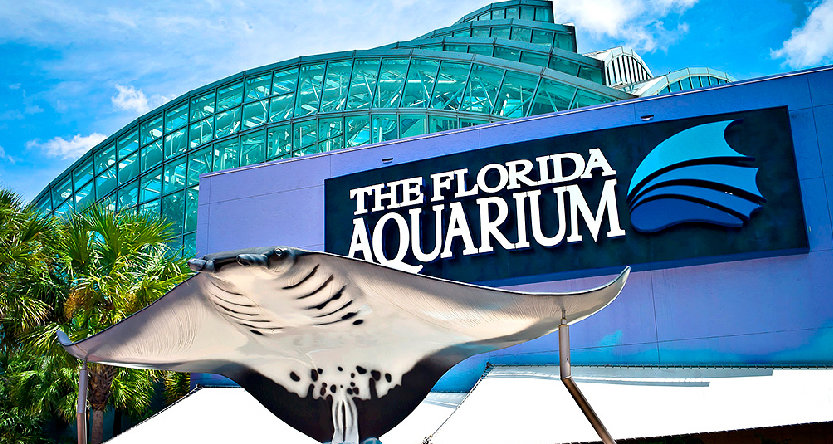

Florida Aquarium, Tampa USA

Product Model: F500W-14000K

  • Florida 1

  • Florida 2

  • Florida 3

  • Florida 4

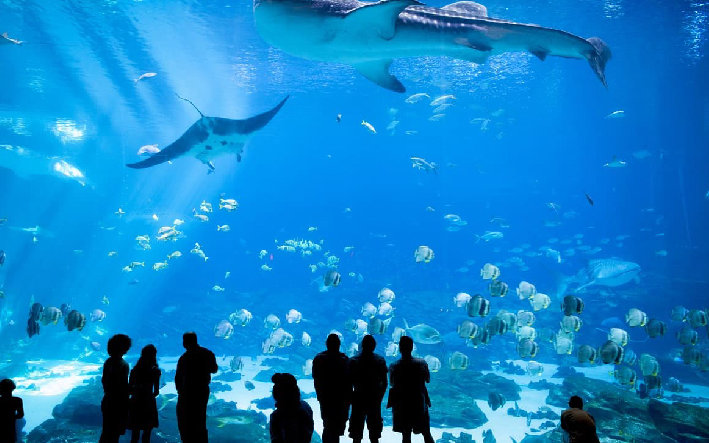

Long Island Public Aquarium, New York USA

Product Model: F500W-14000K

  • Long Island 1

  • Long Island 2

  • Long Island 3

  • Long Island 4

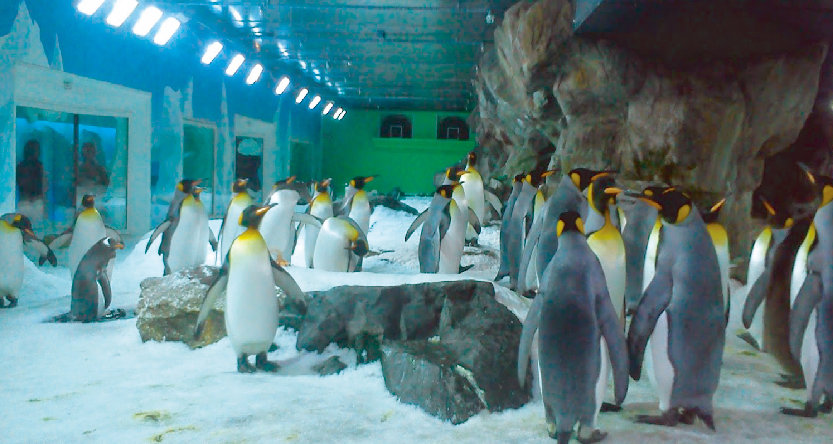

SEA LIFE Kelly Tarlton's Aquarium, Auckland New Zealand

Product Model: F500W-14000K

  • Sea Life 1

  • Sea Life 2

  • Sea Life 3

  • Sea Life 4

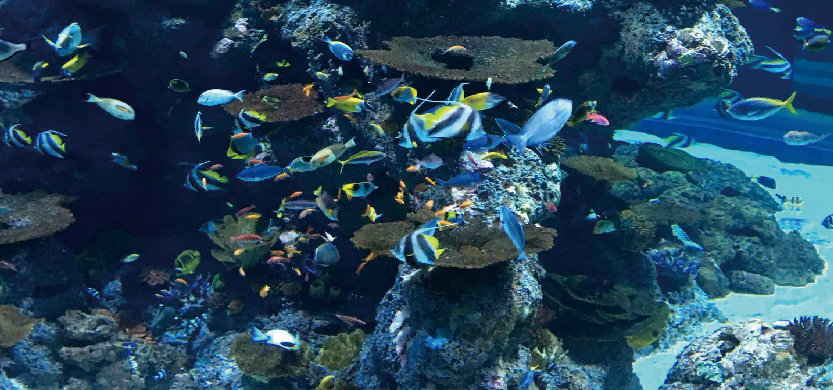

S.E.A Aquarium Marine Life Park, Singapore Cylinder Shaped Coral Reef Tank

Product Model: F300W-14000K

  • SEA Aquarium 1

  • SEA Aquarium 2

  • SEA Aquarium 3

  • SEA Aquarium 4

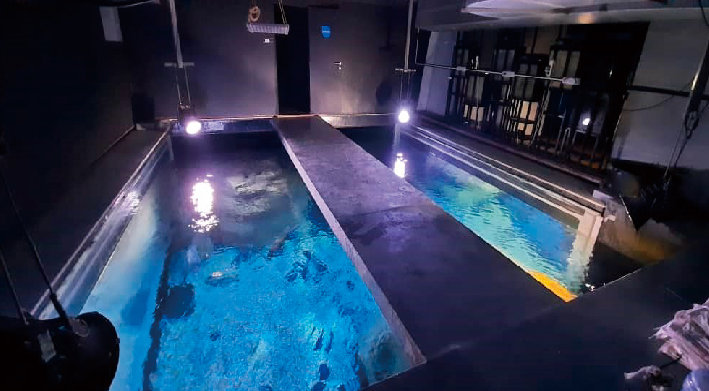

Aquaria Phuket, Phuket Thailand

90% of LED lighting systems are provided by Maxspect

Product Model: F150W-10000K-60°,
F300W-10000K-60°, F500W-14000K-60°

  • Aquaria 1

  • Aquaria 2

  • Aquaria 3

  • Aquaria 4

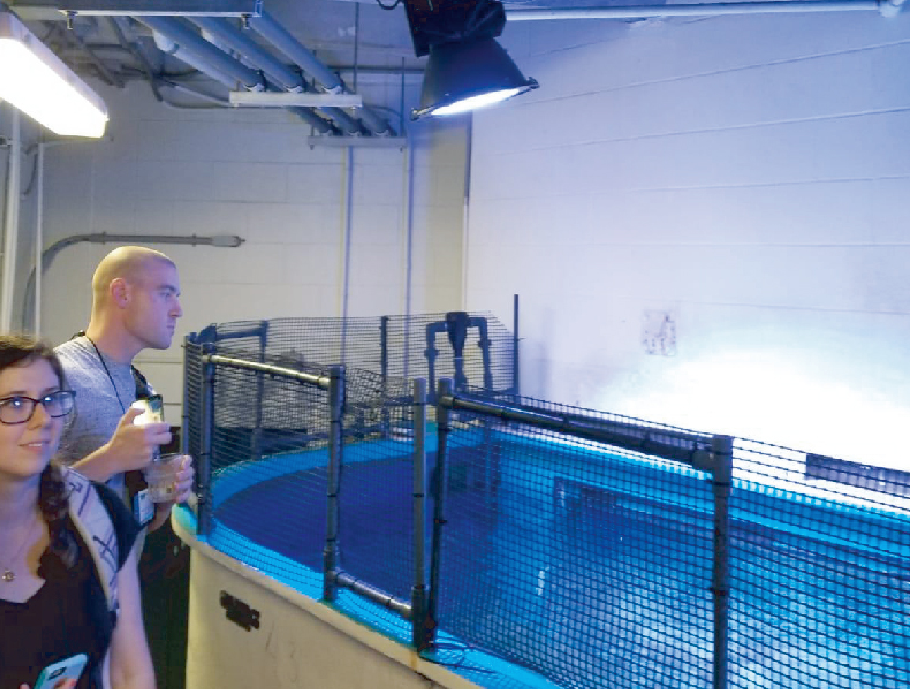

Mote Marine Laboratory, Florida USA

Product Model: F500W-14000K

  • Aquaria 1

  • Aquaria 2

  • Aquaria 3

  • Aquaria 4

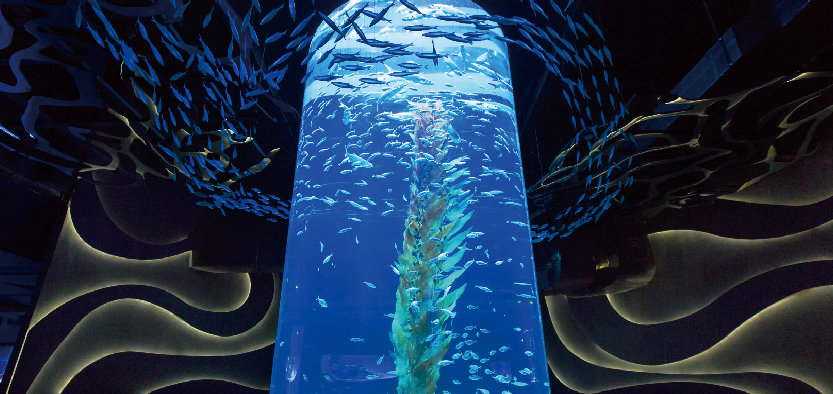

Jakarta Aquarium, Jakarta Indonesia Coral Reef Tank

Product Model: F500W-14000K

  • Jakarta 1

  • Jakarta 2

  • Jakarta 3

  • Jakarta 4

Jakarta Aquarium, Jakarta Indonesia Coral Reef Tank

Coral Tank

A combination of F500 and R420r series LED lighting systems for coral growing demonstration

  • Jakarta 5

  • Jakarta 6

  • Jakarta 7

  • Jakarta 8

Jakarta Aquarium, Jakarta Indonesia Coral Reef Tank

90% of LED lighting systems are provided by Maxspect

Freshwater Planted Tank
Product Spec:300W-7000K

  • Jakarta 9

  • Jakarta 10

  • Jakarta 11

  • Jakarta 12

Phillip and Patricia Frost Museum of Science

Product Model: Fourteen sets of F300W Commercial Floodlight

  • Frost Science 1

  • Frost Science 2

  • Frost Science 3

  • Frost Science 4

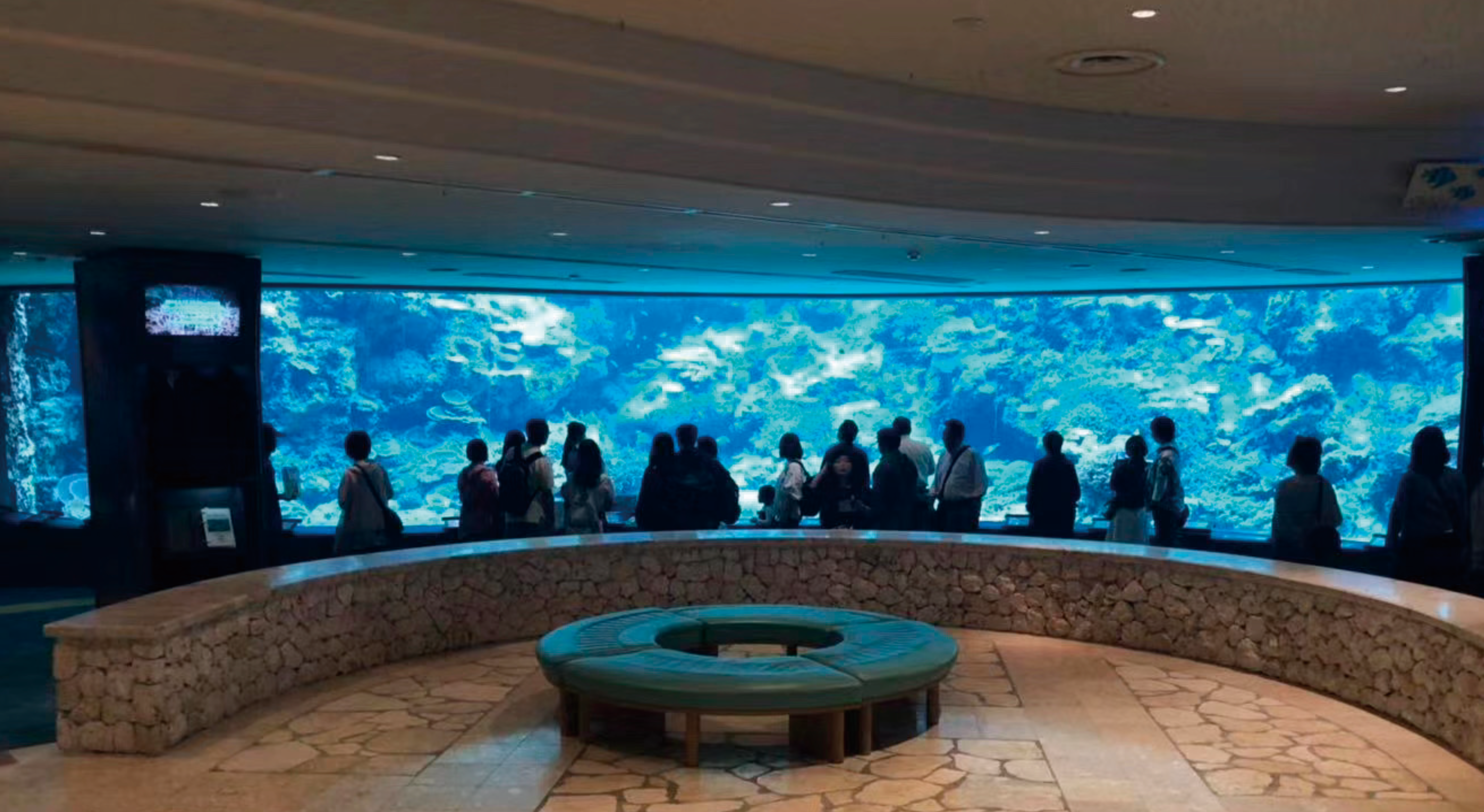

Okinawa Churaumi Aquarium, Japan

Product Model: F300W-10000K, F300W-7000K

  • Okinawa 01

  • Okinawa 02

  • Okinawa 03

  • Okinawa 04

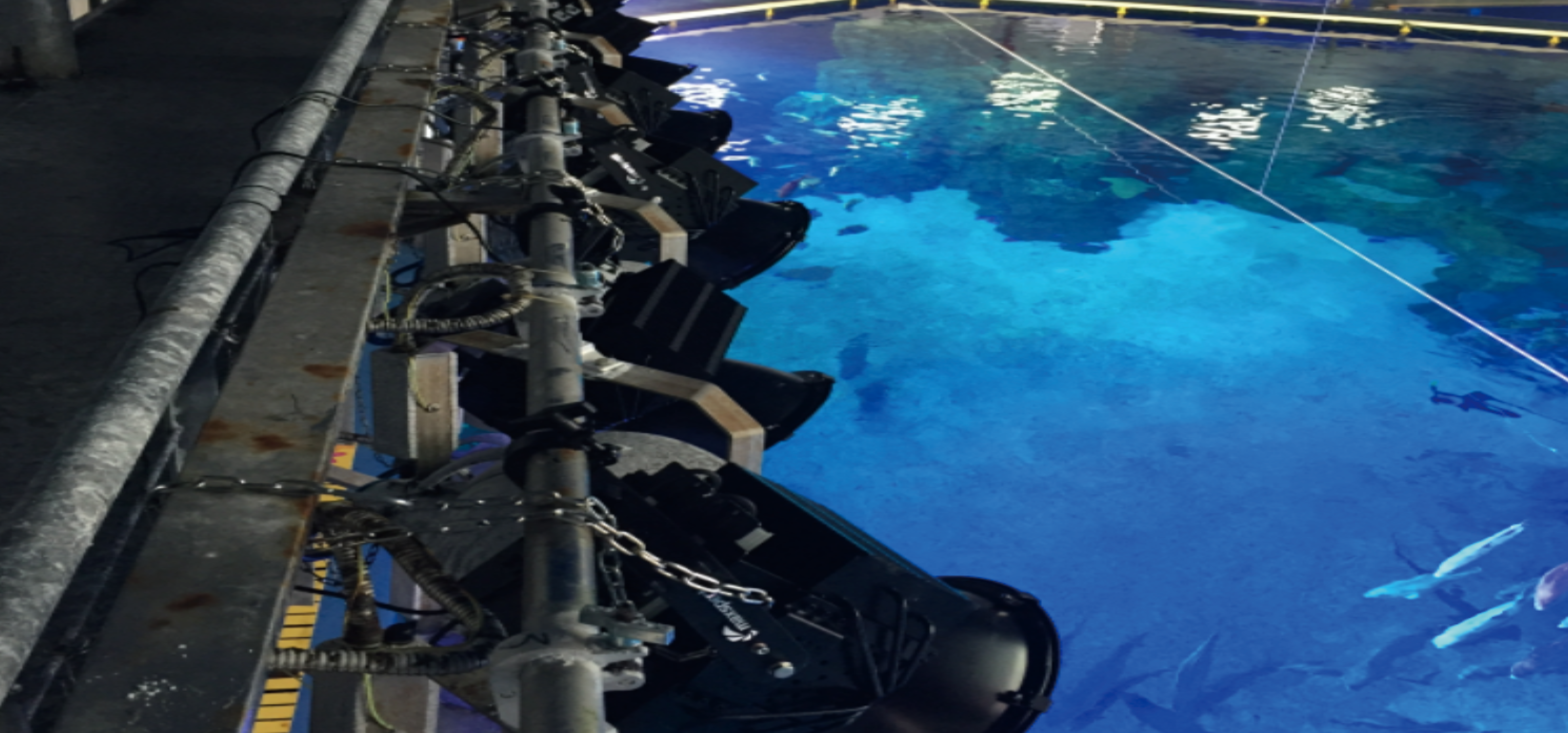

Chimelong Ocean Kingdom - Ocean Avenue, Zhuhai China

10m Water Depth, 13m Installation Height

Product Spec: 500W-14000K

  • Chimelon 02

  • Chimelon 01

  • Chimelon 03

  • Chimelon 04

Shanghai Chang Feng Ocean World Shark Tank

Product Model: F300W-14000K-60°
F500W-14000K-60°, F500W-14000K-100°

  • Shanghai Chang Feng 01

  • Shanghai Chang Feng 02

  • Shanghai Chang Feng 03

  • Shanghai Chang Feng 04

Hong Kong Ocean Park, Main Exhibition Tank at the Grand Aquarium

Product Model: F500W-7000K-60°,
F500W-RGBW-100°, F500W-14000K-60°

  • Hongkong OP 1

  • Hongkong OP 2

  • Hongkong OP 3

  • Hongkong OP 4

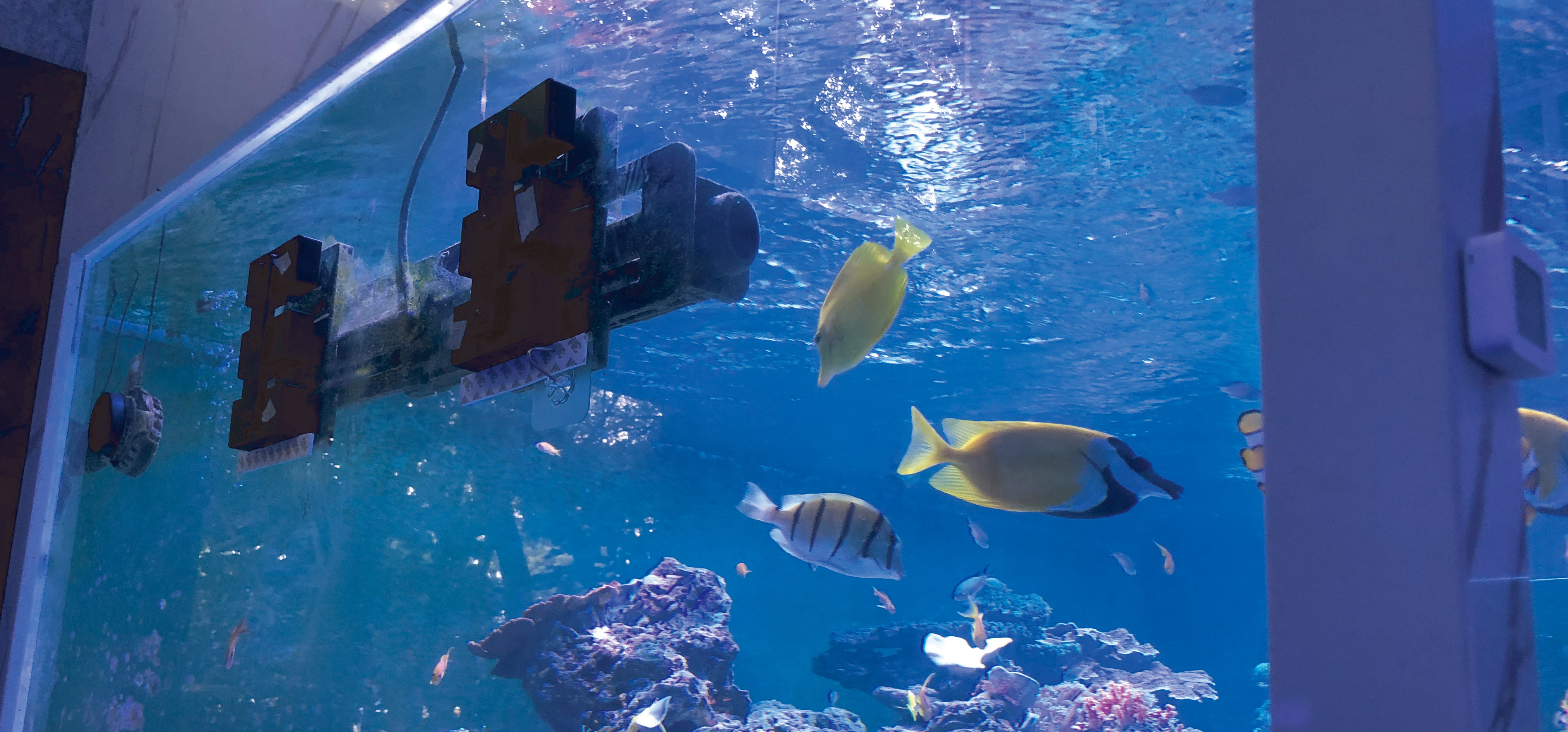

Zhihai Ocean, Shenzhen China L-shaped Coral Reef Tank

Product Model: Two sets of Commercial Gyre Flow Pump XFP1400
Tank dimensions: .7x1.6x1m(Water volume: 13tons)

  • Zhihai 1

  • Zhihai 2

  • Zhihai 3

  • Zhihai 4

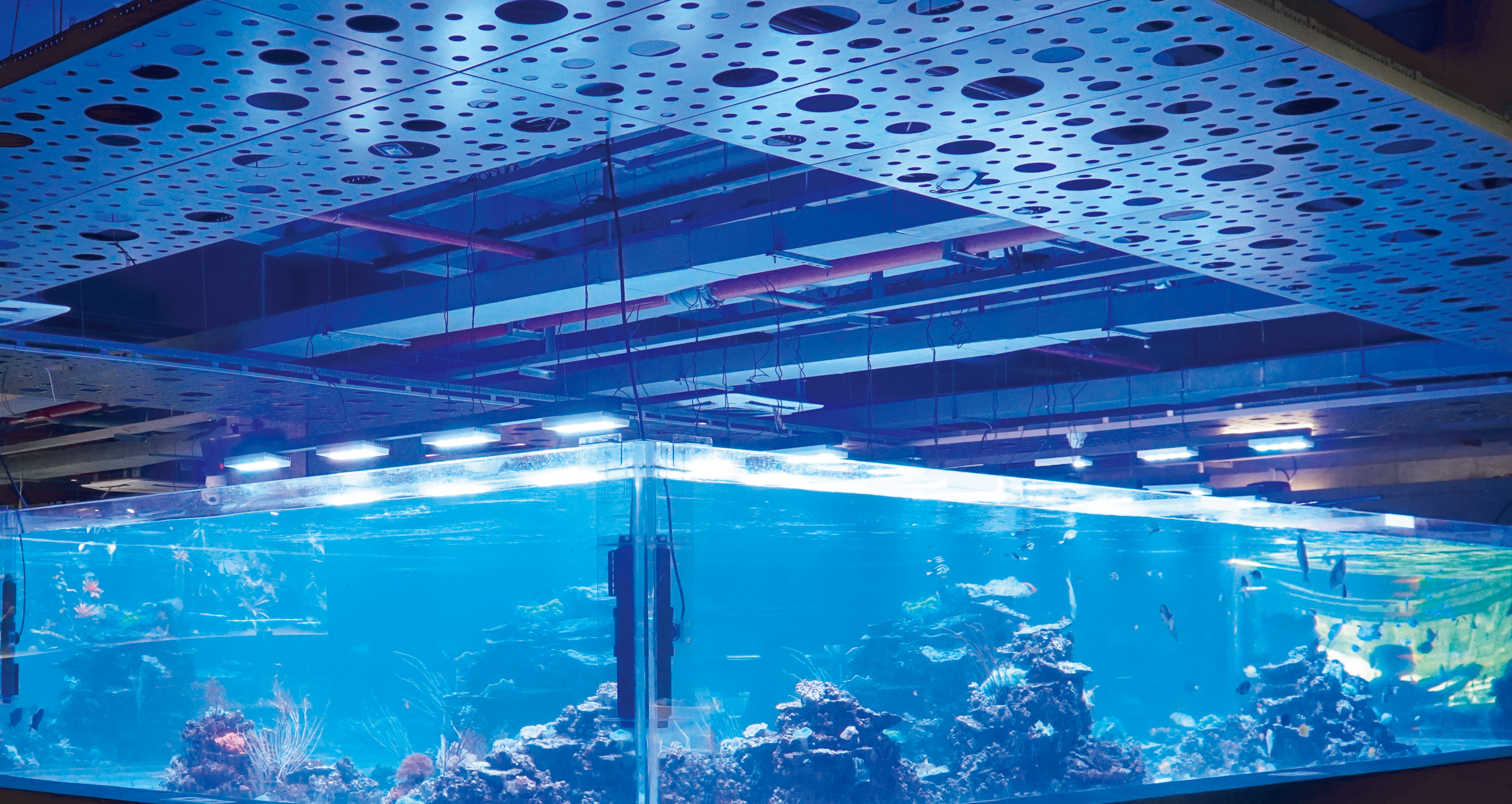

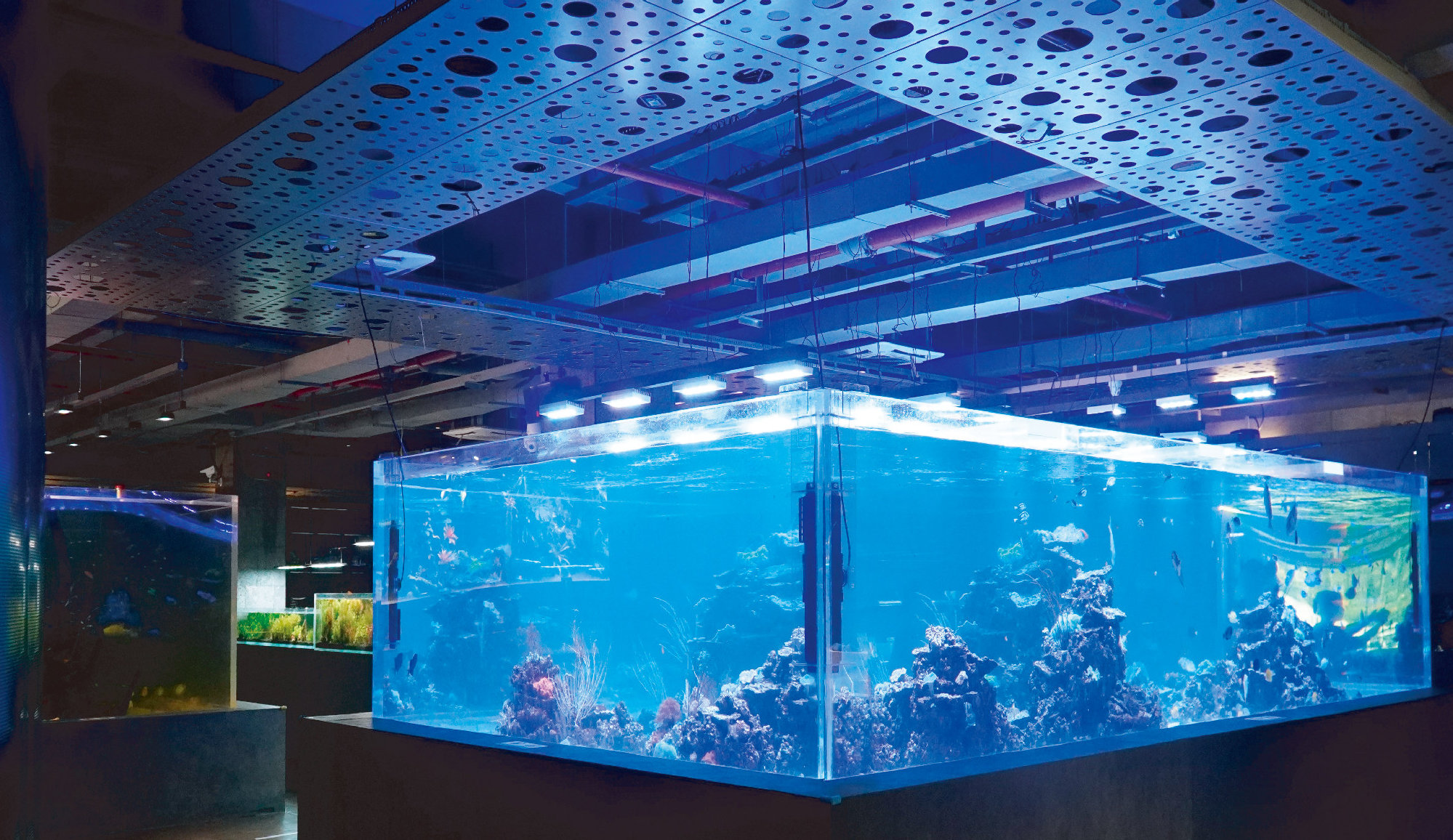

BAO LI HENG, Shenzhen China

Product Model: Commercial Gyre Flow Pump XFP1400
Product Model: F500W-14000K

  • Bao 1

  • Bao 2

  • Bao 3

  • Bao 4

*If the above images infringe on any rights, please contact us for removal.

Read more …Floodlights and Gyre Pro

  • Hits: 10169

Written by Steven on . Posted in Innovate Series.

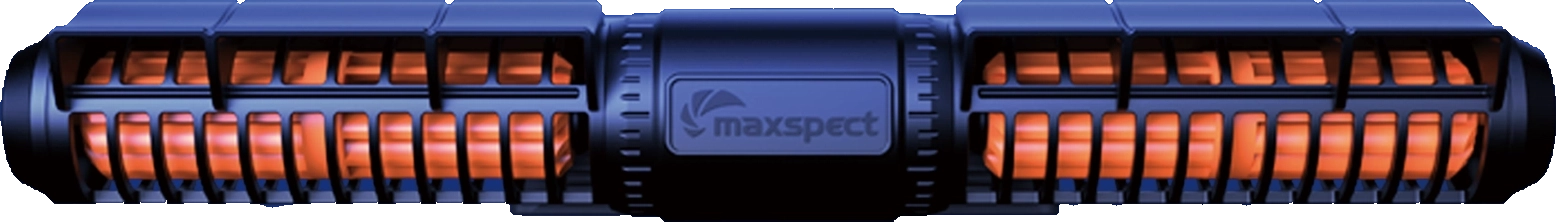

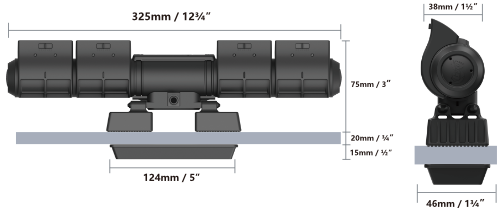

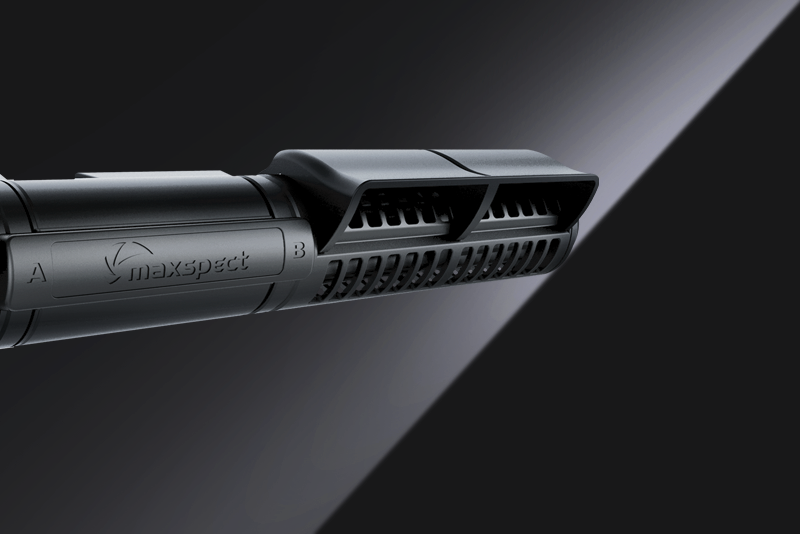

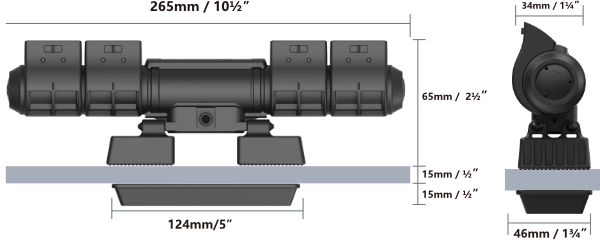

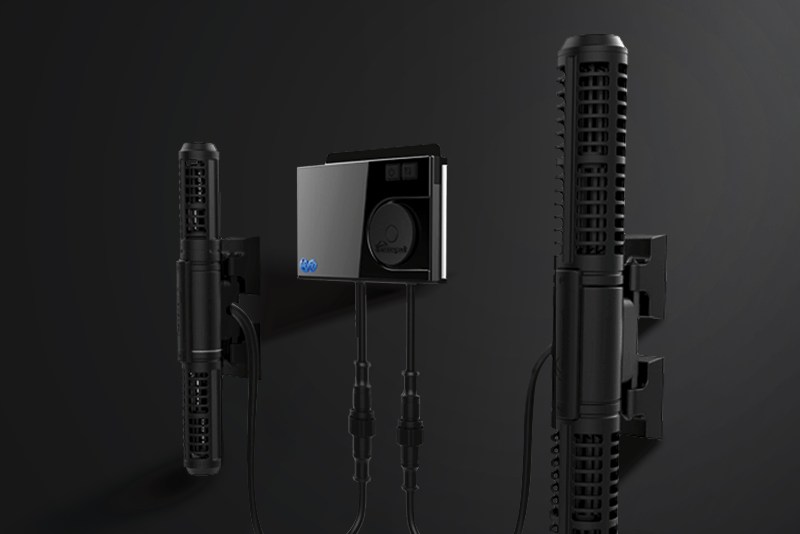

Gyre 300 Cloud Edition

  • Brief: Multi-directional water flow

  • Gyre Ce 300 Logo

  • Revolutionary

Cloud enabled

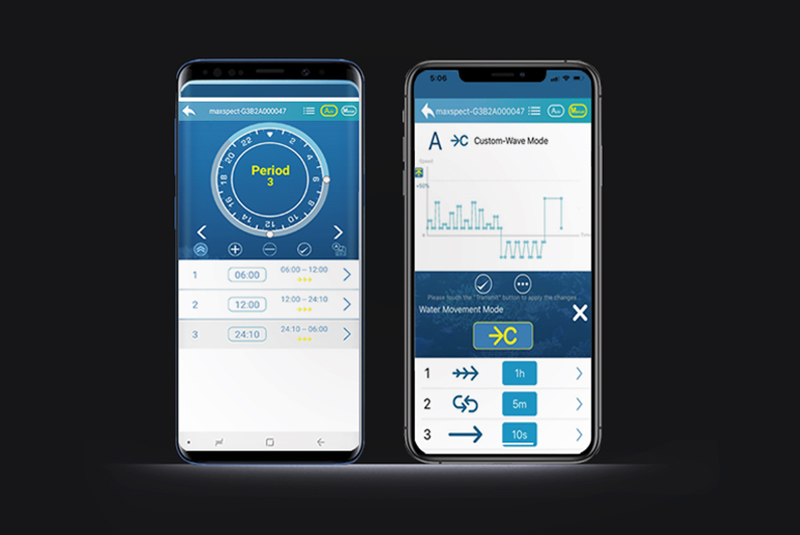

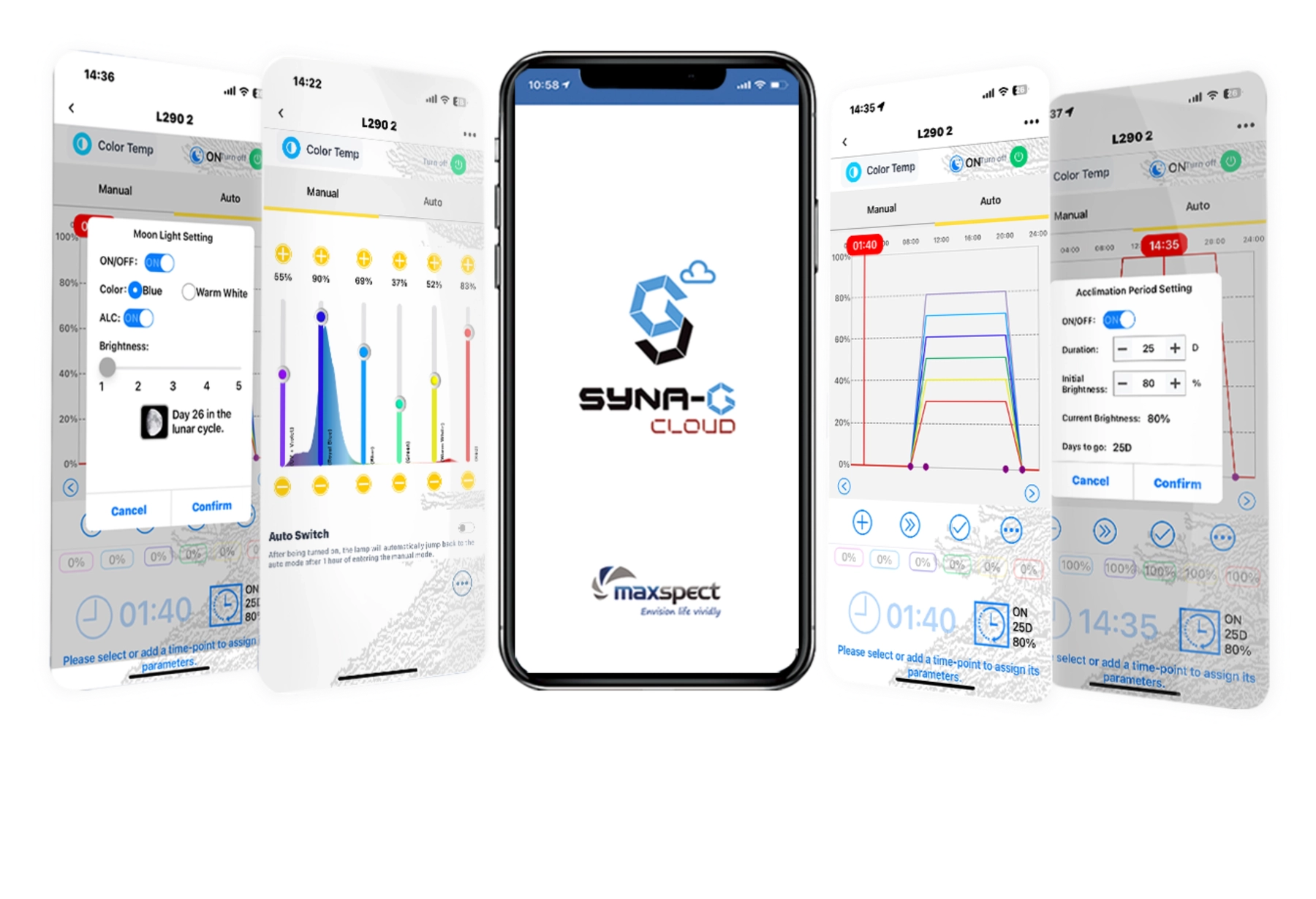

Control your Gyre pumps anywhere around the world over the Cloud with our Syna-G Cloud app

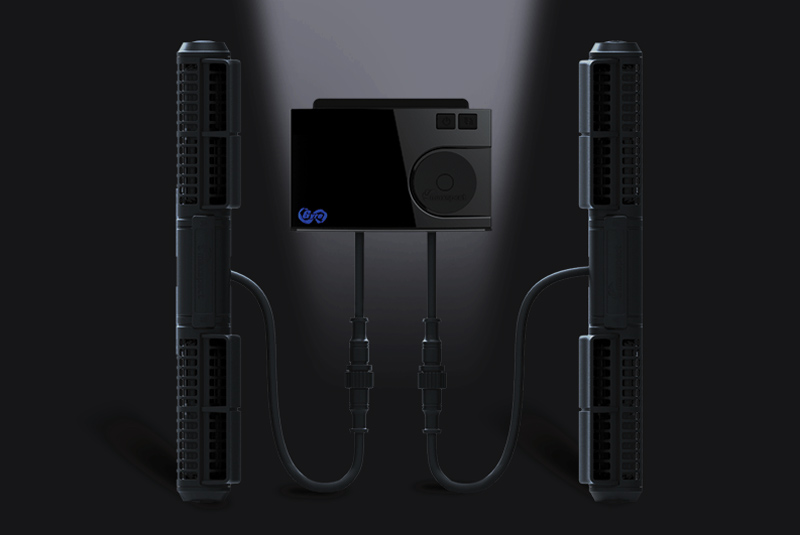

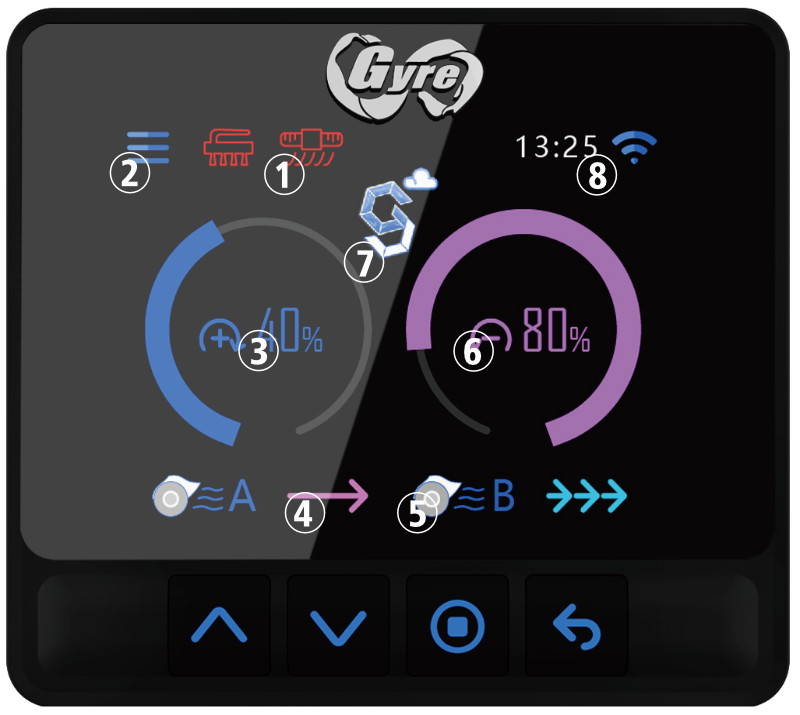

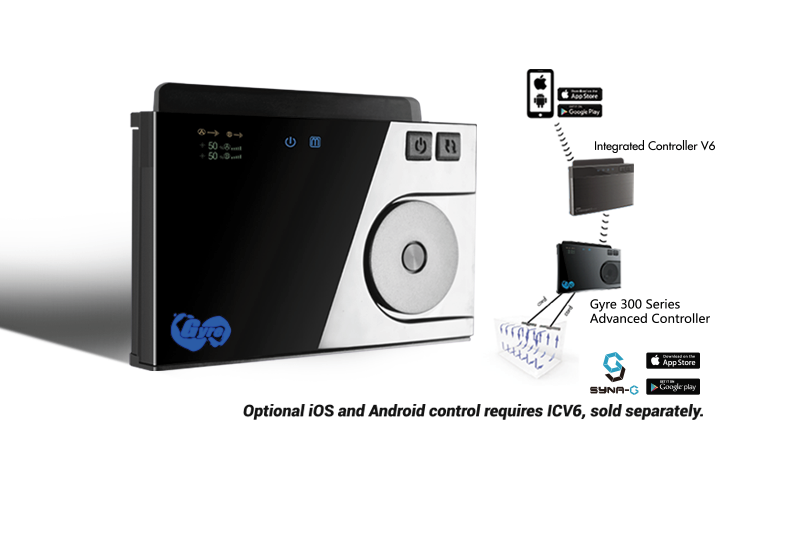

The all new Gyre Advanced Cloud Controller

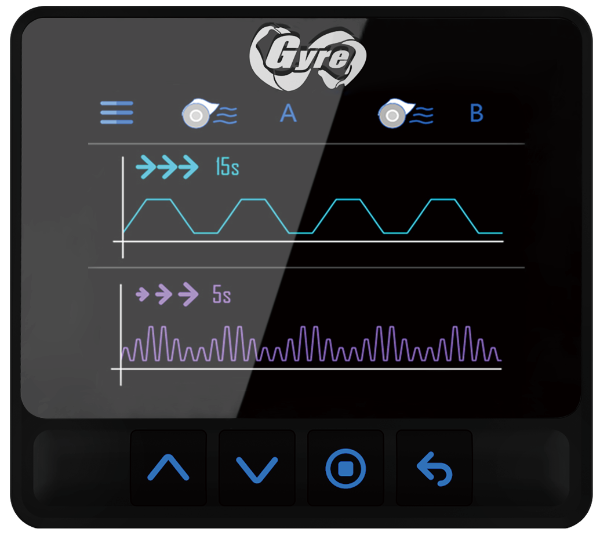

With a large 3.2" TFT LCD color display, complete gyre circulation status within your aquarium at a glimpse

  • Warning indicators

  • Main menu

  • Pump A water flow status

  • Pump A water movement pattern

  • Pump B water movement pattern

  • Pump B water flow status

  • Cloud enabled icon

  • Time and Wi-Fi indicator

  • Warning indicators

  • Main menu

  • Pump A water flow status

  • Pump A water movement pattern

  • Pump B water movement pattern

  • Pump B water flow status

  • Cloud enabled icon

  • Time and Wi-Fi indicator

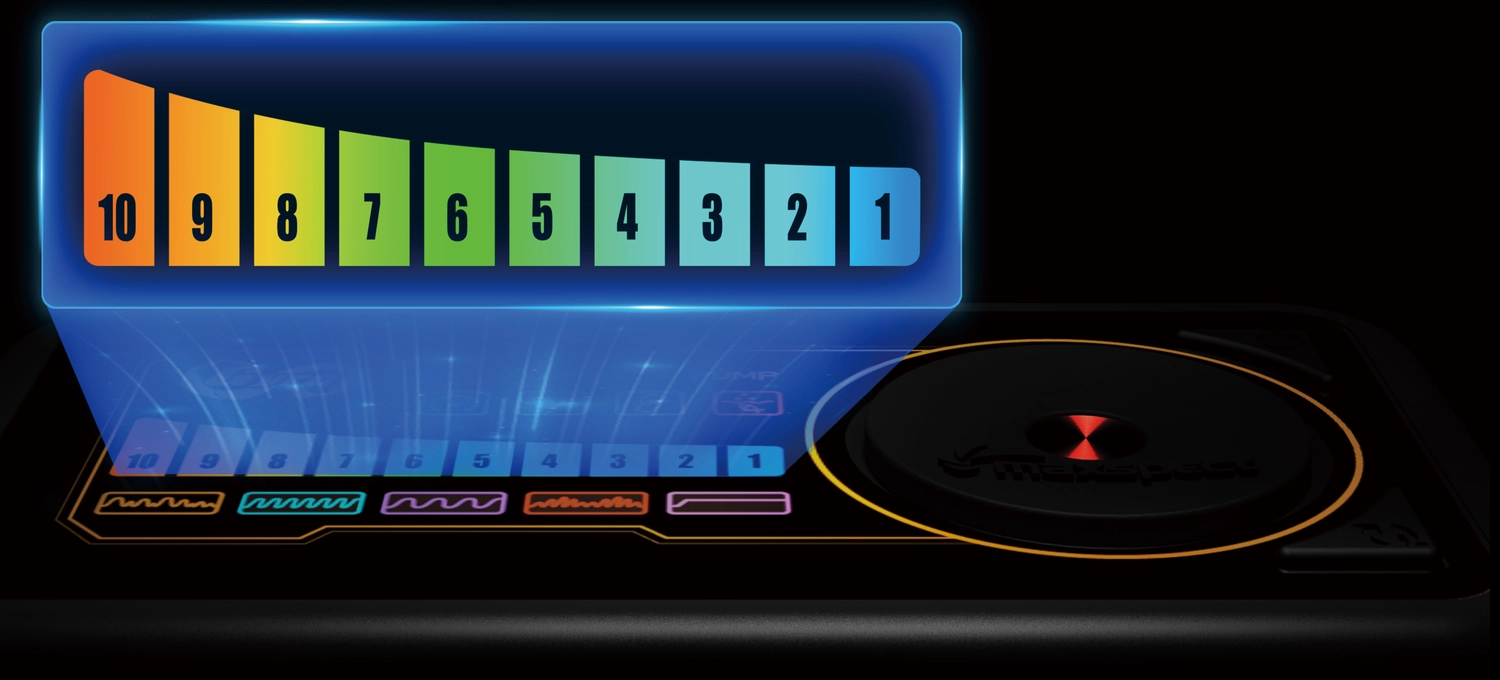

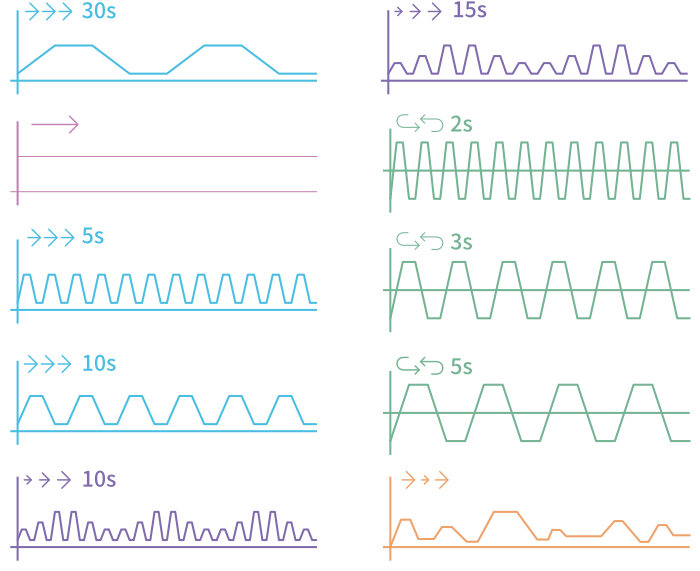

Now comes with over 20 water pattern presets

Easily choose the ideal water pattern for your aquarium with a touch of a button, without any programming needed.

Easily choose the ideal water pattern for your aquarium with a touch of a button, without any programming needed.

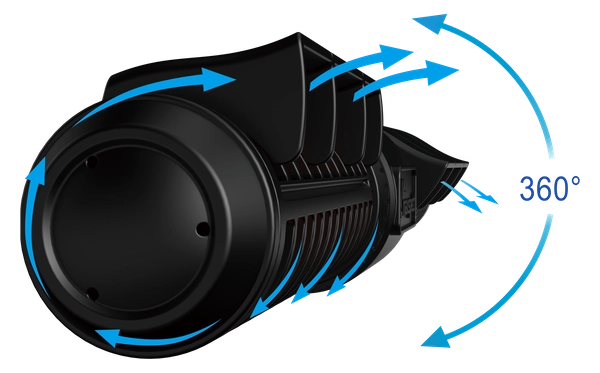

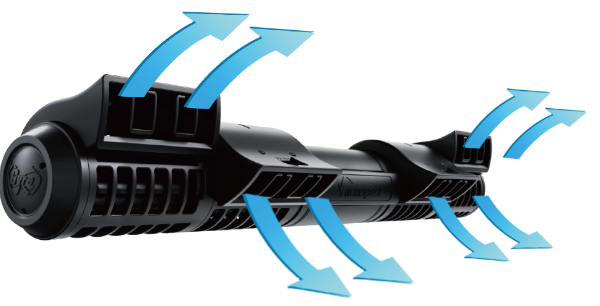

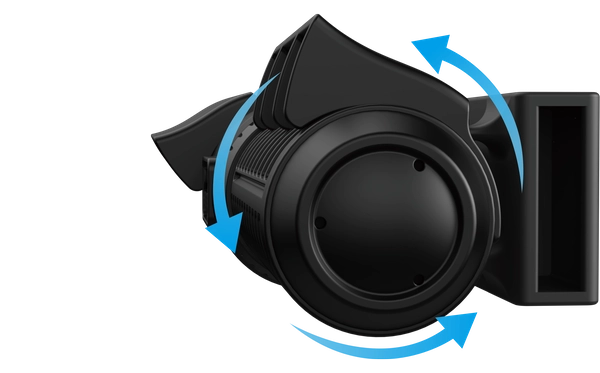

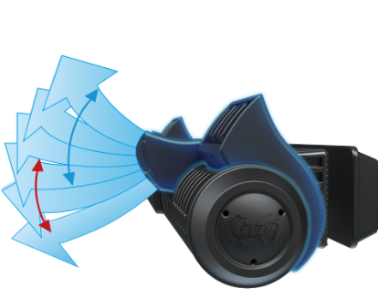

Experience the revolutionary multi-directional water flow

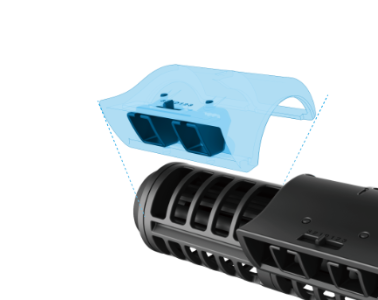

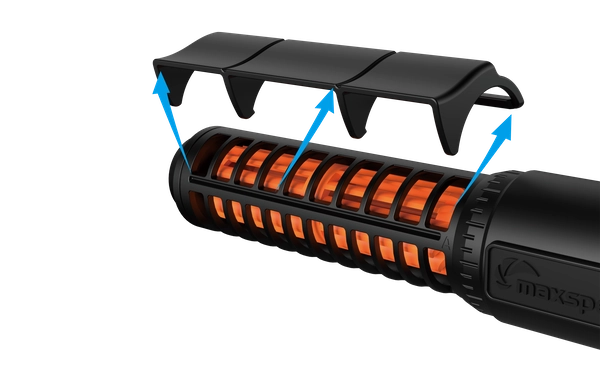

The flow cages and directors have undergone a complete overhaul, now with 4 sides horizontal and vertical flow directions.

Flow cage with 4 sides vertical water flow directions

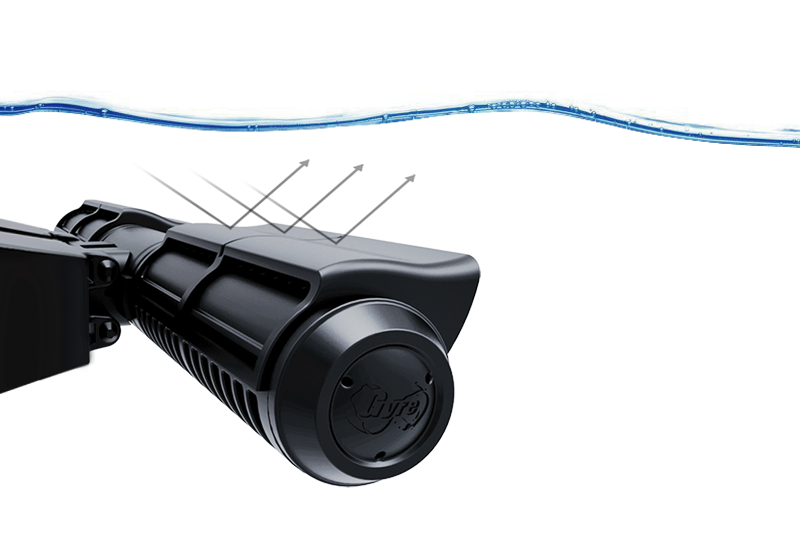

Clip-on flow director

Flow director with 4 sides horizontal water flow directions

How to improve on the Gyre 300 Series already excellent water flow

Whereas there are 4 sides on Gyre 300 Cloud Edition

Try to mix-and-match the following flow to create the ideal flow pattern for your aquarium.

  • Straight flow
  • Swing left
  • Swing right
  • Wide flow
  • Spot flow

Examples of water flow patterns

Here are just a few samples of what kind of unique water flow patterns that can be created in your aquarium.

Even vertical water circulation

  • Wide horizontal water flow

  • Spot horizontal water flow

  • Water flow from left Gyre outlet
  • Water flow from right Gyre outlet

Uneven water circulation

  • Swing left horizontal water flow

  • Swing right horizontal water flow

  • Water flow from left Gyre outlet
  • Water flow from right Gyre outlet
Model XF330 XF350
Power Consumption 5-35w 5-52w
Flow Rate 9,000l/h (2,377 US Gal/h) 20,000l/h (5,283 US Gal/h)
Suitable for Aquarium 100-500L /26-132 US Gal 300-3,000L /79-792 US Gal
Power Supply 100-240V / 50-60Hz 100-240V / 50-60Hz

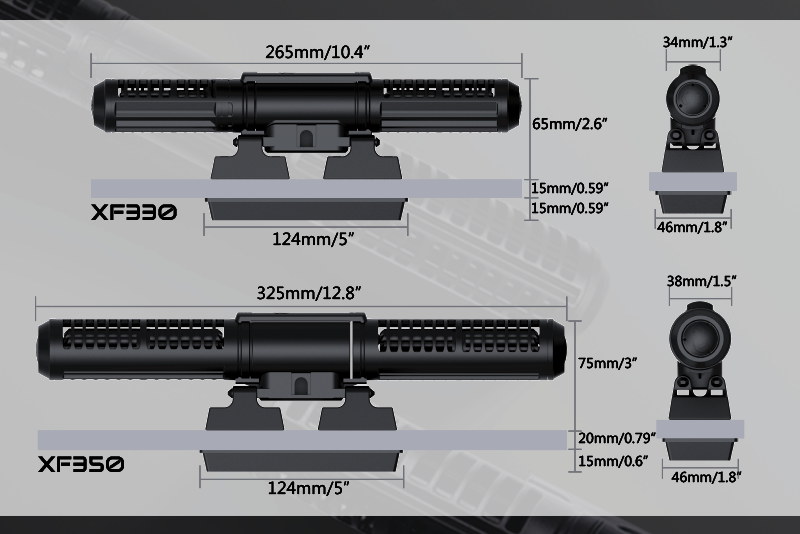

Dimensions 265 x65 x34mm
10½" x2½" x1¼"		 325 x75 x38mm
12¾" x3" x1½"
Weight (Pump unit) 575g /20.3oz 645g /22.8oz
Cable: pump to controller 3m /9.8ft 3m /9.8ft
Cable: PSU to controller 1.5m /4.9ft 1.5m /4.9ft
Glass thickness: standard 15mm /0.59" 20mm /0.79"
Glass thickness: reinforced 20mm /0.79" 25mm /0.98"
Model XF330 XF350
Power Consumption 5-35w 5-52w
Flow Rate 9,000l/h (2,377 US Gal/h) 20,000l/h (5,283 US Gal/h)
Suitable for Aquarium 100-500L /26-132 US Gal 300-3,000L /79-792 US Gal
Power Supply 100-240V / 50-60Hz 100-240V / 50-60Hz
Dimensions 265 x65 x34mm
10½" x2½" x1¼"		 325 x75 x38mm
12¾" x3" x1½"
Weight (Pump unit) 575g /20.3oz 645g /22.8oz
Cable: pump to controller 3m /9.8ft 3m /9.8ft
Cable: PSU to controller 1.5m /4.9ft 1.5m /4.9ft
Glass thickness: standard 15mm /0.59" 20mm /0.79"
Glass thickness: reinforced 20mm /0.79" 25mm /0.98"

frontpage

Read more …Gyre 300 Cloud Edition

  • Hits: 28383

Written by Steven on . Posted in Innovate Series.

Aeraqua Duo Protein Skimmer

  • Brief: Dual intakes & dual needle wheels, closed loop recirculation

Small Footprint Big Skimmer

Don't be fooled by its size, the AD600 rated for up to 450 gallon (1,700 litre) tanks!

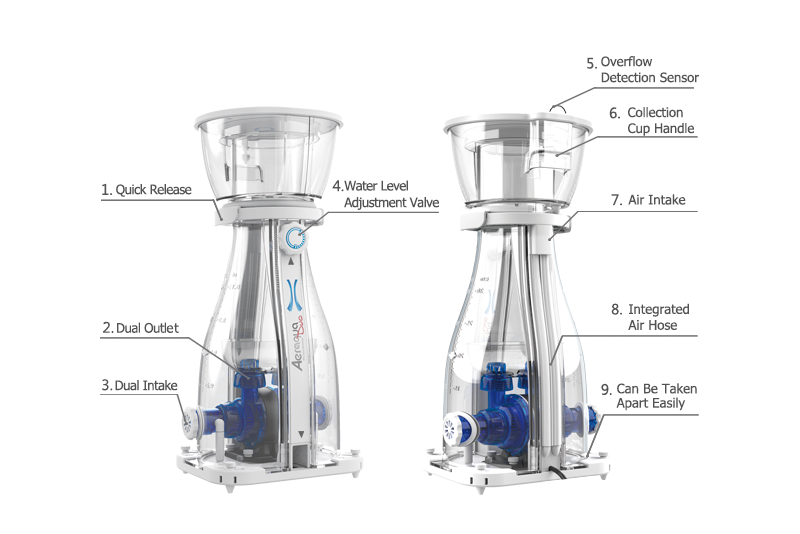

Integrated, Efficient and Streamline

  • Quick Release
  • Dual Outlet
  • Dual Intake
  • Water Level Adjustment Valve
  • Overflow Detection Sensor
  • Collection Cup Handle
  • Air Intake
  • Integrated Air Hose
  • Can Be Taken Apart Easily

Promotional Video

Watch more videos on our channel

Features

  • Near-Silent

    Near-Silent

  • Integrated Pipeless Design

    Integrated Pipeless Design

  • Small Footprint

    Small Footprint

  • Precission Front Dial

    Precission Front Dial

  • Dual Intake

    Dual Intake

  • Dual Needle Wheel

    Dual Needle Wheel

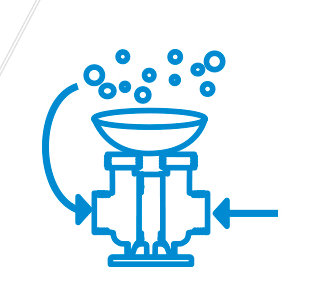

  • Air/Water Recirculation

    Air/Water Recirculation

  • Overflow Protection

    Overflow Protection

  • Quick Releases

    Quick Releases

  • DC Flow Control

    DC Flow Control

  • Wireless Capabilities

    Wireless Capabilities

  • iOS/Android App Control

    iOS/Android App Control

  • Feed Mode

    Feed Mode

  • Start Delay

    Start Delay

  • Patented Dual Needle Wheel Design

  • Take full control of your skimmer with our Syna-G app

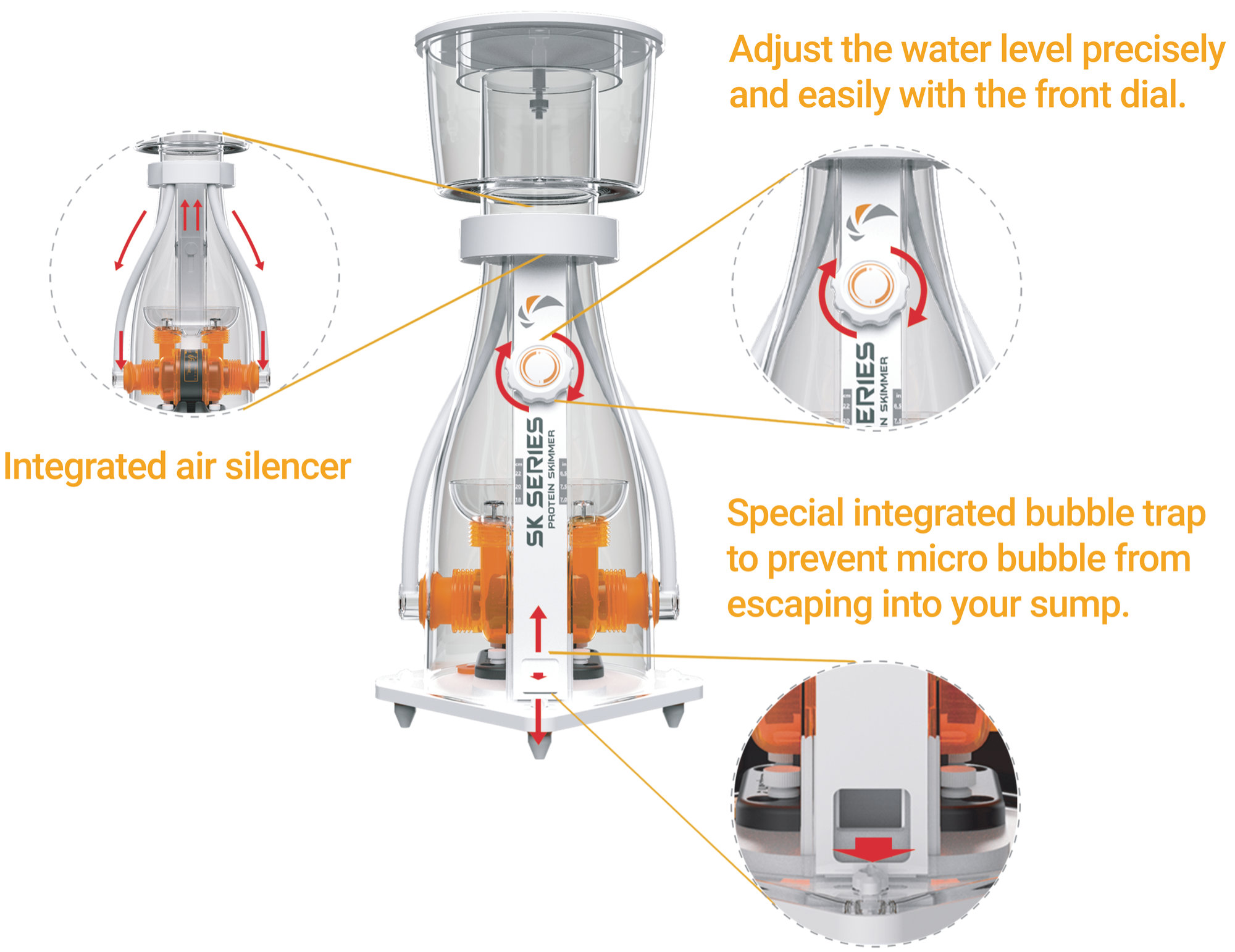

  • Precision Water Level Control

    Adjust the water level precisely and easily with the front dial.

  • Ingeniously Hidden Silencer

    The air silencer has been integrated into the bottom panel of the skimmer.

  • Quick releases makes maintenance easy

    With our quick release design, you can now remove the skimmate collection cup easily and elegantly.

Configuration

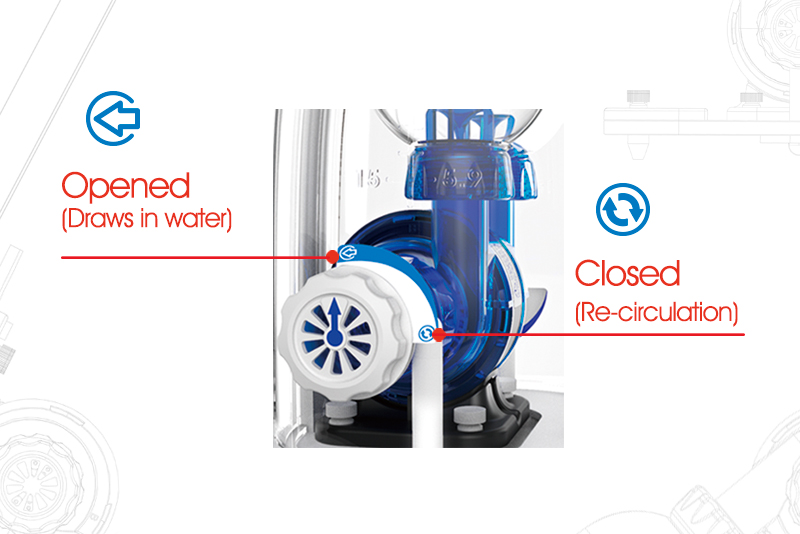

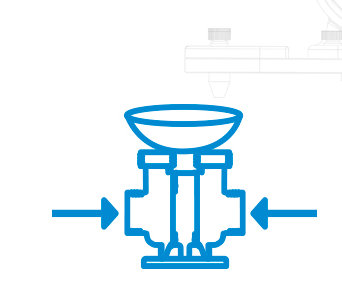

  • Controls

    • Open the intake to draw in water
    • Close it for re-circulation

  • Configuration option 1

    • One side drawing water from sump, the other side re-circulating within skimmer

  • Configuration option 2

    • Both intakes drawing water from sump

High Bioload

  • 400-600l

    100-160gal

    Left: 20% Open
    Right: 100% Open

  • 600-1,000l

    160-260gal

    Overload
    (Not Recommended)

  • 1,000-1,700l

    260-450gal

    Overload
    (Not Recommended)

Medium Bioload

  • 400-600l

    100-160gal

    Left: Closed
    Right: 100% Open

  • 600-1,000l

    160-260gal

    Left: 60% Open
    Right: 100% Open

  • 1,000-1,700l

    260-450gal

    Overload
    (Not Recommended)

Low Bioload

  • 400-600l

    100-160gal

    Left: Closed
    Right: 80% Open

  • 600-1,000l

    160-260gal

    Left: 20% Open
    Right: 100% Open

  • 1,000-1,700l

    260-450gal

    Left: 100% Open
    Right: 100% Open

Specifications

Model AD600
Wattage 40w
High Bioload 400L/100Gal
Low Bioload 1,700L/450Gal
Foot Print 260×210mm/
10.2×8.3inches
Height 565mm/22.2inches
Water Level 18-24cm/7-9.5inches
Air Intake 1,500L/H / 396G/H
Water Intake 2,400L/H / 634G/H

Read more …Aeraqua Duo Protein Skimmer

  • Hits: 16214

Written by Steven on . Posted in Innovate Series.

Turbine Duo

  • Brief: Compact size

Ultra compact design

Small and powerful pump

Features

  • Sine Wave Technology allows near-silent operation

    Utilizing Sine Wave Technology, the Turbine Duo runs almost silently

  • Complete set of accessories and adaptors

    Comes with a complete set of accessories and adaptors, the Turbine Duo can be easily fit to your existing system right out of the box.

  • Outstanding energy efficiency

    The Turbine Duo offers high performance and high flow rate while consuming less energy.

  • Versatile and multi-purpose

    Dual output design makes the Turbine Duo ideal for many different applications, such as using as: return pump, chiller pump, calcium / bio-pellets reactor pump, etc.

Compact Size

While the Turbine Duo is powerful, yet its body is ultra-compact and takes up much less space in your sump.

  • 0501

  • 0502

  • 0503

Configurations

  • Use as a regular return pump with the provided Y-Tubing.

  • Use to create a Closed Loop within your sump.

  • Use to create two return lines to the main tank.

  • Use to drive other appliances such as water chiller, calcium/bio-pellets reactors, ATS, etc.

Water Flow Specifications

  • Model Max Power Max Flow Flow @1.5m
    TD-6K 46W 6500L/H(1717G/H) 4500L/H(1189G/H)
    TD-9K 66W 9500L/H(2510G/H) 5800L/H(1532G/H)
    TD-12K 110W 11400L/H(3012G/H) 6500L/H(1717G/H)
  • Model Max Power Max Flow Flow @1.5m
    TD-6K 35W 4000L/H(1057G/H) 2500L/H(660G/H)
    TD-9K 42W 5000L/H(1321G/H) 3500L/H(925G/H)
    TD-12K 90W 6000L/H(1585G/H) 3800L/H(1004G/H)
  • Model Max Power Max Flow Flow @1.5m
    TD-6K 44W 5000L/H(1321G/H) 3000L/H(793G/H)
    TD-9K 65W 8500L/H(2245G/H) 5000L/H(1321G/H)
    TD-12K 106W 9000L/H(2378G/H) 5500L/H(1453G/H)
  • Model Max Power Max Flow Flow @1.5m
    TD-6K 43W 3700L/H(977G/H) 2800L/H(740G/H)
    TD-9K 62W 4500L/H(1189G/H) 3300L/H(872G/H)
    TD-12K 98W 5400L/H(1427G/H) 4000L/H(1057G/H)
  • Model Max Flow Flow @1.5m
    TD-6K 6500L/H (1717G/H) 4500L/H (1189G/H)
    TD-9K 9500L/H (2510G/H) 5800L/H (1532G/H)
    TD-12K 11400L/H (3012G/H) 6500L/H (1717G/H)
  • Model Max Flow Flow @1.5m
    TD-6K 4000L/H (1057G/H) 2500L/H (660G/H)
    TD-9K 5000L/H (1321G/H) 3500L/H (925G/H)
    TD-12K 6000L/H (1585G/H) 3800L/H (1004G/H)
  • Model Max Flow Flow @1.5m
    TD-6K 5000L/H (1321G/H) 3000L/H (793G/H)
    TD-9K 8500L/H (2245G/H) 5000L/H (1321G/H)
    TD-12K 9000L/H (2378G/H) 5500L/H (1453G/H)
  • Model Max Flow Flow @1.5m
    TD-6K 3700L/H (977G/H) 2800L/H (740G/H)
    TD-9K 4500L/H (1189G/H) 3300L/H (872G/H)
    TD-12K 5400L/H (1427G/H) 4000L/H (1057G/H)

Read more …Turbine Duo

  • Hits: 8845

Written by Steven on . Posted in Innovate Series.

Ethereal Infinite

  • Brief: More than meets the eye
Maxspect Ethereal Infinite
More than meets the eye
More than meets the eye

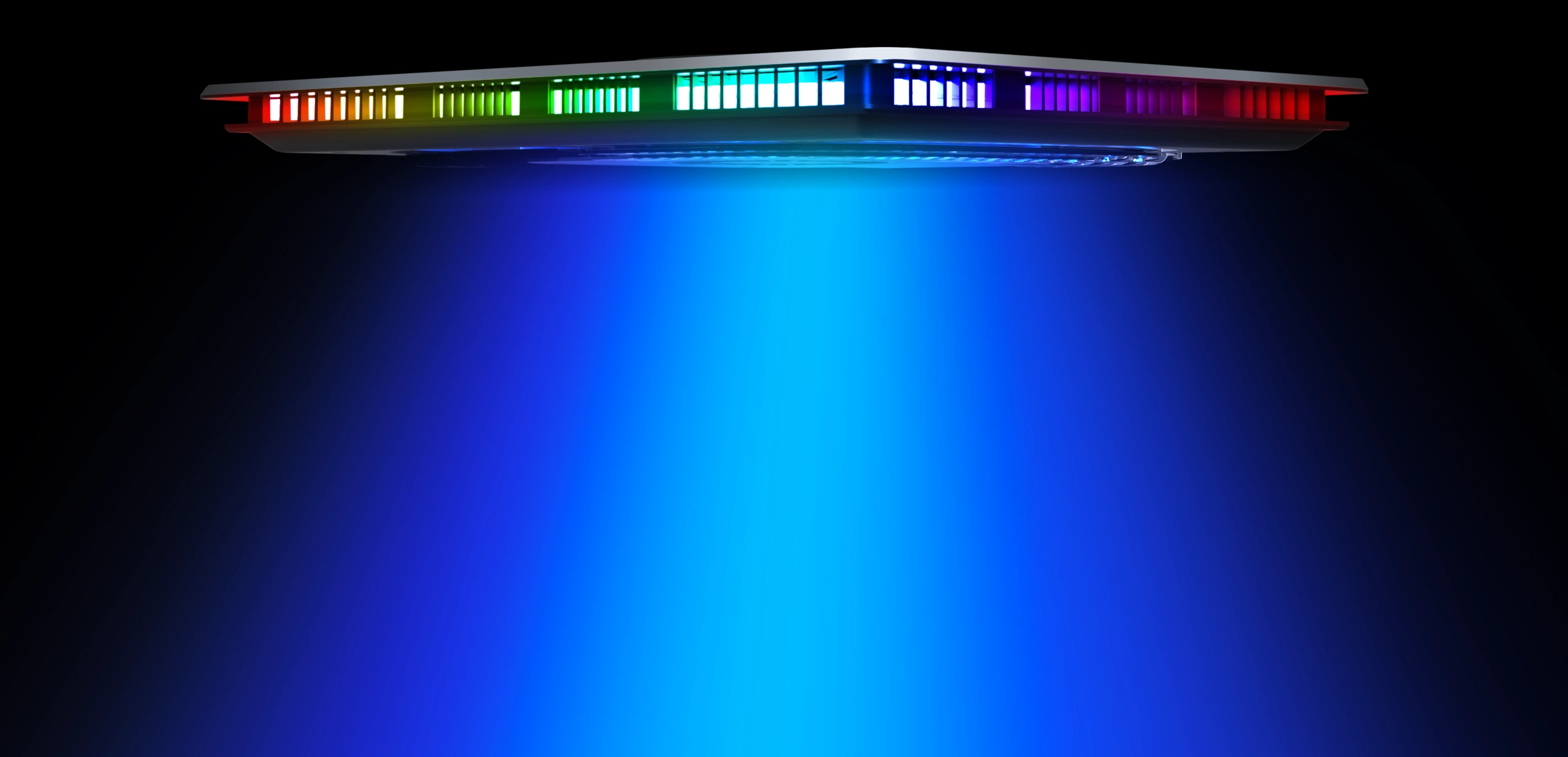

Immerse Yourself in a World of Color

Create a captivating atmosphere with our customizable mood lights, designed to complement your aquarium's aesthetic and enhance your home's ambiance.

Imagine it as a kaleidoscope of luminescence, offering 18 captivating light patterns.  It also syncs seamlessly with your music, turning every beat into a visual symphony.

PAR Powerhouse:
Illuminate Your Coral Reef with
230w of Optimal Lighting

Experience the transformative power of our high-powered LED fixture, delivering more than sufficient PAR to support the growth and health of even the most demanding coral species.

Superior Versatility and Longevity:

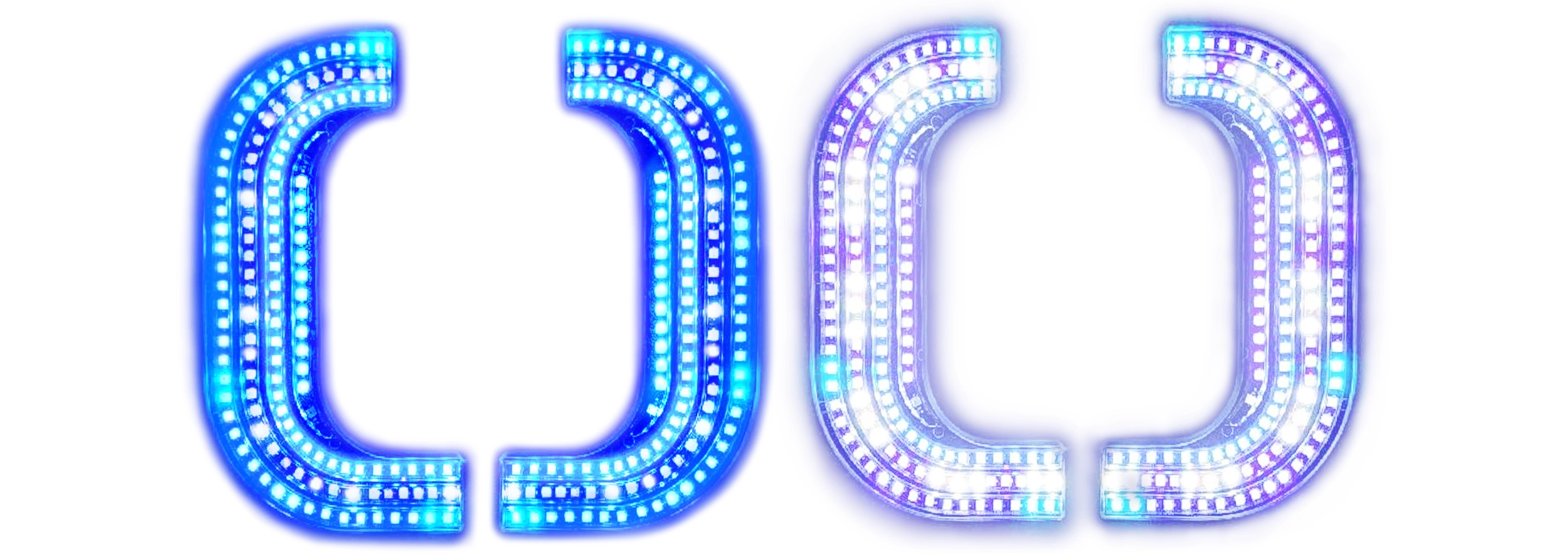

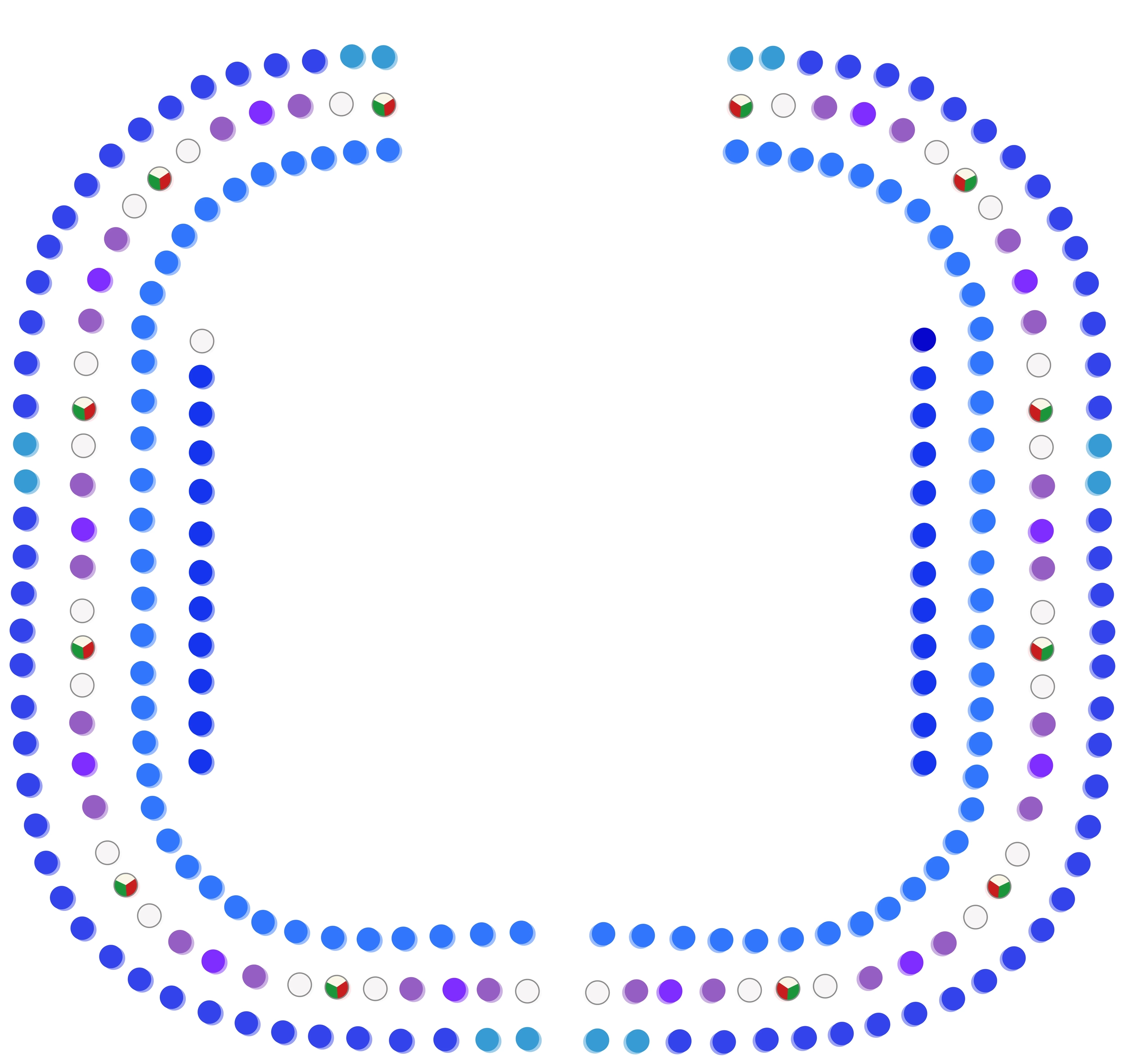

The Benefits of Redundant LED Chips

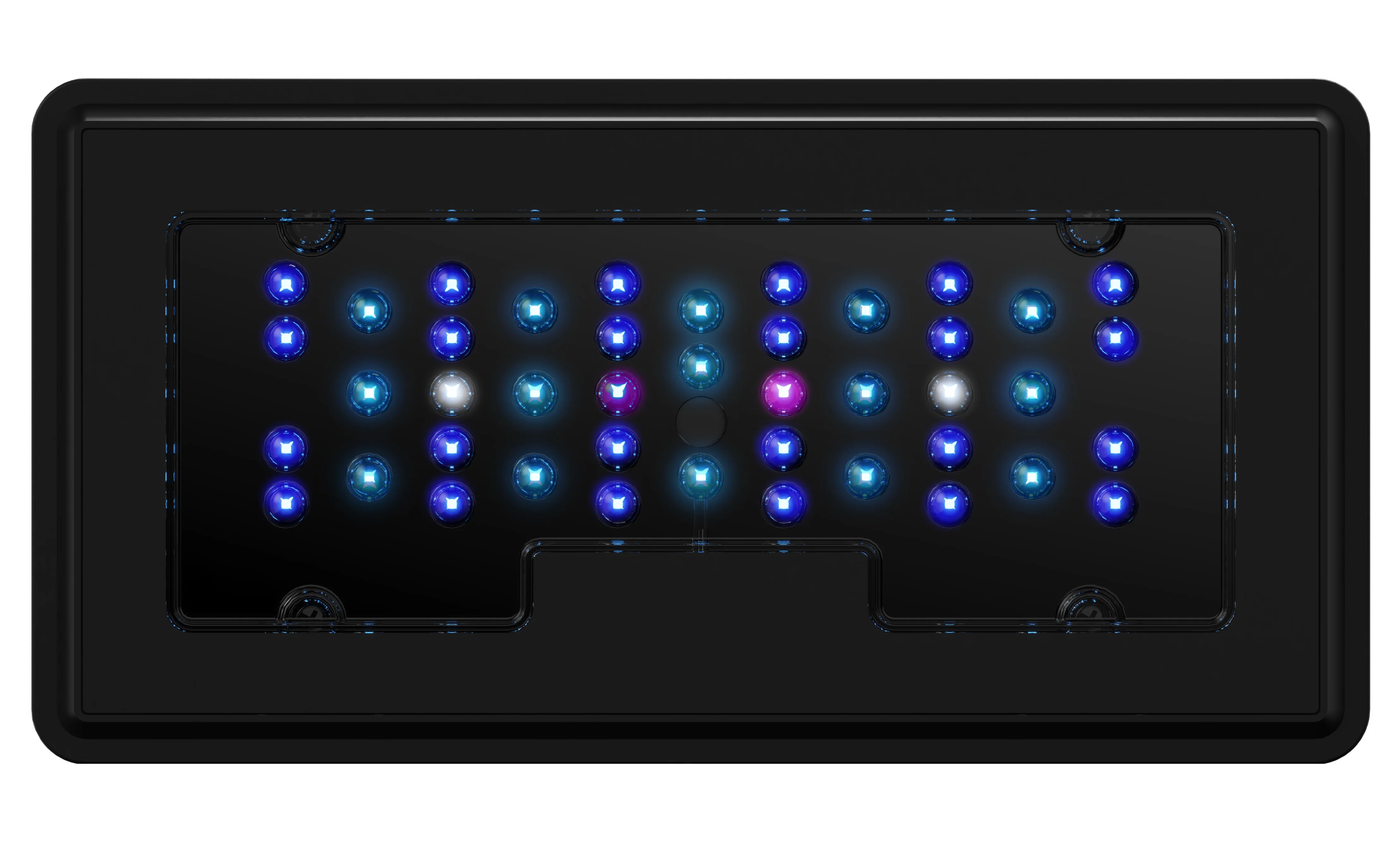

Equipped with 276 LED chips with a maximum theoretical output of 726w, we are utilizing only 230w of this massive amount of redundant LED chips to allow for seamless transitions between full blue and full white spectrums, providing unparalleled control over your aquarium's lighting environment.

Our redundant LED chip configuration guarantees a significantly longer lifespan, minimizing maintenance requirements and maximizing your investment.

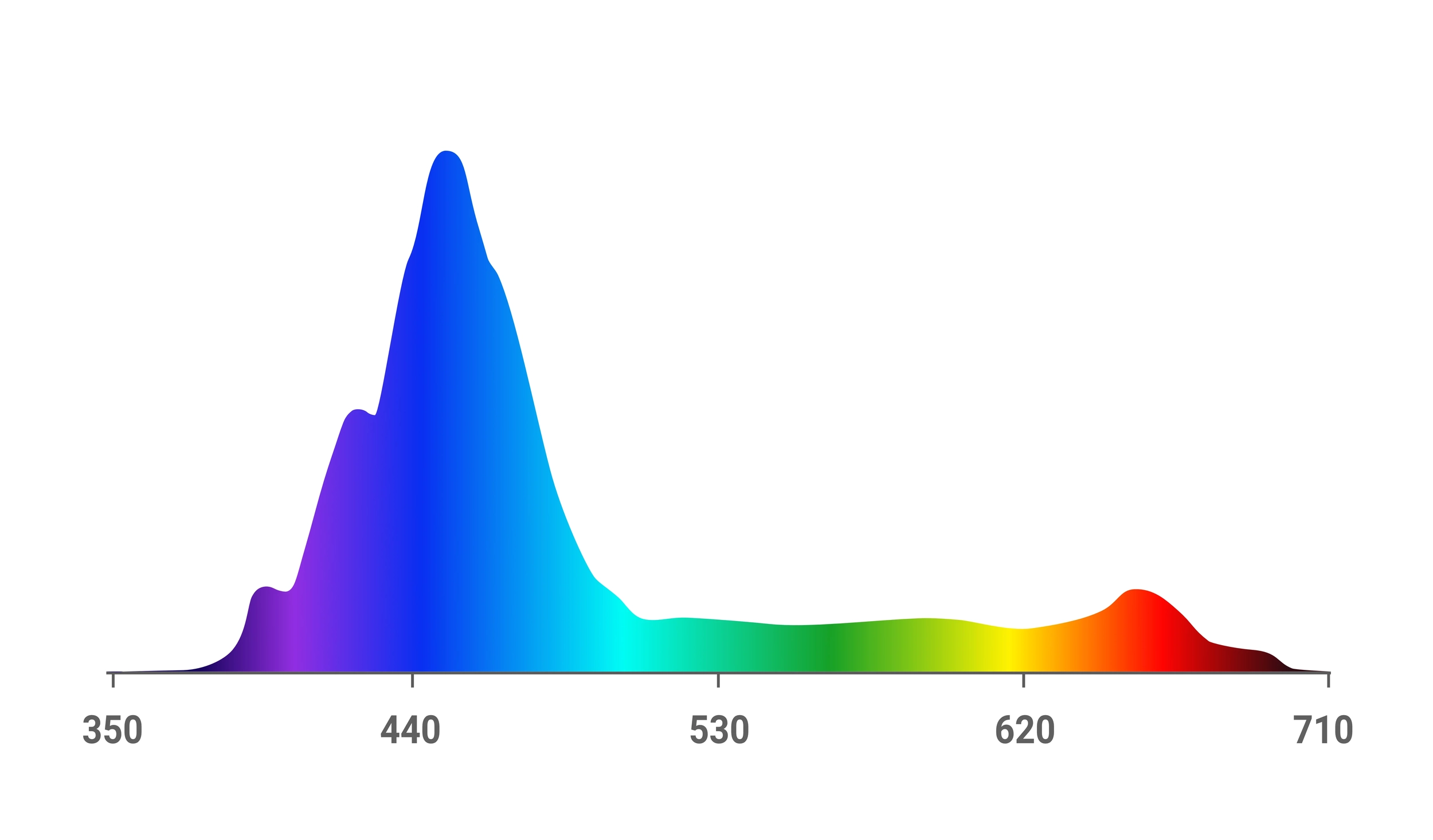

  • Full White Spectrum

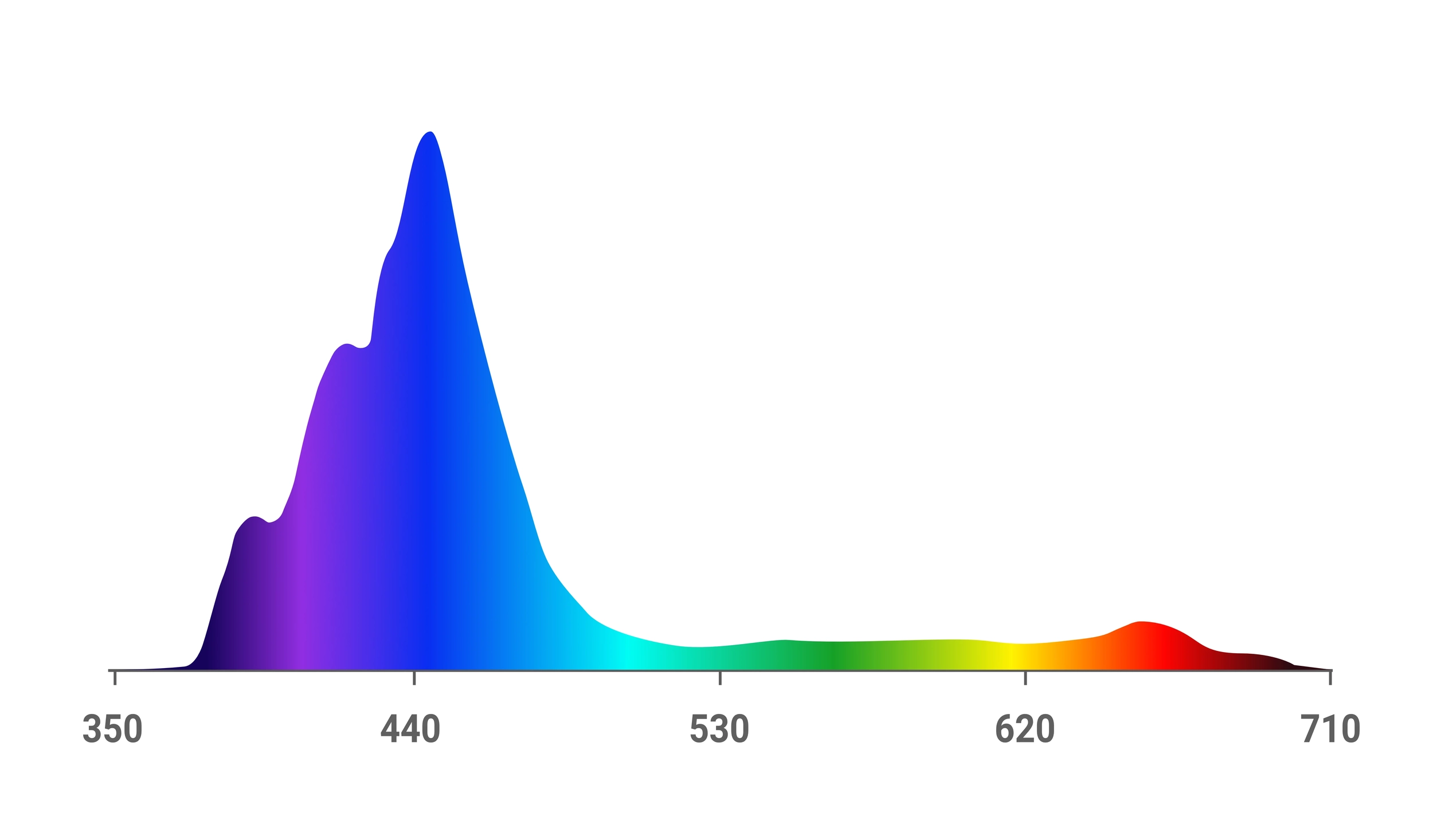

  • Full Blue Spectrum

Channel color wavelength quantity
A UV 390-400nm 12
Violet 410-420nm 12
Deep Blue 435-440nm 12
B Royal Blue 450-455nm 96
C Light Blue 460-470nm 72
D Cyan 470-480nm 12
E Green 520-525nm 12
F Cool White 9000-11000K 24
G Warm White 2800-3200K 12
H Red 660-665nm 12

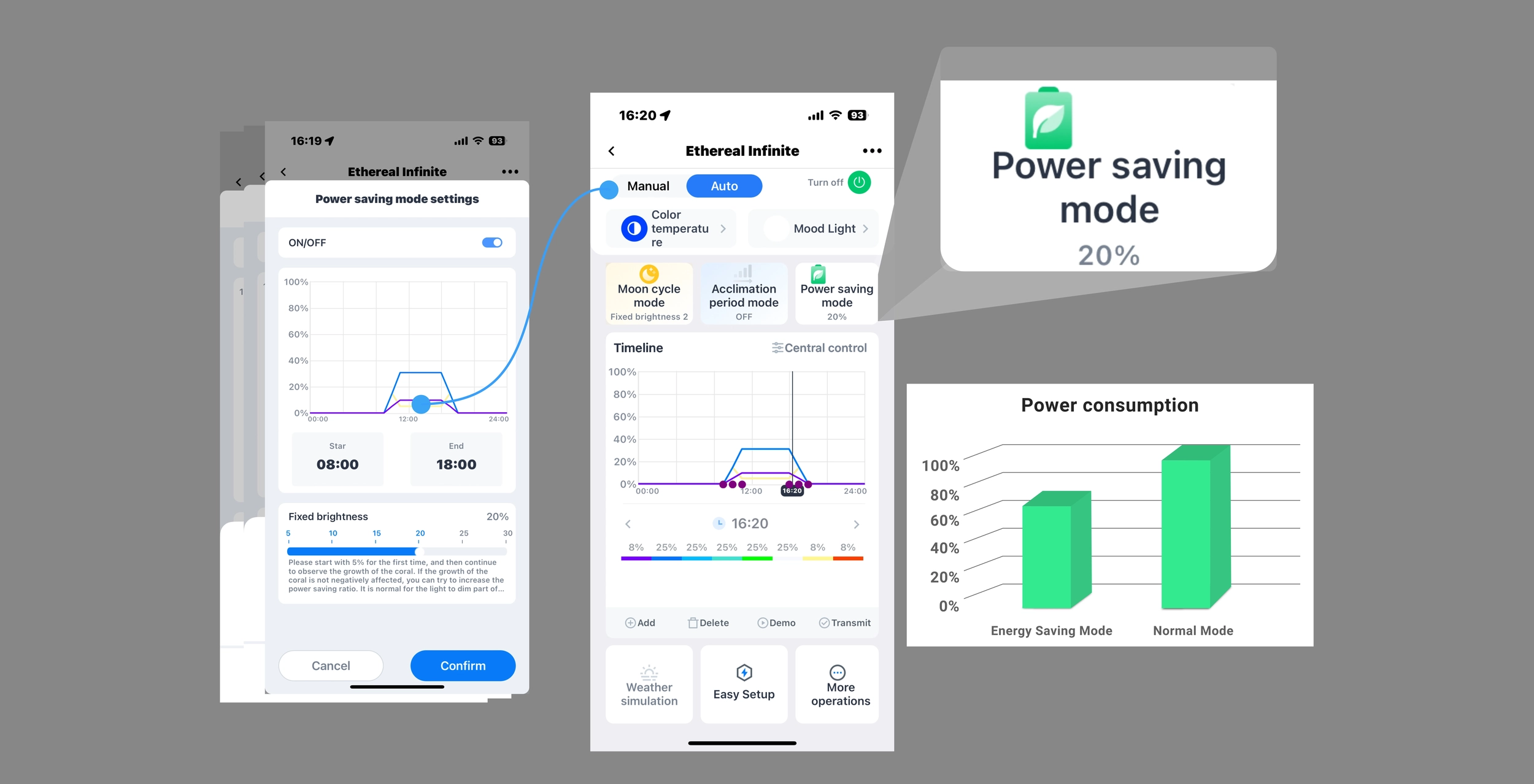

Save Energy, Save Money

Many countries have experienced significant increases in energy prices over the past few years. The Ethereal Infinite with energy saving mode offers a practical solution for reducing your energy consumption and saving money on your electricity bill.

In addition, our energy saving mode is specifically designed to cater to the needs to low-light corals, while still providing sufficient illumination for higher-light species.  This flexibility allows you to create a diverse and thriving aquarium environment.

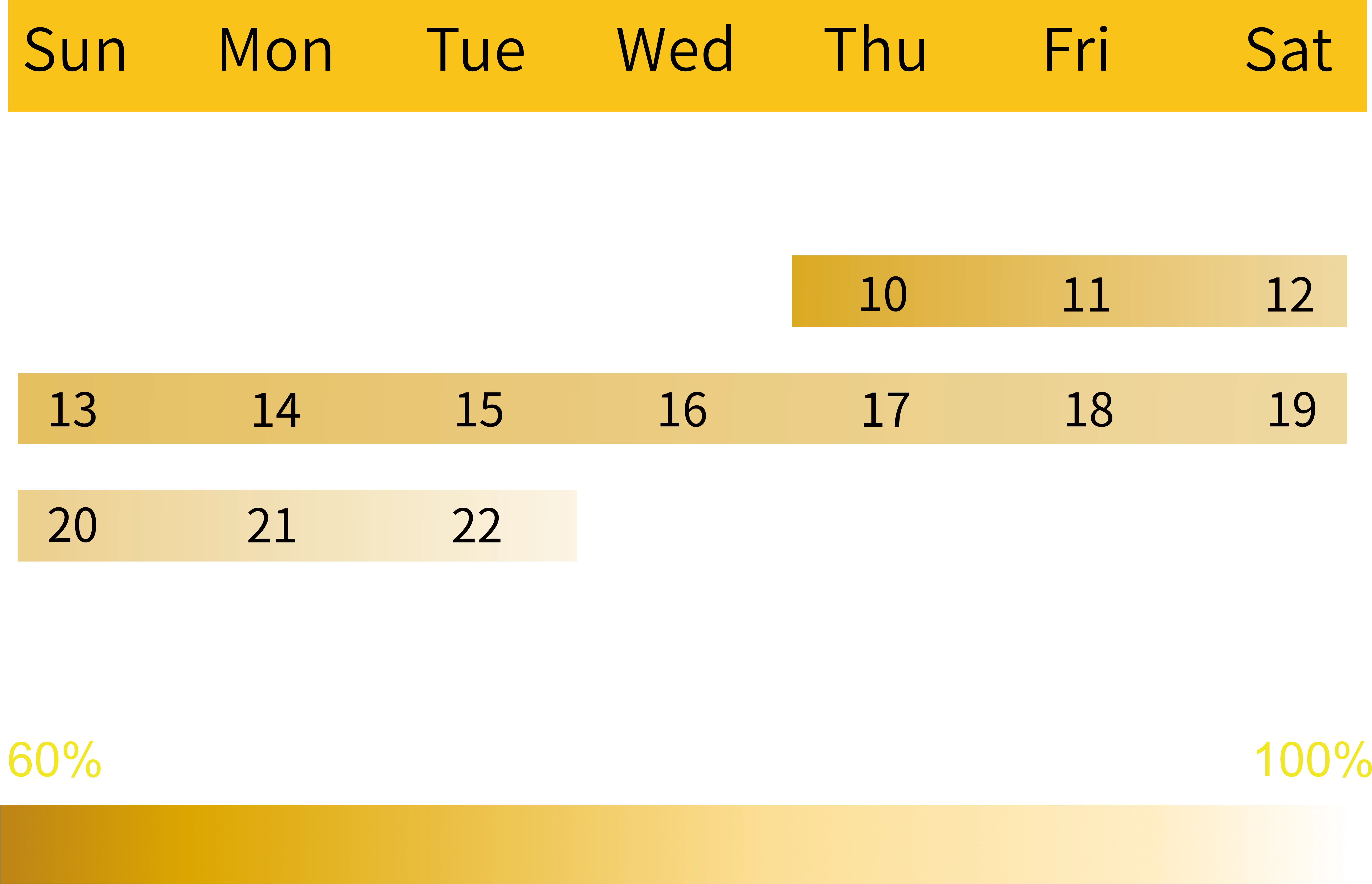

  • Normal mode: Over an 8-month period

  • Power-Saving Mode: Over an 8-month period

Results may vary depends on aquarium size, water parameters and other variables.  Please acclimate your corals to adapt to this energy-saving mode slowly.

Experience the Beauty of Coral Habitats from Around the Globe

With our Ethereal Infinite LED fixture, you can recreate the stunning beauty of coral reefs from iconic locations like the Great Barrier Reef, Sabah, Bali, Palawan and Okinawa.

Our innovative Coral Habitat Regions feature allows you to select your desired region, and our fixture will automatically adjust its setting to mimic the natural light conditions, dawn and dusk cycles, and seasonal variations of that specific habitat.

By providing the ideal lighting conditions for your corals, you'll foster a healthy and vibrant underwater environment where your marine life can flourish.

Coral Habitat Regions Presets

  • Natural Light Conditions

    50%-80%

  • Dawn and Dusk Cycles

    5:30am-5:30pm

  • Australia 0

  • Sabah 0

  • Bali 0

  • Palawan 0

  • Okinawa 0

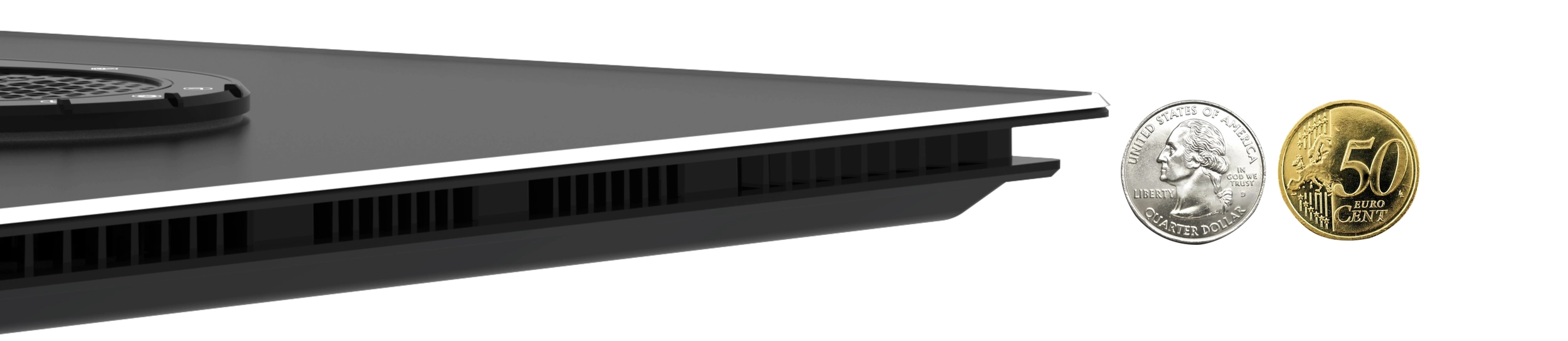

Lightweight, Durable, and
High-Performance

Our Ethereal Infinite LED fixture is crafted from premium aluminum alloy, and is only 1¼"(3.25cm) in thickness.

Aluminum alloy's excellent heat-conducting properties allow our fixture to efficiently dissipate the heat generated by its 276 LED chips, ensuring optimal performance and longevity.

  • Multiple full spectrums

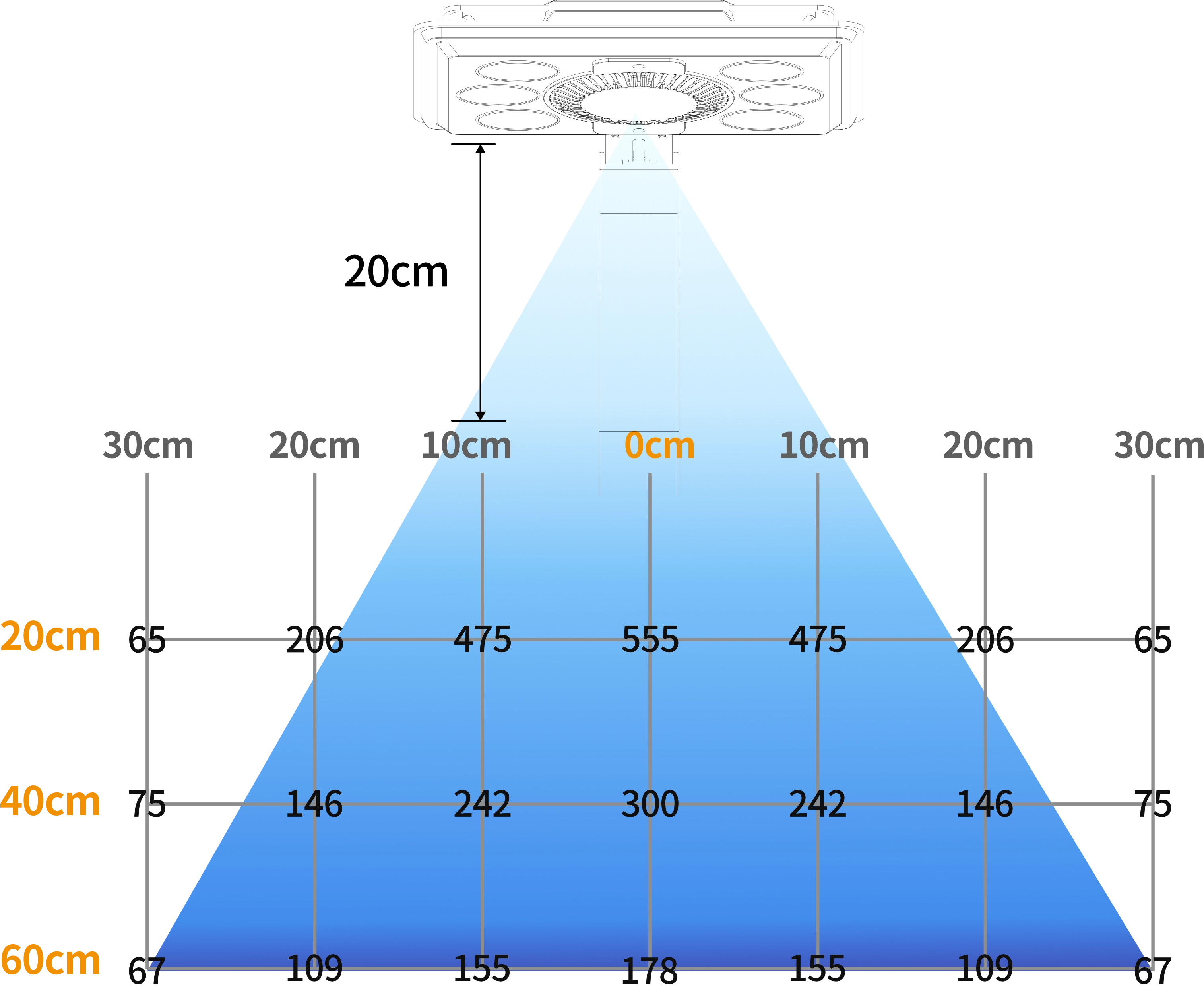

  • PAR statistics

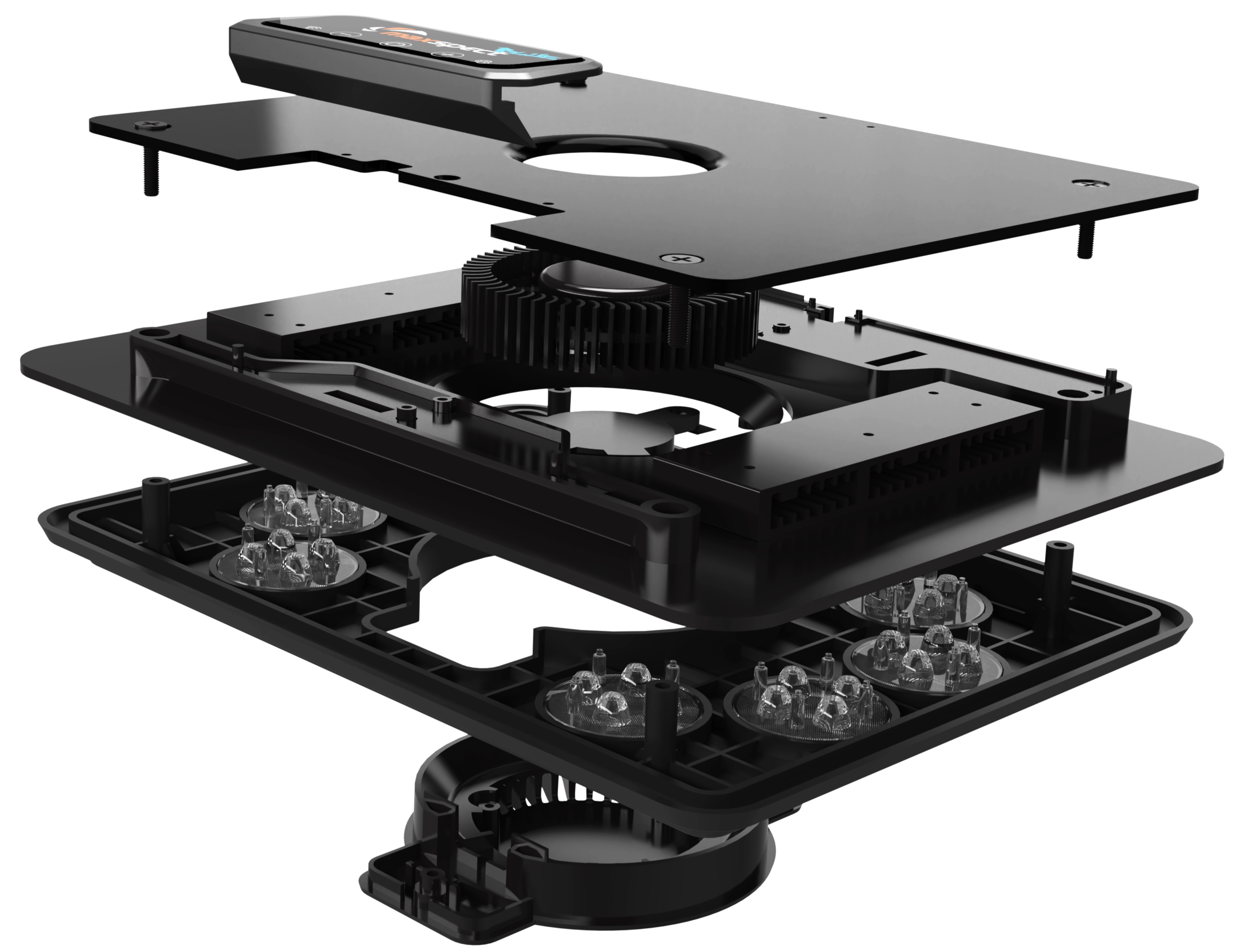

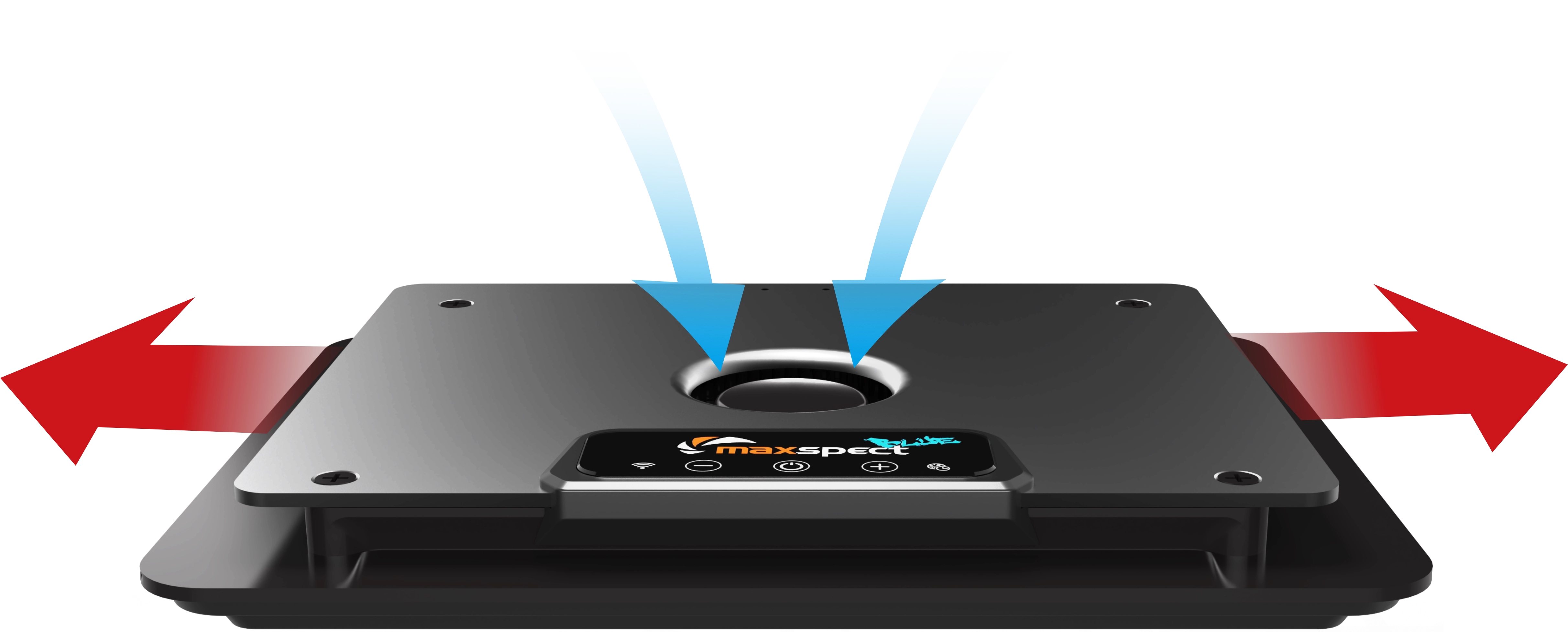

  • Smart cooling system

  • Sync-G Cloud app control

  • Acclimation mode

  • Lunar Cycle

  • Light shade

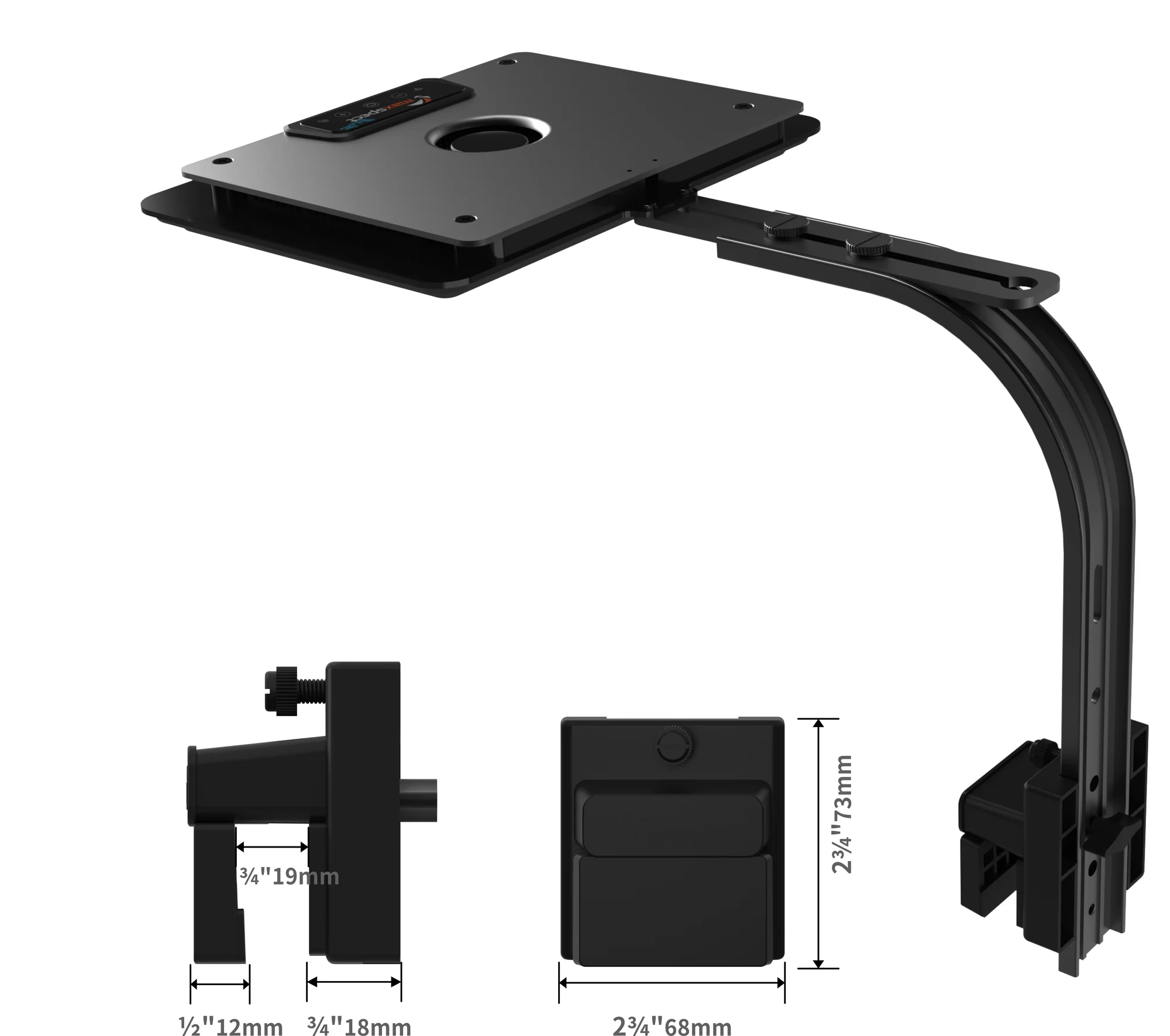

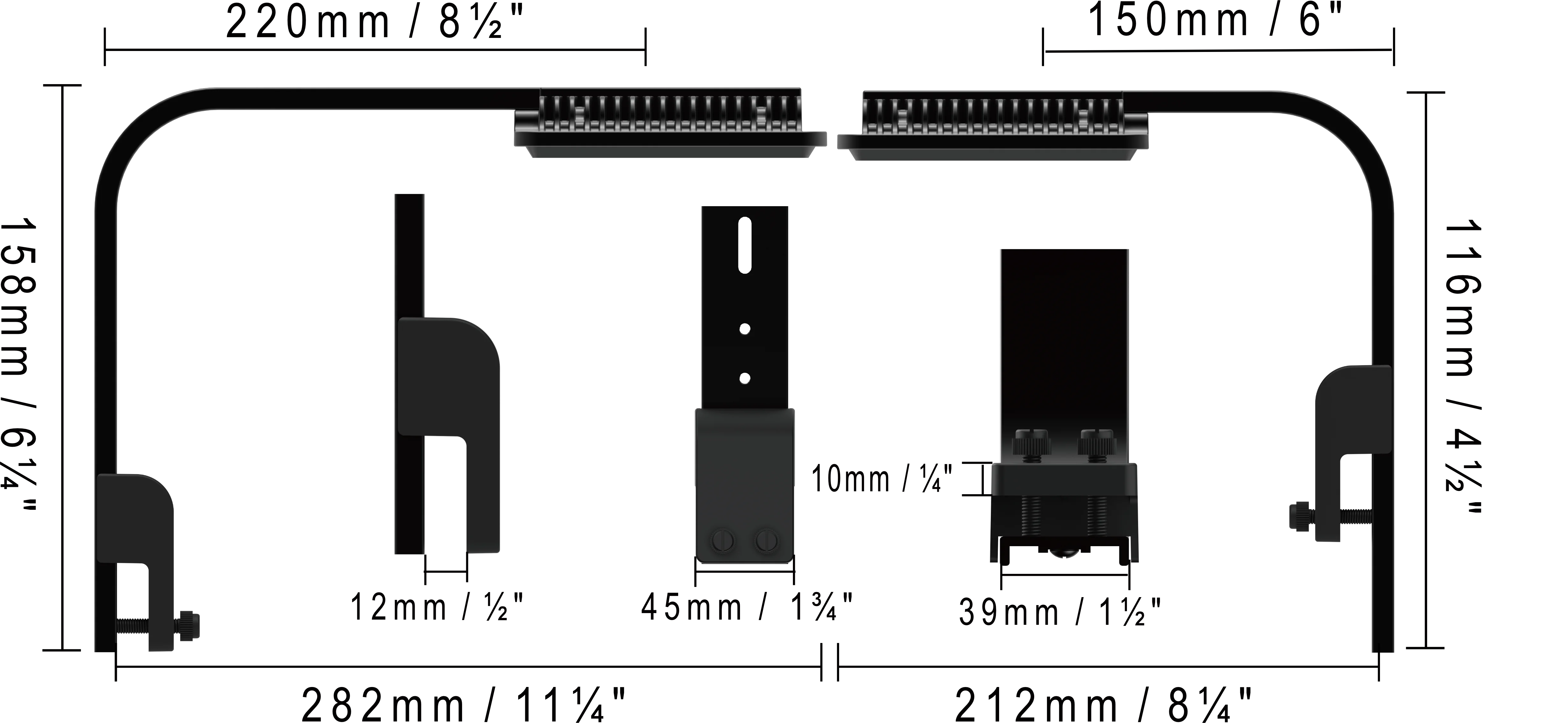

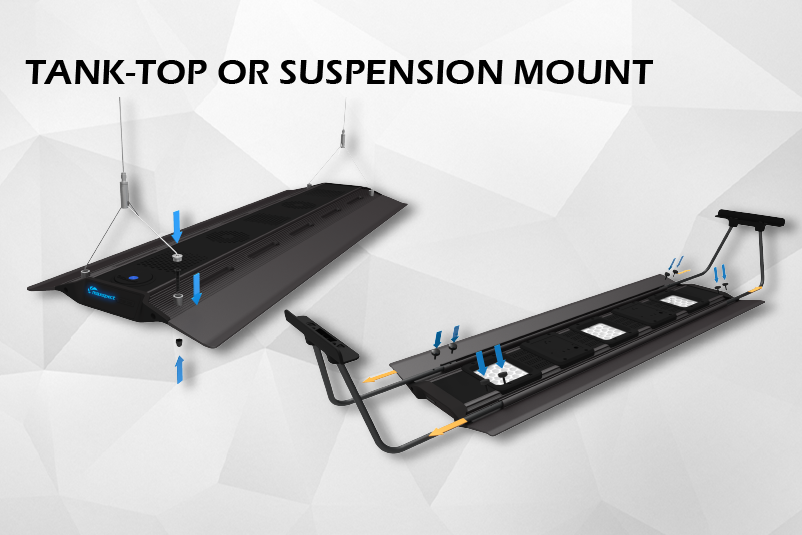

  • Mounting system

  • · Multiple full spectrums

  • · PAR statistics

  • · Smart cooling system

  • · Sync-G Cloud app control

  • · Acclimation mode

  • · Lunar cycle

  • · Light shade

  • · Mounting system

The Ethereal Infinite will automatically turns off when the fixture is flipped upwards during maintenance.

Specifications

Model Wattage Weight (Fixture) Dimensions (L x W x H)
E8-230 230w 3.55 lbs (1613g) 13" x 10" x 1¼" (33 x 25.5 x 3.25cm)

frontpage

Read more …Ethereal Infinite

  • Hits: 14009

Written by Steven on . Posted in Innovate Series.

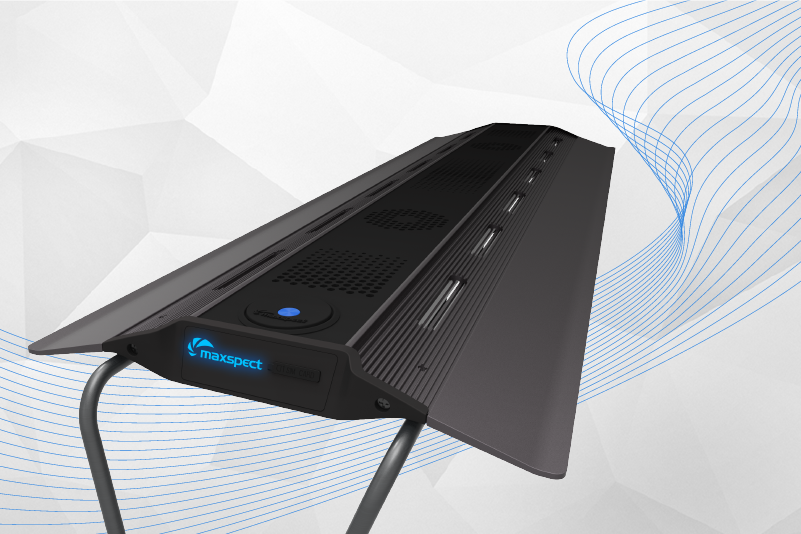

RSX

  • Brief: Streamline and low-profile

Streamline and Low-profile

Full spectrum colors on a high-performance light aluminum body

Features

  • One-stop lighting solution for your aquarium

  • Single piece 6063 aluminum body

  • Well proven and time-tested technology

  • Optional wireless controllability with iOS or Android Devices

  • Three models to choose from

  • on-board advanced controller with oled display

  • Mimicking nature from dawn to dusk

RSX Marine par distribution heatmap

  • R 5 15

  • R 5 16

  • R 5 17

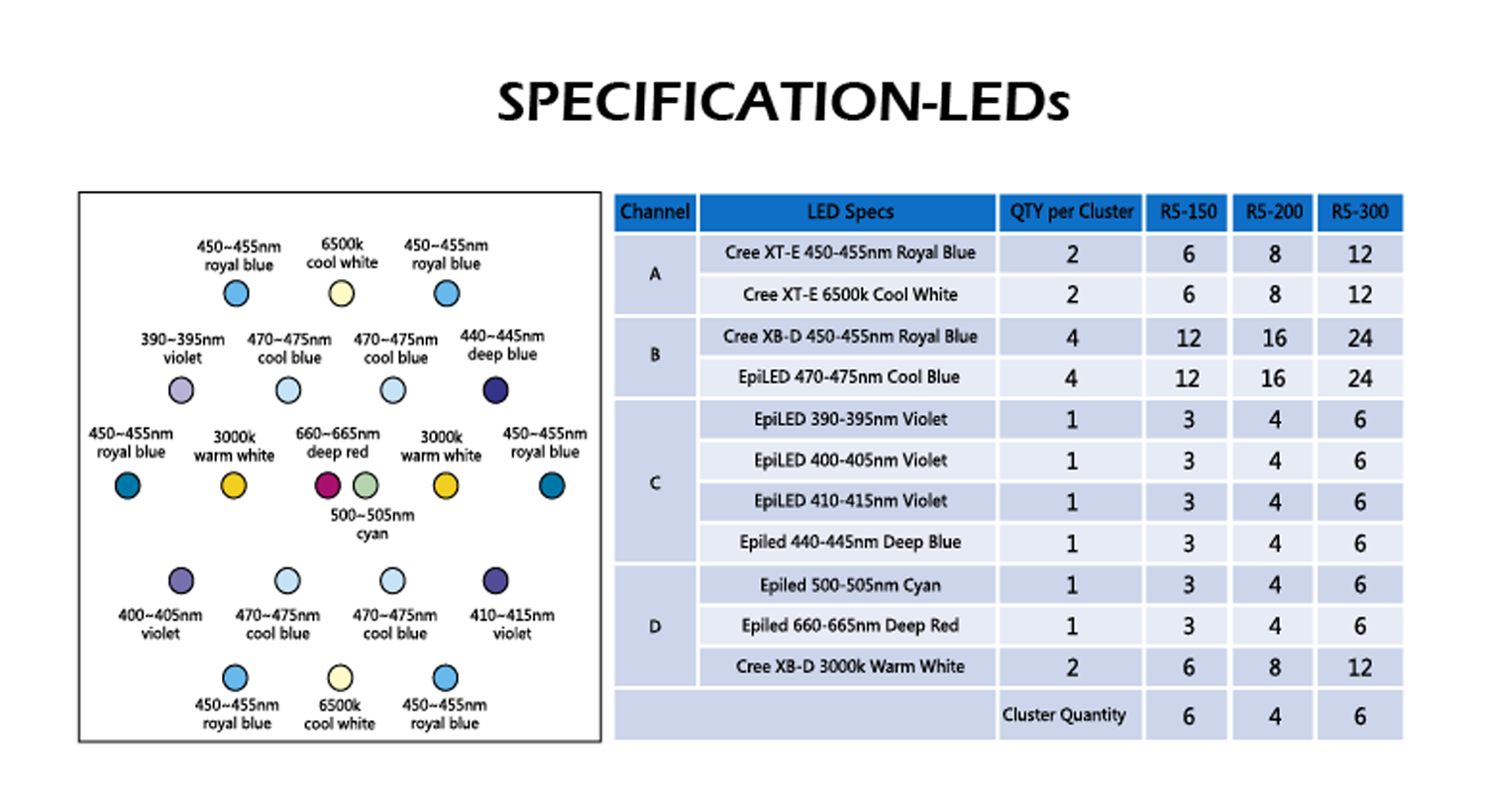

RSX Marine LED Specification

  • R 5 S 1

  • R 5 S 2

R 5 130 A

Channel Led Specs RSX/RSXF-150 RSX/RSXF-200 RSX/RSXF-300
A Cree XT-E 450-455nm Royal Blue 6 8 12
Cree XT-E 6500k Cool White 6 8 12
B Cree XB-D 450-455nm Royal Blue 12 16 24
EpiLED 470-475nm Cool Blue 12 16 24
C EpiLED 390-395nm Violet 3 4 6
EpiLED 400-405nm Violet 3 4 6
EpiLED 410-415nm Violet 3 4 6
EpiLED 440-445nm Deep Blue 3 4 6
D EpiLED 500-505nm Cyan 3 4 6
EpiLED 660-665nm Deep Red 3 4 6
Cree XB-D 3000K Warm White 6 8 12
Cluster Quantity 3 4 6

More Specifications

  • RS-50

    Channel Led Specs R5-50
    A Cree XT-E 450-455nm Royal Blue 2
    Cree XT-E 6500k Cool White 2
    B Cree XB-D 450-455nm Royal Blue 4
    EpiLED 470-475nm Cool Blue 4
    C EpiLED 390-395nm Violet 1
    EpiLED 400-405nm Violet 1
    EpiLED 410-415nm Violet 1
    EpiLED 440-445nm Deep Blue 1
    D EpiLED 500-505nm Cyan 1
    EpiLED 660-665nm Deep Red 1
    Cree XB-D 3000K Warm White 2
    Cluster Quantity 1

  • RS-100

    Channel Led Specs R5-100
    A Cree XT-E 450-455nm Royal Blue 4
    Cree XT-E 6500k Cool White 4
    B Cree XB-D 450-455nm Royal Blue 8
    EpiLED 470-475nm Cool Blue 8
    C EpiLED 390-395nm Violet 2
    EpiLED 400-405nm Violet 2
    EpiLED 410-415nm Violet 2
    EpiLED 440-445nm Deep Blue 2
    D EpiLED 500-505nm Cyan 2
    EpiLED 660-665nm Deep Red 2
    Cree XB-D 3000K Warm White 4
    Cluster Quantity 2

  • RS-150

    Channel Led Specs R5-150
    A Cree XT-E 450-455nm Royal Blue 6
    Cree XT-E 6500k Cool White 6
    B Cree XB-D 450-455nm Royal Blue 12
    EpiLED 470-475nm Cool Blue 12
    C EpiLED 390-395nm Violet 3
    EpiLED 400-405nm Violet 3
    EpiLED 410-415nm Violet 3
    EpiLED 440-445nm Deep Blue 3
    D EpiLED 500-505nm Cyan 3
    EpiLED 660-665nm Deep Red 3
    Cree XB-D 3000K Warm White 6
    Cluster Quantity 3

  • RS-200

    Channel Led Specs R5-200
    A Cree XT-E 450-455nm Royal Blue 8
    Cree XT-E 6500k Cool White 8
    B Cree XB-D 450-455nm Royal Blue 16
    EpiLED 470-475nm Cool Blue 16
    C EpiLED 390-395nm Violet 4
    EpiLED 400-405nm Violet 4
    EpiLED 410-415nm Violet 4
    EpiLED 440-445nm Deep Blue 4
    D EpiLED 500-505nm Cyan 4
    EpiLED 660-665nm Deep Red 4
    Cree XB-D 3000K Warm White 8
    Cluster Quantity 4

  • RS-300

    Channel Led Specs R5-300
    A Cree XT-E 450-455nm Royal Blue 12
    Cree XT-E 6500k Cool White 12
    B Cree XB-D 450-455nm Royal Blue 24
    EpiLED 470-475nm Cool Blue 24
    C EpiLED 390-395nm Violet 6
    EpiLED 400-405nm Violet 6
    EpiLED 410-415nm Violet 6
    EpiLED 440-445nm Deep Blue 6
    D EpiLED 500-505nm Cyan 6
    EpiLED 660-665nm Deep Red 6
    Cree XB-D 3000K Warm White 12
    Cluster Quantity 6

RSX Freshwater LED Specification

R 5 130 A

Channel Led Specs QTY per Cluster RSXF-150 RSXF-200 RSXF-300
A Cool White 6000K 4 12 16 24
Warm White 3000K 4 12 16 24
B Green 520nm 12(3 in 1 RGB) 36 48 72
C Blue 450nm 12(3 in 1 RGB) 36 48 72
D Red 620nm 12(3 in 1 RGB) 36 48 72

More Specifications

  • RS-50

    Channel Led Specs R5-50
    A Cree XT-E 450-455nm Royal Blue 2
    Cree XT-E 6500k Cool White 2
    B Cree XB-D 450-455nm Royal Blue 4
    EpiLED 470-475nm Cool Blue 4
    C EpiLED 390-395nm Violet 1
    EpiLED 400-405nm Violet 1
    EpiLED 410-415nm Violet 1
    EpiLED 440-445nm Deep Blue 1
    D EpiLED 500-505nm Cyan 1
    EpiLED 660-665nm Deep Red 1
    Cree XB-D 3000K Warm White 2
    Cluster Quantity 1

  • RS-100

    Channel Led Specs R5-100
    A Cree XT-E 450-455nm Royal Blue 4
    Cree XT-E 6500k Cool White 4
    B Cree XB-D 450-455nm Royal Blue 8
    EpiLED 470-475nm Cool Blue 8
    C EpiLED 390-395nm Violet 2
    EpiLED 400-405nm Violet 2
    EpiLED 410-415nm Violet 2
    EpiLED 440-445nm Deep Blue 2
    D EpiLED 500-505nm Cyan 2
    EpiLED 660-665nm Deep Red 2
    Cree XB-D 3000K Warm White 4
    Cluster Quantity 2

  • RS-150

    Channel Led Specs R5-150
    A Cree XT-E 450-455nm Royal Blue 6
    Cree XT-E 6500k Cool White 6
    B Cree XB-D 450-455nm Royal Blue 12
    EpiLED 470-475nm Cool Blue 12
    C EpiLED 390-395nm Violet 3
    EpiLED 400-405nm Violet 3
    EpiLED 410-415nm Violet 3
    EpiLED 440-445nm Deep Blue 3
    D EpiLED 500-505nm Cyan 3
    EpiLED 660-665nm Deep Red 3
    Cree XB-D 3000K Warm White 6
    Cluster Quantity 3

  • RS-200

    Channel Led Specs R5-200
    A Cree XT-E 450-455nm Royal Blue 8
    Cree XT-E 6500k Cool White 8
    B Cree XB-D 450-455nm Royal Blue 16
    EpiLED 470-475nm Cool Blue 16
    C EpiLED 390-395nm Violet 4
    EpiLED 400-405nm Violet 4
    EpiLED 410-415nm Violet 4
    EpiLED 440-445nm Deep Blue 4
    D EpiLED 500-505nm Cyan 4
    EpiLED 660-665nm Deep Red 4
    Cree XB-D 3000K Warm White 8
    Cluster Quantity 4

  • RS-300

    Channel Led Specs R5-300
    A Cree XT-E 450-455nm Royal Blue 12
    Cree XT-E 6500k Cool White 12
    B Cree XB-D 450-455nm Royal Blue 24
    EpiLED 470-475nm Cool Blue 24
    C EpiLED 390-395nm Violet 6
    EpiLED 400-405nm Violet 6
    EpiLED 410-415nm Violet 6
    EpiLED 440-445nm Deep Blue 6
    D EpiLED 500-505nm Cyan 6
    EpiLED 660-665nm Deep Red 6
    Cree XB-D 3000K Warm White 12
    Cluster Quantity 6

Dimensions

 Model Dimension Suit for Tank
 RSX/RSXF-150  700 x 260 x 170mm / 27.6 x 10.2 x 6.7" 70-95cm / 27.6-37.4"
 RSX/RSXF-200  839 x 260 x 170mm / 33" x 10.2 x 6.7" 85-102xm / 33.5-47.2"
 RSX/RSXF-300  1210 x 260 x 170mm / 47.6 x 10.2 x 6.7" 120-150cm / 47.2-59"
Model RsX/RSXF-150 RSX/RSXF-200 RSX/RSXF-300
Cluster per Model 3 4 6
Dimension 700×260
×31mm
27.6"×10.2"
×1.2"		 839×260
×31mm
33"×10.2"
×1.2"		 1210×260
×31mm
47.6"×10.2"
×1.2"
Net Weight 3.1kg 4kg 5.5kg
Suit for Tank 70-95cm
27.6"-37.4"		 85-120cm
33.5"-47.2"		 120-150cm
47.2"-59"
Rate Power 160W 195W 305W
PSU Meanwell Lrs-200-36
Input:4A
/115VAC,
2.2A
/220VAC
Output:32-40V
Weight:
1.23kg		 Meanwell Lrs-200-36
Input:4A
/115VAC,
2.2A
/220VAC
Output:32-40V
Weight:
1.23kg		 Meanwell Lrs-350-36
Input:6.8A
/115VAC,
3.4A
/220VAC
Output:32-40V
Weight:
1.23kg

More Specifications

  • RS-50

    Model R5-50
    Cluster per Model 1
    Dimension 236×260
    ×31mm
    9.3"×10.2"
    ×1.2"
    Net Weight 0.9kg
    Suit for Tank 40-60cm
    15.7"-23.6"
    Rate Power 50W
    PSU
    Input: 100-240VAC, 2.5A
    Output: 15V, 6A
    Weight:
    448g

  • RS-100

    Model R5-100
    Cluster per Model 2
    Dimension 468×260
    ×31mm
    18.4"×10.2"
    ×1.2"
    Net Weight 2.1kg
    Suit for Tank 45-70cm
    17.7"-27.6"
    Rate Power 115W
    PSU Meanwell Lrs-150-36
    Input:3A
    /115VAC,
    1.7A
    /220VAC
    Output:32-40V
    Weight:
    939g

  • RS-150

    Model R5-150
    Cluster per Model 3
    Dimension 700×260
    ×31mm
    27.6"×10.2"
    ×1.2"
    Net Weight 3.1kg
    Suit for Tank 70-95cm
    27.6"-37.4"
    Rate Power 160W
    PSU Meanwell Lrs-200-36
    Input:4A
    /115VAC,
    2.2A
    /220VAC
    Output:32-40V
    Weight:
    1.23kg

  • RS-200

    Model R5-200
    Cluster per Model 4
    Dimension 839×260
    ×31mm
    33"×10.2"
    ×1.2"
    Net Weight 4kg
    Suit for Tank 85-120cm
    33.5"-47.2"
    Rate Power 195W
    PSU Meanwell Lrs-200-36
    Input:4A
    /115VAC,
    2.2A
    /220VAC
    Output:32-40V
    Weight:
    1.23kg

  • RS-300

    Model R5-300
    Cluster per Model 6
    Dimension 1210×260
    ×31mm
    47.6"×10.2"
    ×1.2"
    Net Weight 5.5kg
    Suit for Tank 120-150cm
    47.2"-59"
    Rate Power 305W
    PSU Meanwell Lrs-350-36
    Input:6.8A
    /115VAC,
    3.4A
    /220VAC
    Output:32-40V
    Weight:
    1.23kg

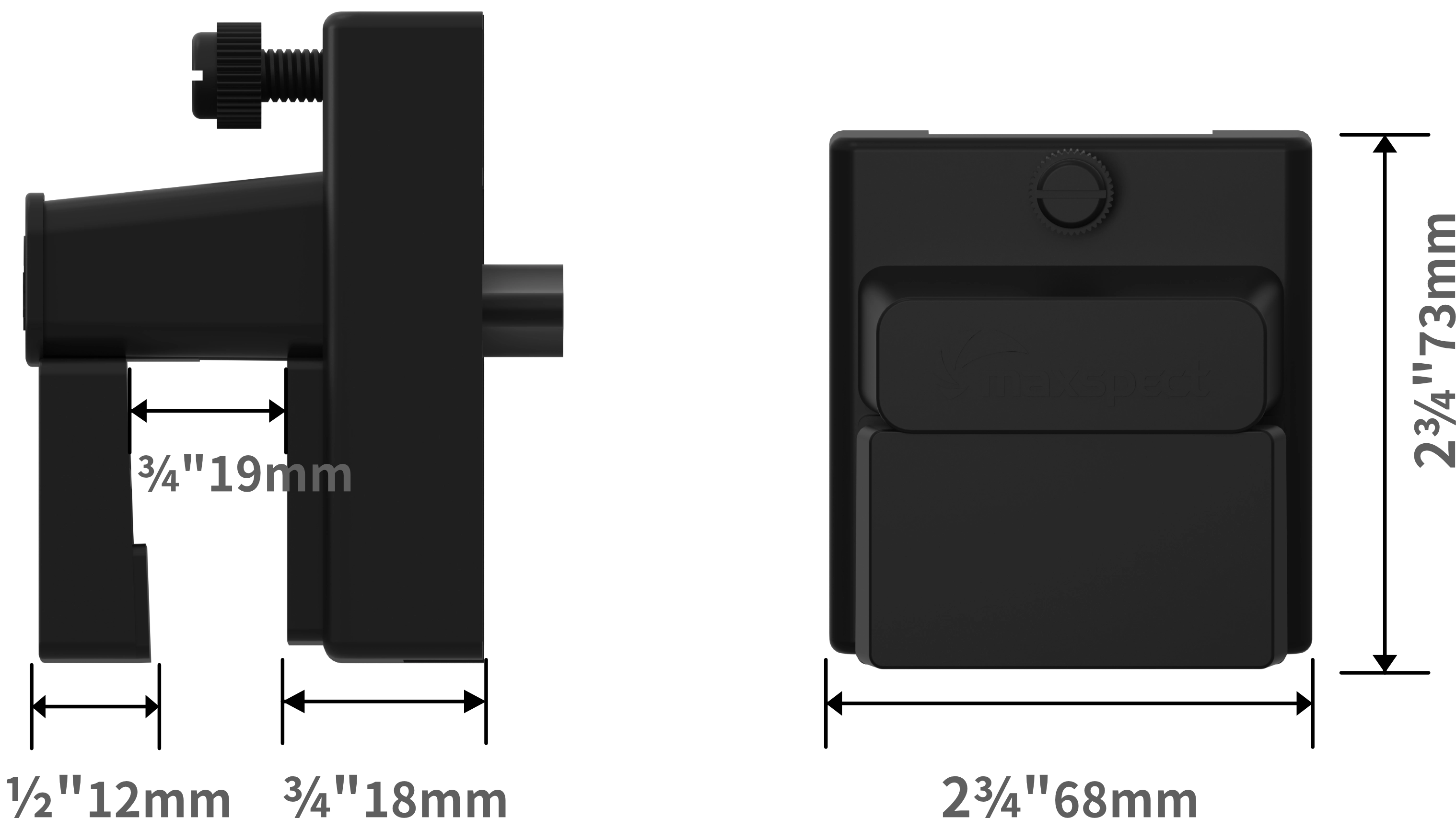

Mount Specification

R 5 19

Read more …RSX

  • Hits: 12575

Written by Steven on . Posted in Innovate Series.

Gyre 300 Series

  • Brief: Near-silent operation

Sine Wave Technology

Sine Wave Technology allows the Gyre 300 pumps to operate at near-silent level.

Almost Silent

  • Sine Wave Pattern

    Electricity current alternates in a much smoother pendulum while using Sine Wave Technology

  • Sine Wave Pattern

    Sine Wave Technology Decibel Level

  • Traditional Pattern

    Electricity current alternates in a very sharp pattern while using traditional Technology

  • Traditional Pattern

    Traditional Technology Decibel Level

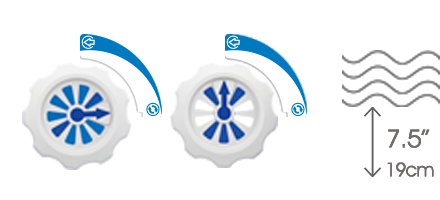

Flow Director

  • Enhances water flow direction, moving water to to any place within your tank more precisely.

  • Shields the cages and rotors from light from your fixture, slows down algae growth on them and reduces the need of frequent maintenance.

  • The Gyre pump can be positioned closer to the surface of the water, improving water surface breaking effects but without creating air vortices.

Features

  • One-Controller-Two-Pumps System

    The Gyre 300 Series comes with a one-controller-two-pumps system(Pump XF330 and XF350 could be paired together), which allows users to program the paired pumps to run different water movement programs.

  • Syna-G App support for iOS and Android devices

    The Gyre 300 Series can be controlled by iOS and Android devices through the Syna-G app.

  • New Custom Wave Mode with Syna-G App

    The new "Custom Wave" mode allows users to very easily setup up to three different water movement modes which will be cycled through one after the other.

Dimensions

010

  • 009

  • 011

Specifications

Model Name XF330 XF350
Power Consumption 5-35W 5-52W
Flow Rate 9,000L/H (2,377 US Gal/H) 20,000L/H (5,283 US Gal/H)
Suitable for Aquarium 100-500L/26-132 US Gal 300-3,000L/79-792 US Gal
Power Supply Unit 100-240V/50-60Hz 100-240V/50-60Hz
Dimension L265 x W65 x H34mm
L10.4 x W2.6 x H1.3inch		 L325 x W75 x H38mm
L12.8 x W3x H1.5inch
Weight(Pump Unit) 575g/20.3oz 645g/22.8oz
Cable: pump to controller 3m/9.8ft 3m/9.8ft
Cable: PSU to controller 1.5m/4.9ft 1.5m/4.9ft
Glass thickness: standard 15mm/0.59inch Up to 20mm/0.79inch *
Glass thickness: Reinforcement 20mm/0.79inch Up to 25mm/0.98inch **

  • XF 330

    Model Name XF330
    Power Consumption 5-35W
    Flow Rate 9,000L/H (2,377 US Gal/H)
    Suitable for Aquarium 100-500L/26-132 US Gal
    Power Supply Unit 100-240V/50-60Hz
    Dimension L265 x W65 x H34mm
    L10.4 x W2.6 x H1.3inch
    Weight(Pump Unit) 575g/20.3oz
    Cable: pump to controller 3m/9.8ft
    Cable: PSU to controller 1.5m/4.9ft
    Glass thickness: standard 15mm/0.59inch
    Glass thickness: Reinforcement 20mm/0.79inch

  • XF 350

    Model Name XF350
    Power Consumption 5-52W
    Flow Rate 20,000L/H (5,283 US Gal/H)
    Suitable for Aquarium 300-3,000L/79-792 US Gal
    Power Supply Unit 100-240V/50-60Hz
    Dimension L325 x W75 x H38mm
    L12.8 x W3x H1.5inch
    Weight(Pump Unit) 645g/22.8oz
    Cable: pump to controller 3m/9.8ft
    Cable: PSU to controller 1.5m/4.9ft
    Glass thickness: standard Up to 20mm/0.79inch *
    Glass thickness: Reinforcement Up to 25mm/0.98inch **

*Up to 15mm or 0.59inch when the two water outlet direction are angled perpendicular to each other.
** Up to 20mm or 0.79inch when the two water outlet direction are angled perpendicular to each other.

Read more …Gyre 300 Series

  • Hits: 27800

Written by Steven on . Posted in Jump Series.

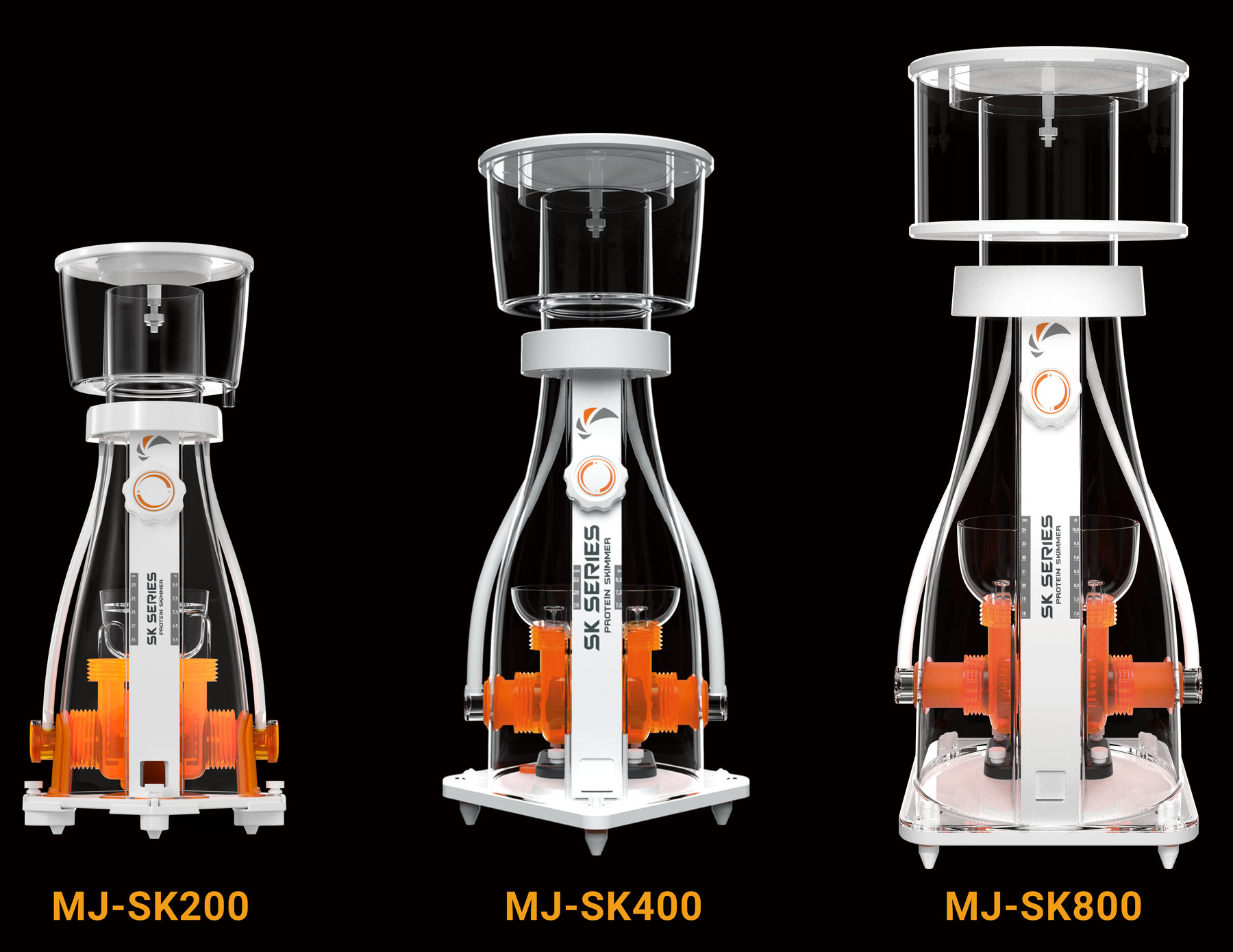

MJ-SK Skimmer

  • Brief: Dual intakes & dual needle wheels

The best value for your money

Dual Intake + Dual Needle Wheel Protein Skimmer

  • Near-Silent
  • Precision Front Dial
  • Dual Intake
  • Dual Needle Wheel
  • Overflow Protection
  • DC Flow Control
  • Feed Mode
  • Start Delay

Patented dual Needle Wheel design

Integrated, efficient and streamline

Near-silent Operation With Sine Wave Technology

Sine Wave Pattern

Electricity current alternates in a much smoother pendulum while using Sine Wave Technology

Sine Wave Technology Decibel Level.


Traditional Pattern

Electricity current alternates in a very sharp pattern while using traditional technology

Traditional technology Decibel Level.

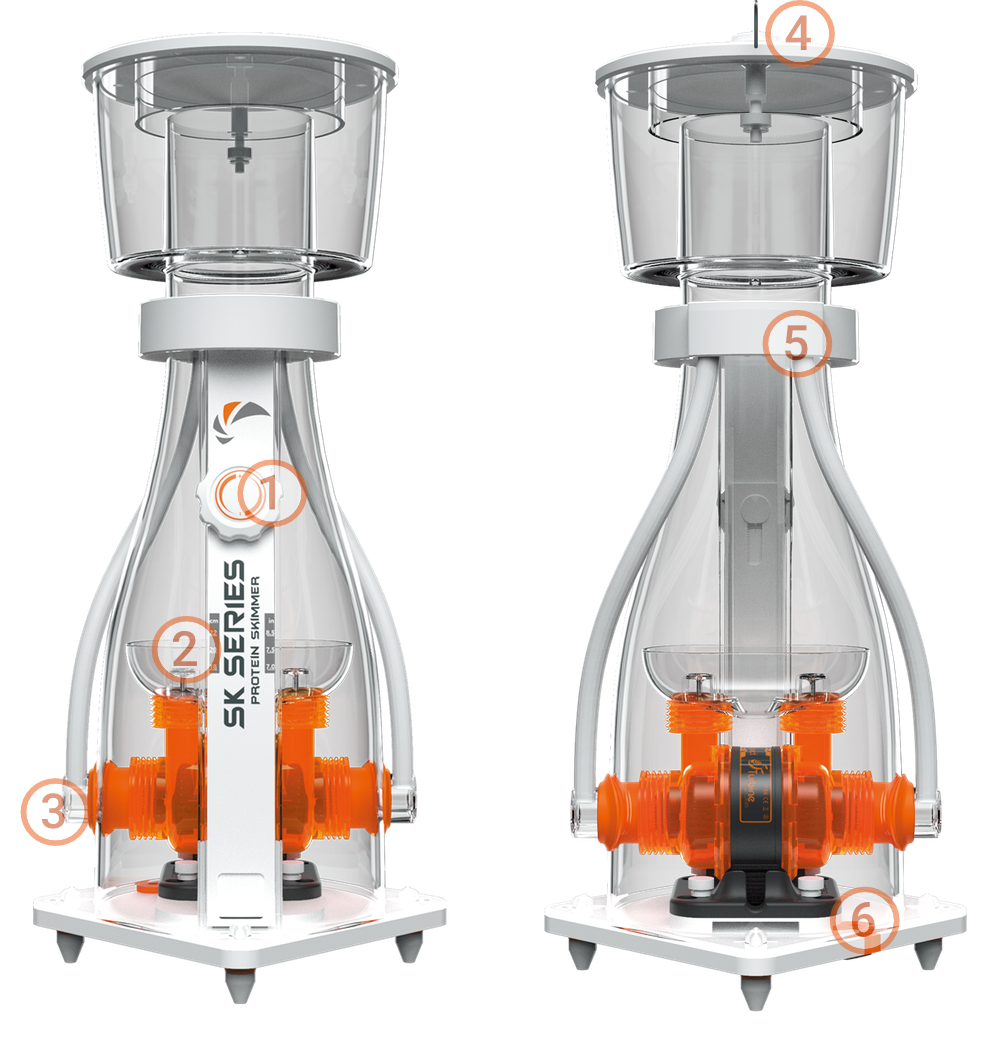

  1. Front Dial
  2. Dual Intake
  3. Dual Outlet
  4. Overflow Detection Sensor
  5. Air Intake
  6. Can be taken apart easily

DC Powered Skimmer with Smart Control

  • SK200 controller

  • SK400 / SK800 controller

Features loaded: Feeding mode, Overflow Protection, Start Delay and more.

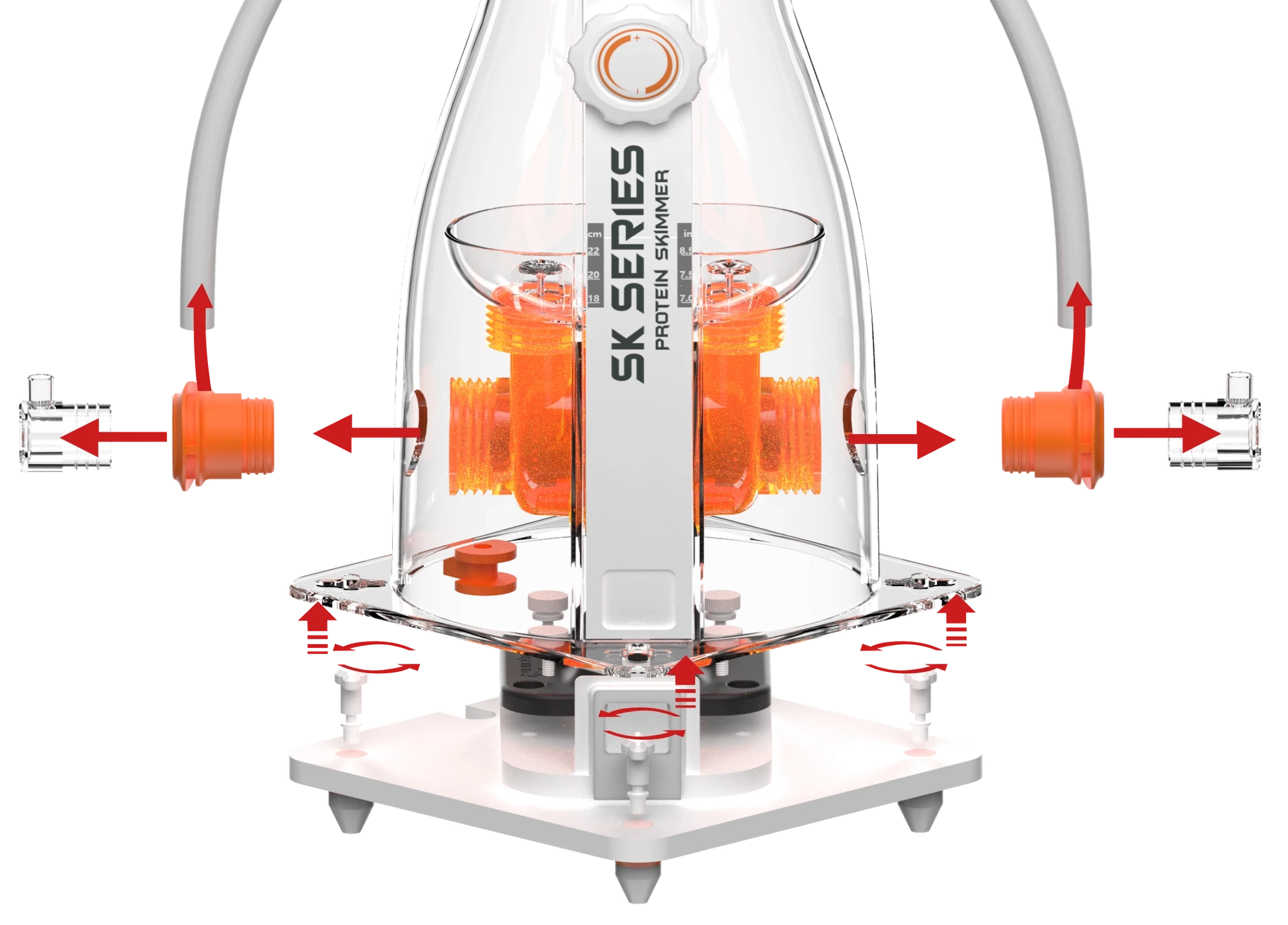

Quick releases makes maintenance easy

Similarly, clearning and maintenance of the skimmer is made easy with the quick release design.

Innovative designs - not your typical skimmer

Configuration

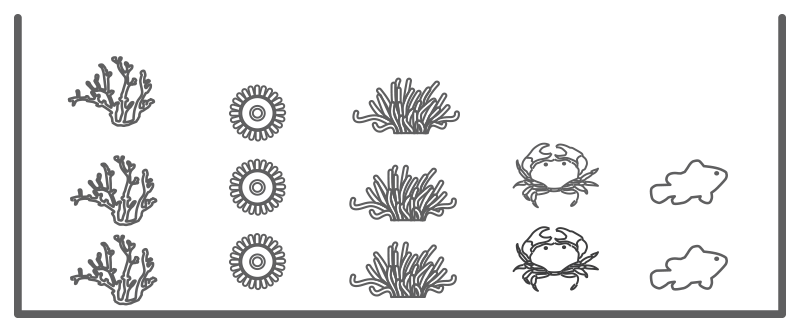

  • High Bioload

    Suitable for reef aquariums with many corals, invertebrates, anemones, and fishes; or fish-only aquariums with a lot of fishes.

    SK-200 260L/68Gal
    SK-400 400L/100Gal
    SK-800 900L/237Gal

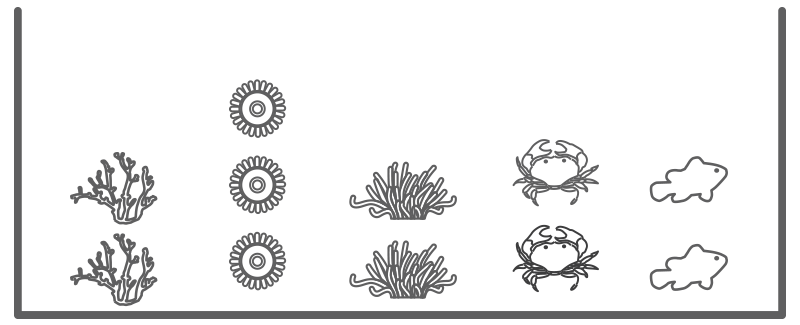

  • Medium Bioload

    Suitable for reef aquariums with some corals, invertebrates, anemones and fishes; or fish-only aquariums with some fishes.

    SK-200 455L/120Gal
    SK-400 700L/185Gal
    SK-800 1800L/475Gal

  • Low Bioload

    Suitable for reef aquariums with only a few corals, invertebrates, anemones and fishes; or fish-only aquariums with only a few fishes.

    SK-200 650L/171Gal
    SK-400 1000L/265Gal
    SK-800 2700L/713Gal
 Model MJ-SK200 MJ-SK400 MJ-SK800
Wattage 15w 25w 50w
High Bioload 260L/68Gal 400L/100Gal 900L/237Gal
Medium Bioload 455L/120Gal 700L/185Gal 1800L/475Gal
Low Bioload 650L/171Gal 1000L/265Gal 2700L/713Gal
Water Level 16-20cm/6.3"-7.9" 18-22cm/7"-8½" 19-24cm/7½"-9½"
Height 474mm/18.7" 555.5mm/21¾"  600mm/23½"
 Footprint  165x165mm/6.5"x6.5" 200x200mm/7¾"x7¾" 270x250mm/10½"x9¾ "
 Water Flow 600LPH/58GPH 1200LPH/317GPH 1800LPH/475GPH
Air Intake 300LPH/79GPH 600LPH/158GPH 800LPH/211GPH

frontpage

Read more …MJ-SK Skimmer

  • Hits: 20589

Written by Steven on . Posted in Jump Series.

MJ-GF Pumps

  • Brief: The new pump has a more powerful and customizable water flow.
The new MJ-GF Gyre Flow Pump, is designed to bring your aquarium to life with a more powerful and customizable water flow. The upgraded Jump Gyre Flow Pump features a new controller and flow directors, ensuring optimal performance for your aquarium.

Control your pump with ease

  • Group Member Setting

  • Simplify your flow control with one controller

  • Multiple speeds to match your aquarium

The control center of your pumps

  • Speed Setting
  • Frequence Setting
  • Linkage Mode
  • Feeding Mode
  • Random Mode
  • Rapid Pulsing Mode
  • Slow Pulsing Mode
  • Gradual Speed Mode
  • Constant Speed Mode
  • Speed / Frequence / Time Indicator
  • Working Mode

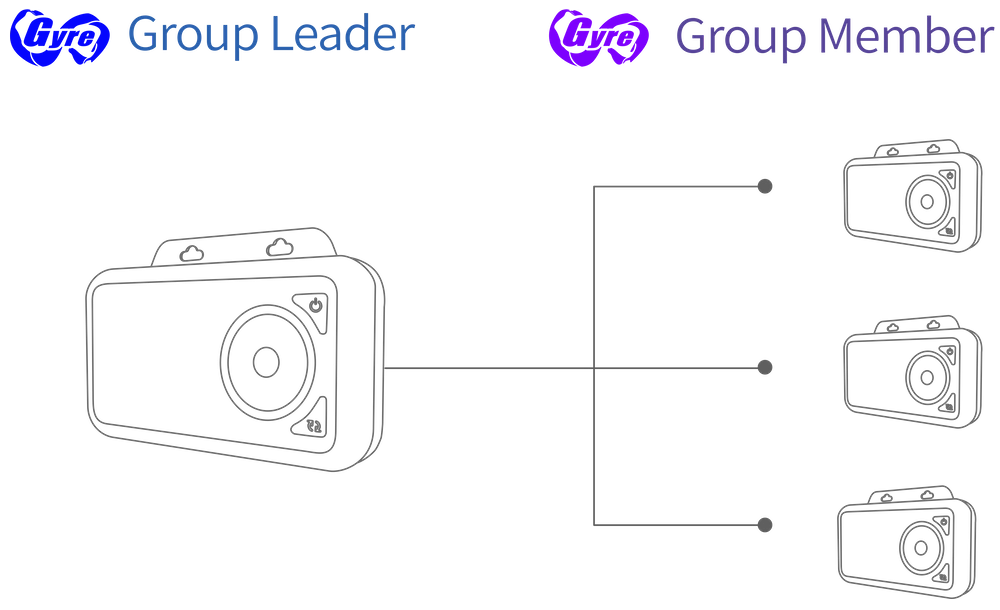

Collaborate with multiple pumps for better performance

Maximize your pumps efficiency with Link-Up Mode between one Group Leader and multiple Group Members.

Switch among multiple modes with our controller

  • Working Mode

  • Multiple Pumps Link-up Method

Achieve optimal performance with the Link-up Mode

  • Link Sync

  • Link Async

Water Movement Mode Sample Diagram

  • Mode Random

  • Mode Rapid Pulsing

  • Mode Slow Pulsing

  • Mode Gradual Speed

  • Mode Constant Speed

Perfect for optimal growth

  • Speed 1 4

  • Speed 5 8

  • Speed 9 10

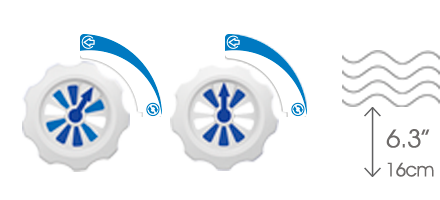

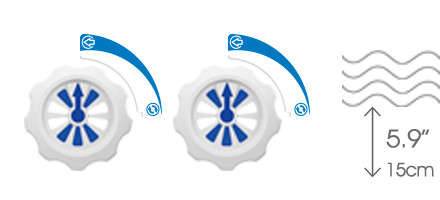

Revolutionize your water flow with the new flow cage

Flow cage with 360° water flow directions
Take control of your water flow direction with the adjustable flow cages for better circulation.
Clip-on flow cage

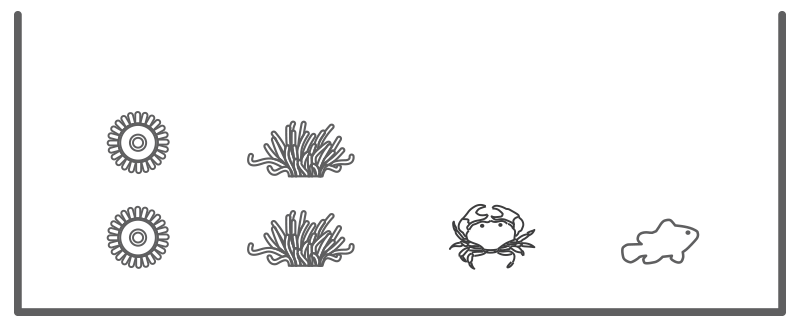

SUPERIOR CROSSFLOW TECHNOLOGY EXPLAINED

Comparing to traditional powerheads and wavemakers, based on propeller nozzle technology, our latest gyre generator is based on crossflow technology.
Crossflow Technology
Propeller Nozzle Technology

Propeller nozzle technology

  • Dead spots with relatively poor water movement.
  • Very strong flow in the center, making coral placement very difficult.
  • Very weak flow near the other end of the aquarium.

Crossflow technology

  • Virtually no dead spots.
  • Evenly distributed flow rate throughout the entire aquarium.
  • Water bounces back from the other side to create a full circulation, ie. generating "gyre flows".

Specifications

  • MJ-GF 308

  • MJ-GF 316

 Model Name MJ-GF 308  MJ-GF 316
Dimension L225 x W81 x H41mm
L8¾" x W3¼" x H1½"		 L309 x W88 x H47mm
L12¼" x W3½" x H1¾"
Power Consumption 25W 45W
Flow Rate 8,000L/H (2,113 US Gal/H) 16,000 L/H (4,227 US Gal/H)
Suitable for Aquarium 50-500L / 13-132 US Gal 100-1000L / 26-264 US Gal
Weight (Pump Unit) 457g / 16.1oz 711g / 25.1oz
Glass Thickness: Standard 15mm / 0.59" 20mm / 0.79"

frontpage

Read more …MJ-GF Pumps

  • Hits: 10378

Written by Steven on . Posted in Jump Series.

MJ-DC Pump

  • Brief: Return pump

Near-Silent Operation

With Sine Wave Technology

  • Sine Wave Pattern

    Electricity current alternates in a much smoother pendulum while using Sine Wave Technology

  • Sine Wave Pattern

    Sine Wave Technology Decibel Level

  • Traditional Pattern

    Electricity current alternates in a very sharp pattern while using traditional Technology

  • Traditional Pattern

    Traditional Technology Decibel Level

Specifications

Model MJ-
DC6k		 MJ-
DC8k		 MJ-
DC10k		 MJ-
DC12k
Max
Flow		 6,000
L/H		 8,000
L/H		 10,000
L/H		 12,000
L/H
Voltage DC24V,
4A		 DC24V,
4A		 DC24V,
5A		 DC24V,
6.35A
Rate
Power		 70W 90W 100W 120W
Flow
head		 4.5m 4.5m 5m 5m
Dimensions 177x93
x78mm		 177x93
x78mm		 210x110
x93mm		 210x110
x93mm
Weight
(Pump
Unit)		 1.05kg/
2.3lbs		 1.05kg/
2.3lbs		 1.75kg/
3.9lbs		 1.75kg/
3.9lbs
Couplings 26mm/
1",
32mm/
1.25"		 26mm/
1",
32mm/
1.25"		 32mm/
1.25",
40mm/
1.5"		 32mm/
1.25",
40mm/
1.5"

  • MJ-DC6k

    Model MJ-
    DC6k
    Max
    Flow    		 6,000
    L/H
    Voltage DC24V,
    4A
    Rate
    Power    		 70W
    Flow
    head    		 4.5m
    Dimensions 177x93
    x78mm
    Weight
    (Pump
    Unit)    		 1.05kg/
    2.3lbs
    Couplings 26mm/
    1",
    32mm/
    1.25"

  • MJ-DC8k

    Model MJ-
    DC8k
    Max
    Flow    		 8,000
    L/H
    Voltage DC24V,
    4A
    Rate
    Power    		 90W
    Flow
    head    		 4.5m
    Dimensions 177x93
    x78mm
    Weight
    (Pump
    Unit)    		 1.05kg/
    2.3lbs
    Couplings 26mm/
    1",
    32mm/
    1.25"

  • MJ-DC10k

    Model MJ-
    DC10k
    Max
    Flow    		 10,000
    L/H
    Voltage DC24V,
    5A
    Rate
    Power    		 100W
    Flow
    head    		 5m
    Dimensions 210x110
    x93mm
    Weight
    (Pump
    Unit)    		 1.75kg/
    3.9lbs
    Couplings 32mm/
    1.25",
    40mm/
    1.5"

  • MJ-DC12k

    Model MJ-
    DC12k
    Max
    Flow    		 12,000
    L/H
    Voltage DC24V,
    6.35A
    Rate
    Power    		 120W
    Flow
    head    		 5m
    Dimensions 210x110
    x93mm
    Weight
    (Pump
    Unit)    		 1.75kg/
    3.9lbs
    Couplings 32mm/
    1.25",
    40mm/
    1.5"

Read more …MJ-DC Pump

  • Hits: 10809

Written by Steven on . Posted in Jump Series.

MJ-L260&290

  • Brief: Best bang for the buck
Best bang for the buck
Best bang for the buck

Introducing the next-gen of
MJ-L series LED systems

Built-in lens for maximum spread and optimal color blending

Best suited for 16"-24" tanks (40-60cm)

L260L290 46

Best suited for 16"-24" tanks (40-60cm)

L260L290 46

Best suited for 18"-32" tanks (45-80cm)

L260L290 48

Best suited for 18"-32" tanks (45-80cm)

L260L290 48

Revamped selection of LED chips to provide the best blue spectrum of colors for your corals

Revamped selection of LED chips to provide the best blue spectrum of colors for your corals

Overhauled structural design for superb performance

  • Cloud enabled

  • Full blue spectrum

  • Multi-Phase color temperature

  • Moon light with lunar cycle

  • Acclimation mode

  • Profiles sharing

  • Device grouping

  • Active cooling system

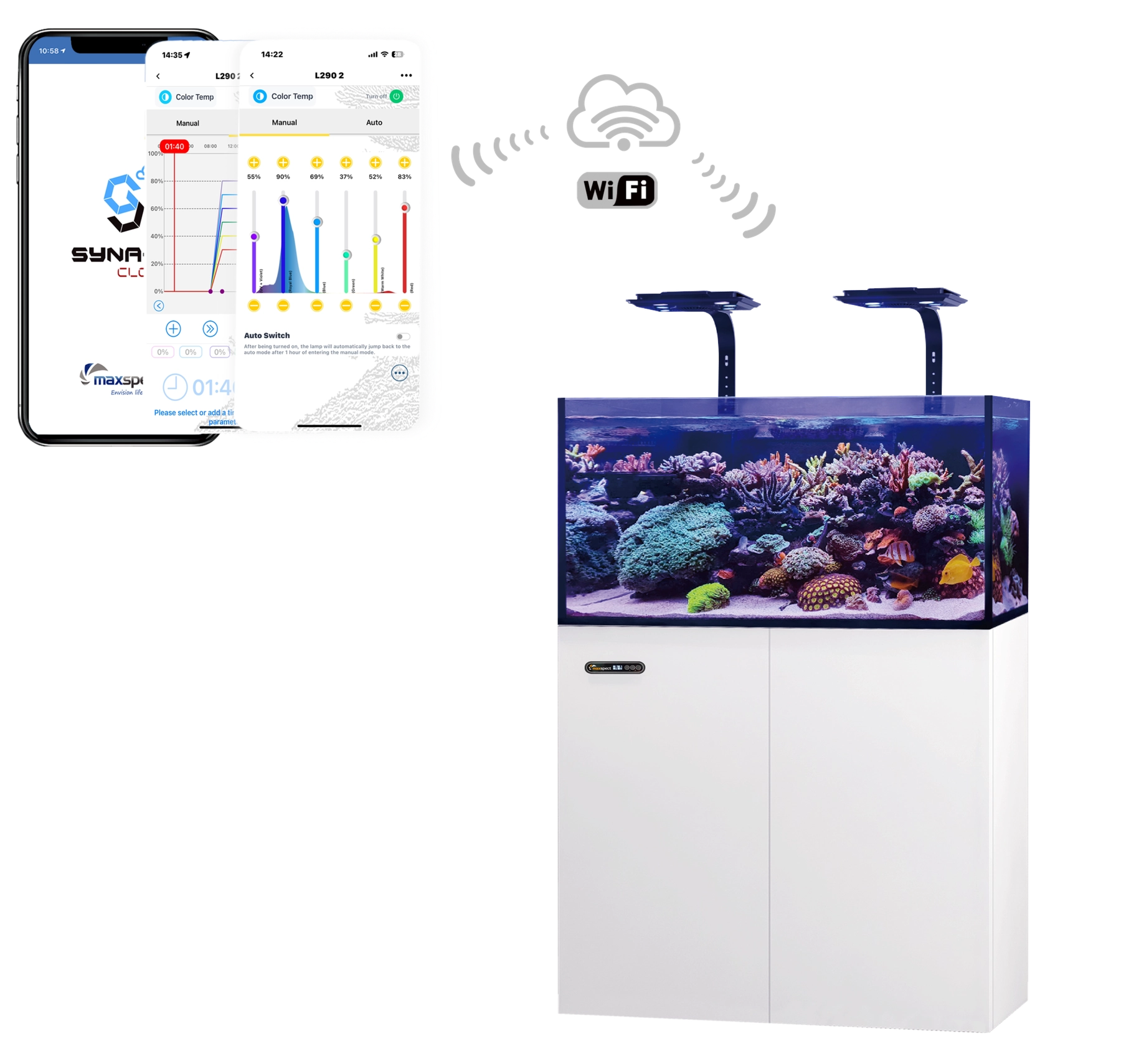

Cloud enabled with Syna-G Cloud app support

  • L 260 L 290 2

  • L 260 L 290 3

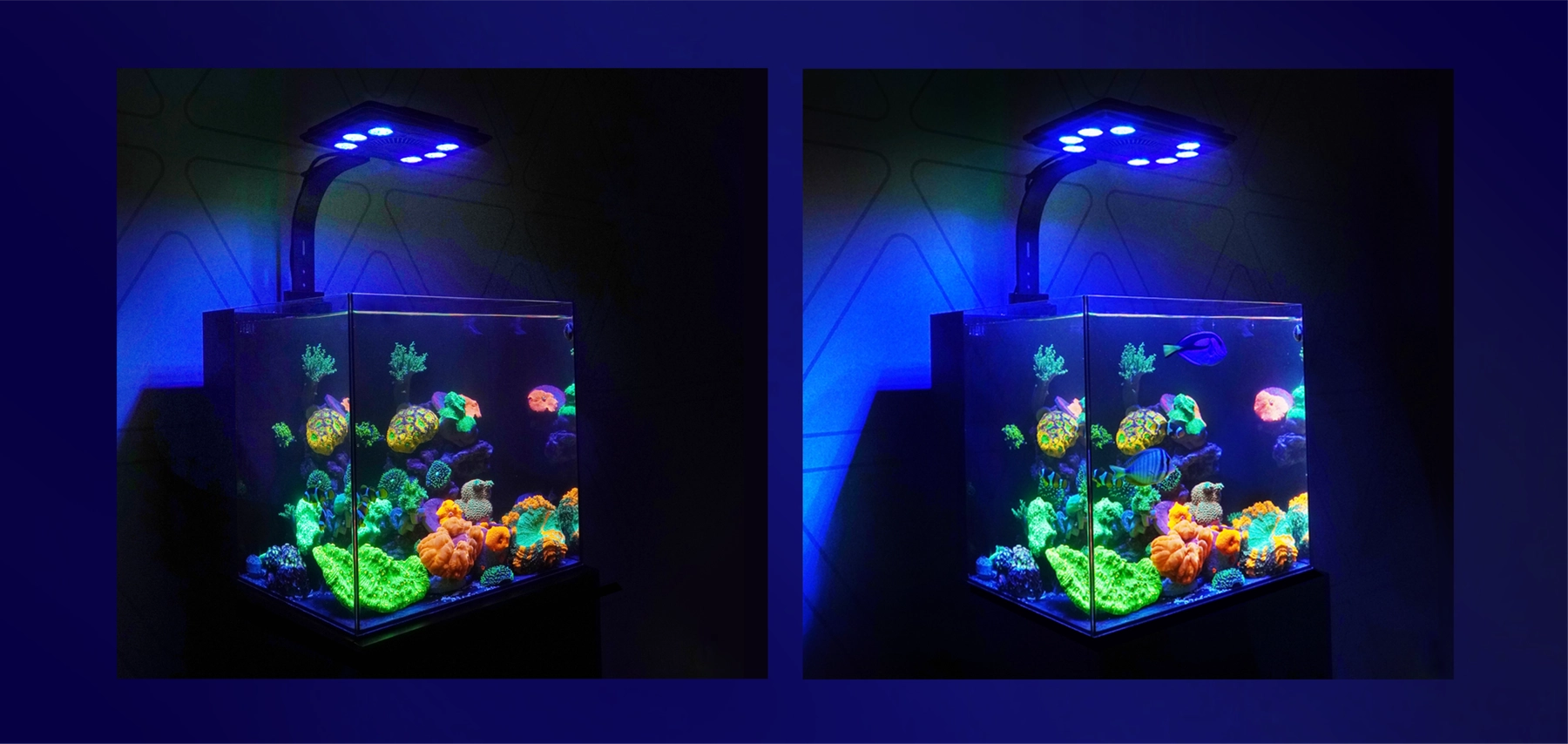

Giving your corals that special "pop"!

Full-Spectrum with Multi-Phase Color Temperature Technology

With our propietary technology, the Maxspect JumpLED lighting system can be easily reconfigured to different color spectrums without sacrificing performance!

  • L 260 L 290 31

    • Other LED systems sacrifice up to 40% of their performance when adjusting to other color temperature

  • L 260 L 290 32

    • Maxspect Jump LED operates at between 95-100% of maximum efficiency between color profiles
Lamp bead arrangement diagram

  • MJ-L260 Lamp beads

    Channel Color Wave
    length    		 Quantity
    A UV 390-400nm 2
    Violet 410-420nm 2
    Deep Blue 435-440nm 2
    B Royal Blue 445-455nm 6
    C Light Blue 465-470nm 6
    D Green 520-525nm 6
    E Warm White 2800-3000K 6
    F Red 660-665nm 6

  • MJ-L290 Lamp beads

    Channel Color Wave
    length    		 Quantity
    A UV 390-400nm 2
    Violet 410-420nm 2
    Deep Blue 435-440nm 4
    B Royal Blue 445-455nm 8
    C Light Blue 465-470nm 8
    D Green 520-525nm 8
    E Warm White 2800-3000K 8
    F Red 660-665nm 8
Multilevel spectral mode

Multiple spectral modes can better restore natural light, which helps the stable growth of corals and fish.

  • L 260 L 290 28

  • L 260 L 290 27

MJ-L 260 PAR value chart of seawater lamp system, distance between lamp and test point: 60cm Data Analysis is shown in the figure

  • Maxspect Jump L-Series LED Lighting System L260 PAR Distribution, 60cm/24in above
  • Maxspect Jump L-Series LED Lighting System L260 PAR Distribution, 60cm/24in above

MJ-L 290 PAR value chart of seawater lamp system, distance between lamp and test point: 60cm Data Analysis as shown in the figure

  • Maxspect Jump L-Series LED Lighting System L290 PAR Distribution, 60cm/24in above
  • Maxspect Jump L-Series LED Lighting System L290 PAR Distribution, 60cm/24in above
Coral growth timelapse

  • L 260 L 290 15

  • L 260 L 290 20

  • L 260 L 290 19

Acropora Nana thriving under the SPS Thrive AB+ spectrum for 6 months.

  • L 260 L 290 18

  • L 260 L 290 17

  • L 260 L 290 16

Accelerated growth rate, healthy polyp extension and enhanced coloration can be observed.

Lunar cycle

Moonlight with Automated Lunar Cycle

Acclimation schedule for your corals to adapt to the new light

The all-new Syna-G Cloud platform allows you to remote control your LED system around the world

Technological innovation, network distribution is really fast

Smart cooling system

Mounting system

Diffuser Hood

(Sold separately)

  • Mjl 260 Diff

  • Mjl 290 Diff

Specifications
Bracket parts

The thickness of the bracket can be clamped within 10-20mm

Bracket parts

The thickness of the bracket can be clamped within 10-20mm

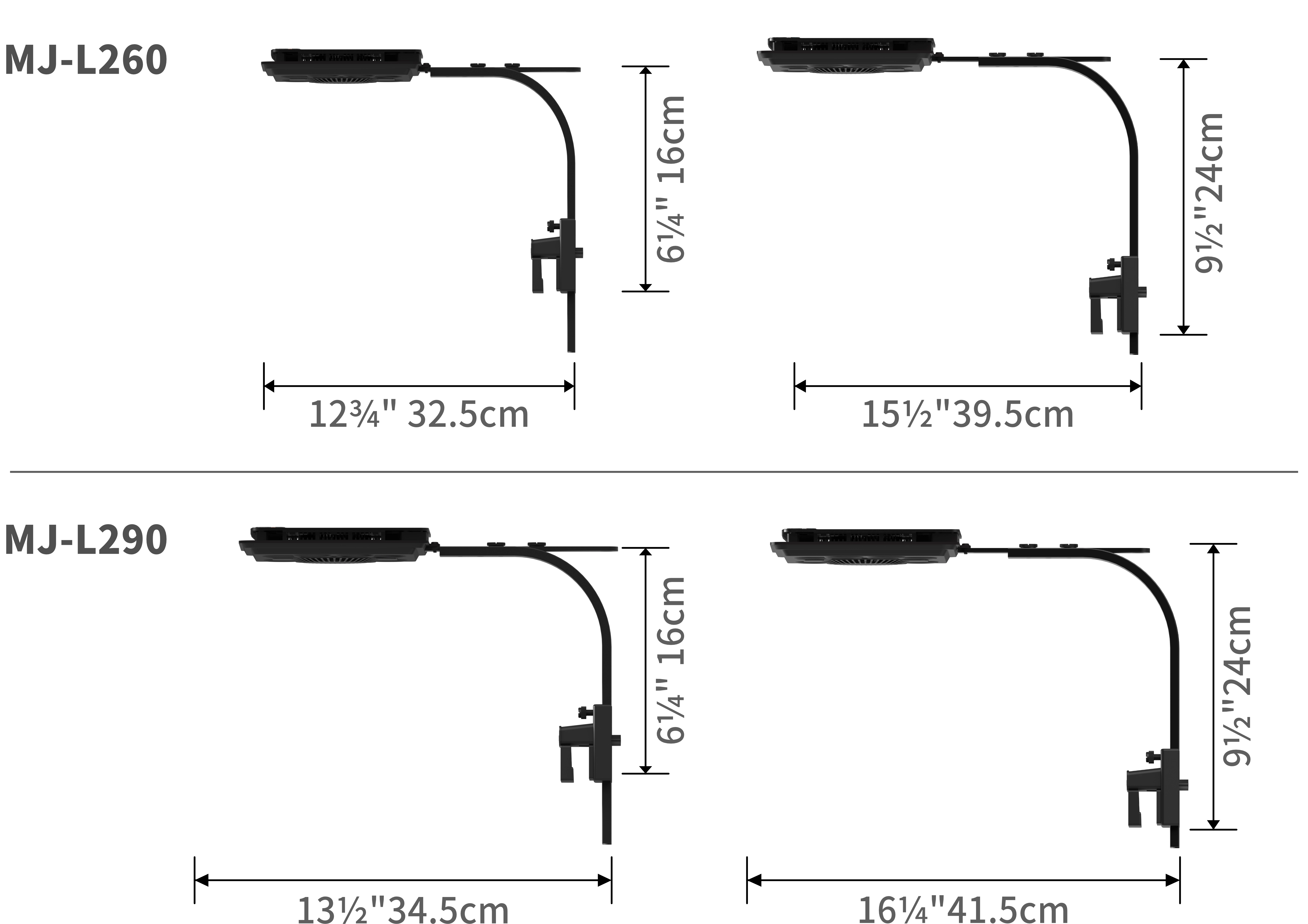

Support assembly plan and specifications

Model MJ-L260 MJ-L290
PSU Rate Power 66w 96w
LED Rate Power 63w 93w
Suit for Tank 16"-24"
40-60cm		 18"-32"
45-80cm
Weight (LED Module) 871g 1065g
Dimension
(Stand not included)		 8¾"x7"x1½"
222x176x32mm		 9¾"x7¾"x1½"
246x197x32mm

MJ-L

Read more …MJ-L260&290

  • Hits: 11227

Written by Steven on . Posted in Jump Series.

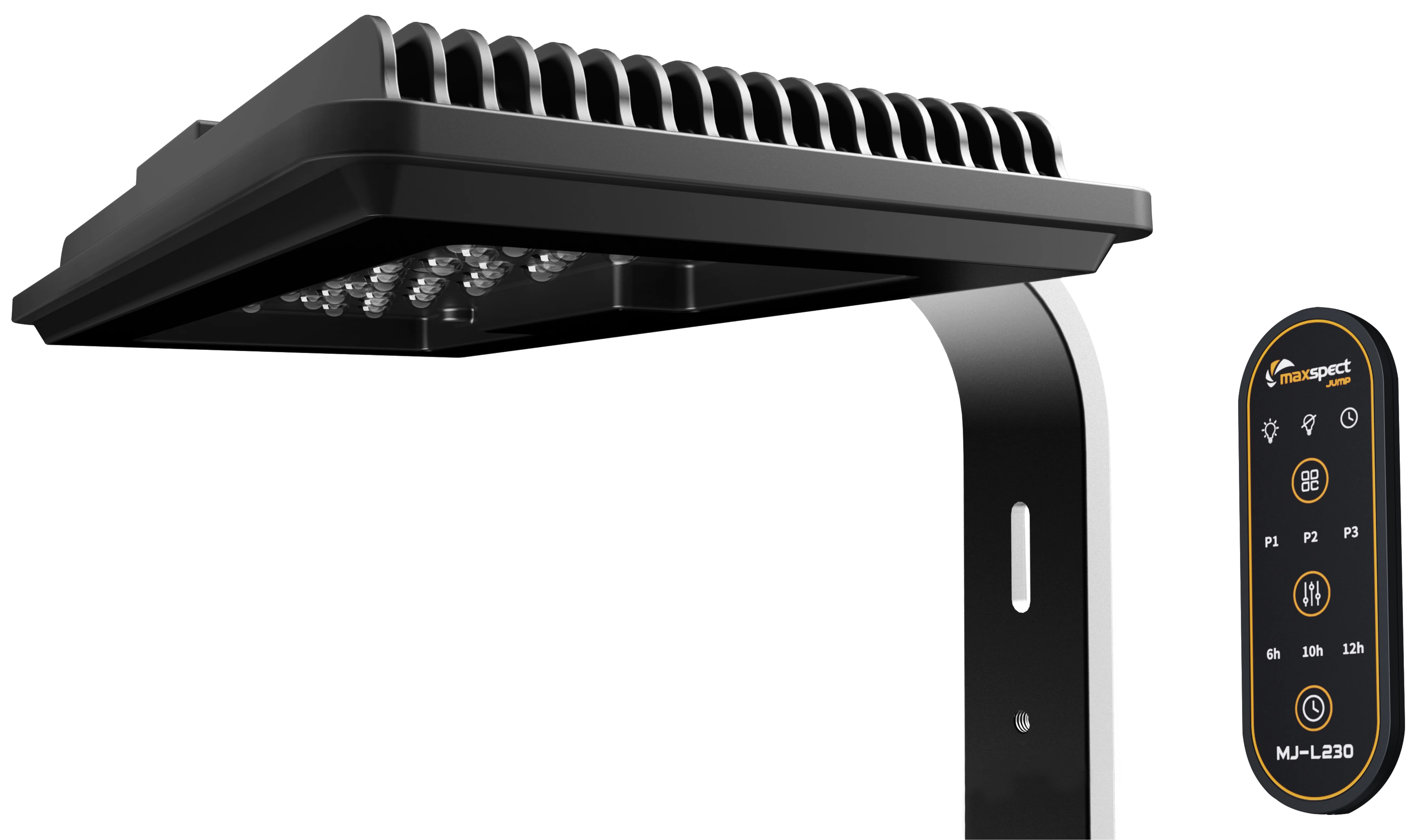

MJ-L230(R)

  • Brief: Small Size, Big Impact

Small Size, Big Impact

The Jump Series MJ-L230 LED system, feature-packed brilliance.

Sleek full aluminum, matte-finished body – Premium style for your aquarium.

Pure silence, powered by passive cooling excellence.

MJ-L230 Lamp Beads Layout

Color Wavelength Quantity
Sky Blue 465 - 470nm 15
Deep Blue 450 - 455nm 24
Cool White 9000 - 11000K 2
Violet 395 - 400nm 1
Ultra Violet 410 - 420nm 1

Multi-Phase Color Temperature Technology

  • 230 04

  • 230 05

  • 230 06

Adjustable dawn/dusk durations:

6 hours, 10 hours or 12 hours

  • 230 07 01

  • 230 07 02

  • 230 07 03

Stimulate algae growth with optimized
red/blue spectrum

Stimulate algae growth with optimized red/blue spectrum

  • Optimize spectrum for algae growth.
  • Enhance light efficiency for vibrant algae.
  • Control duration to regulate nutrient balance.

MJ-L230R Lamp Beads Layout

Color Wavelength Quantity
Hyper Red 660 - 665nm 24
Deep Blue 450 - 455nm 15
Cool White 6500 - 7000K 4

Multi-Phase Color Temperature Technology

  • 230 11

  • 230 12

  • 230 13

  • 230 14 01

  • 230 14 02

  • 230 14 03

  • 230 20 01

  • 230 20 02



Model MJ-L230 MJ-L230R
Rate Power 30W
Chip Details Sky Blue 465-470nm 15
Deep Blue 450-455nm 24 Hyper Red 660-665nm 24
Cool White 9000-11000K 2 Deep Blue 450-455nm 15
Violet 410-420nm 1 Cool White 9000-11000K 4
Ultra Violet 390-400nm 1
Lens 90 Degree High Transparency Acrylic Array
Control In-Line Controller
Timing 6/10/12 Hours
Suit for Tank 11¾" - 19½" (30-50cm)
Glass Thickness ½" (12mm)
Unit Dimension 9½" x 4¾" x 1¼" (242x124x28.5mm)
Unit Weight 1.86lbs(845g)
Input 24V1.5A



Grow algae quietly with efficient passive cooling technology

  • Three photo-period programs to choose from.

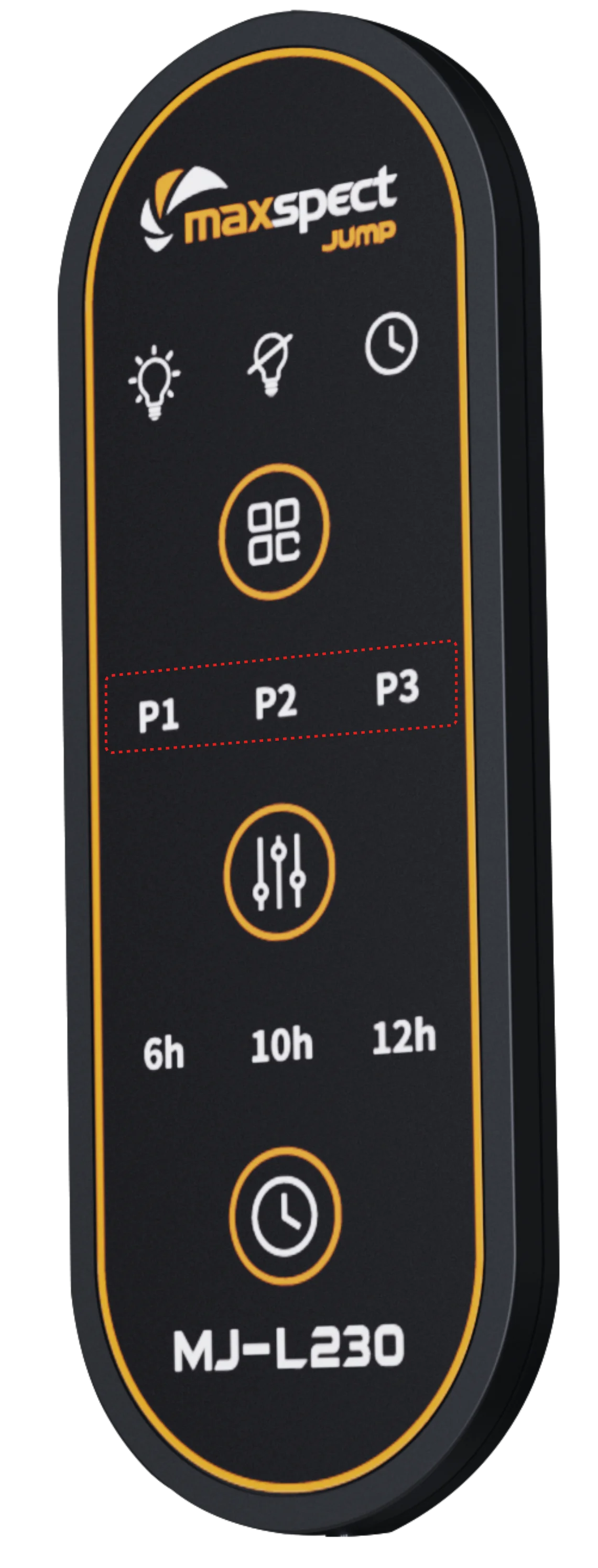

  • Inline controller with multiple one-touch photoperiod programs.

  • 230 19

  • 230 20

MJ-L

Read more …MJ-L230(R)

  • Hits: 3094
